Description
Crestron TSS-1070 Overview
The Crestron TSS-1070-T-B-S-LB 10" WUXGA Touchscreen Monitor with Light Bar Kit for Microsoft Teams is designed to enhance and simplify room scheduling across an enterprise. It installs near a meeting space to provide scheduling functions and a clear indication of availability via the touch display and included light bar. This model is intended for use in Crestron Enterprise systems, and integrates seamlessly with the Microsoft Teams Panels scheduling application.
Microsoft Teams Panels
The native Microsoft Teams Panels scheduling application helps to maximize productivity and manage usage for meeting spaces via Microsoft Teams. The touch screen can be configured to use the Microsoft Teams scheduling calendar, allowing users to book meetings through their Microsoft Teams account. If desired, the room can be reserved on the spot for an ad hoc meeting.
Built for Enterprise Scheduling Applications
The TSS-1070 is engineered to meet the demands of a corporate office, conference center, or education environment. It is a compact unit for scheduling applications that mounts over a standard electrical box or cutout. It is purpose-built for permanent installation and years of reliable 24/7 operation in a commercial environment. To ensure the latest features are available, the TSS-1070 checks nightly for app updates and loads the latest version automatically.
Network Connectivity for Power, Data & Control
The TSS-1070 offers high-speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected to the network over Wi-Fi communications via a local wireless access point. The TSS-1070 features cloud-based provisioning and management, which streamlines configuring, monitoring, and updating the touch screen on the network. The TSS-1070 also supports SNMP, so it can be monitored by your IT administrator.
Light Bar Indicator

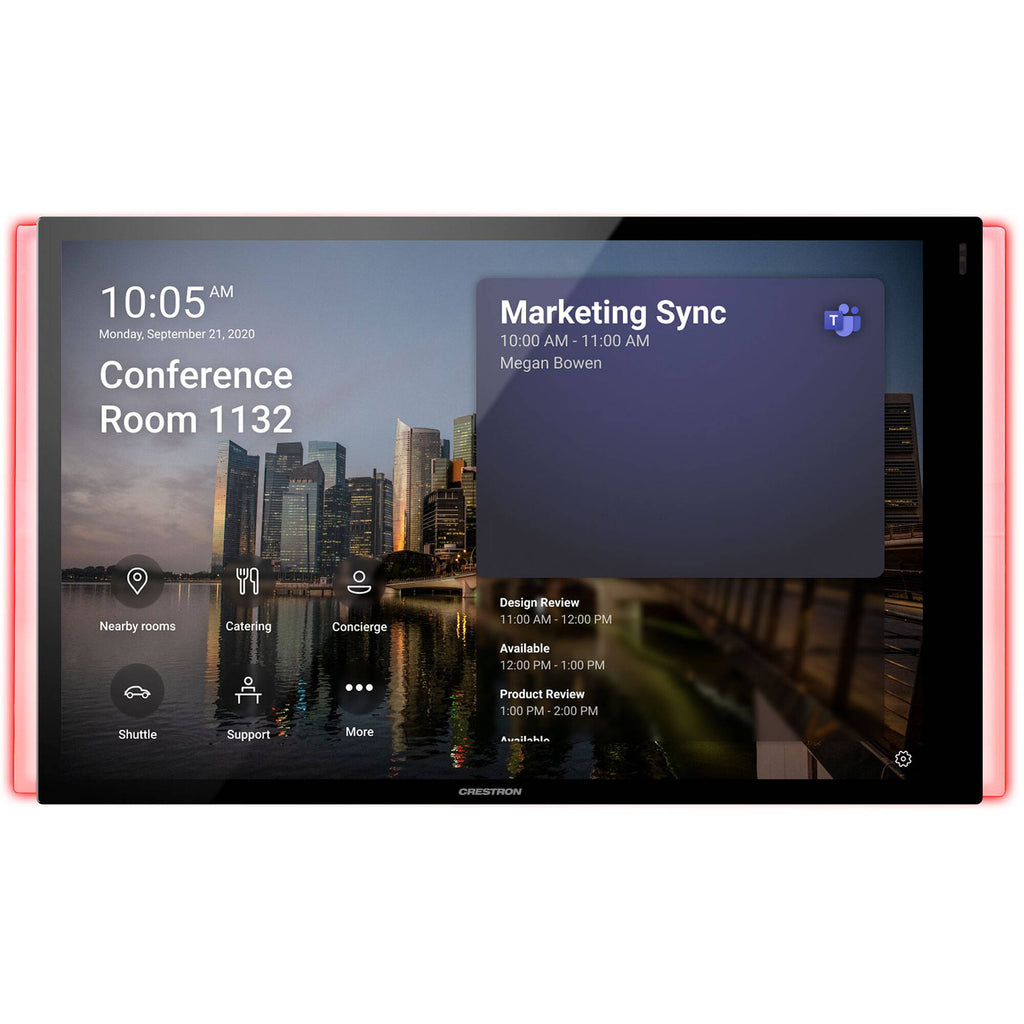

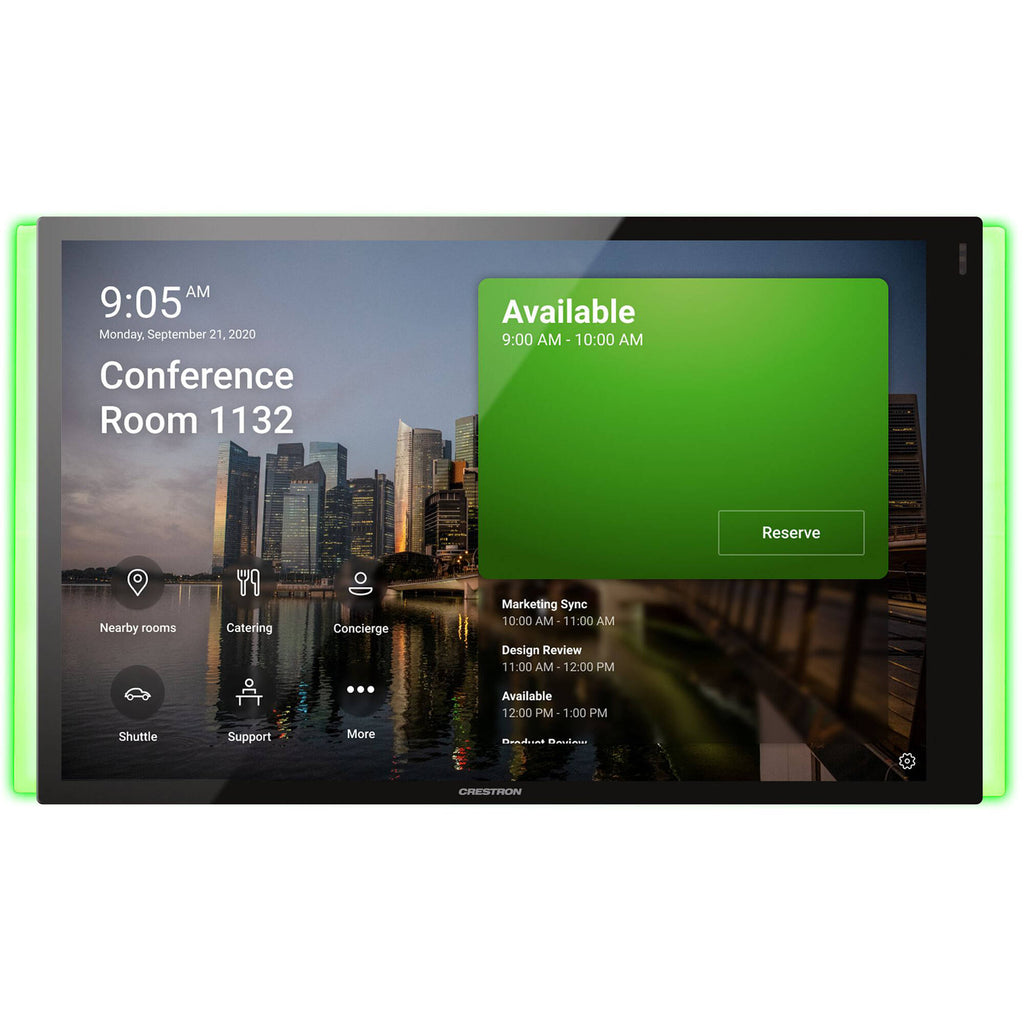

The included TSW-1070-LB series light bar provides a 180° visual indication of a room�s availability status, illuminating green if the room is available and red when reserved, with options for custom color mixing and programming.
Bluetooth Beacon
The built-in Bluetooth proximity detection beacon works with the Crestron Go App and Crestron App to determine when a mobile device is in or near the same room as the beacon, and signals the mobile app to automatically display the appropriate controls and information for the room.
Additional Features
- Drywall, masonry, glass, mullions, and other surface mounts available separately
- Secure with 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration
- Proximity sensor and automatic brightness controls
- Dual USB 2.0 ports for room availability accessories
- Compatible with XiO Cloud service
Items Included
- Crestron TSS-1070-T-B-S-LB 10" Touchscreen Room Scheduling Monitor with Light Bar Kit for Microsoft Teams (Black)
- TSW-1070-LB Light Bar
- Mounting Bracket
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Crestron TSS-1070 Specs
Key Specs
| Display Size |
10.1"
|
| Panel Type |
TFT LCD
|
| Native Resolution |
1920 x 1200
|
| Maximum Brightness |
400 nits / cd/m2
|
| HDR Support |
No
|
| Touchscreen |
Yes, Projected Capacitive
|
| Outputs |
No
|
| USB I/O |
2x USB-A 3.0 / 3.1/3.2 Gen 1
|
Display
| Display Size |
10.1"
|
| Panel Type |
TFT LCD
|
| Aspect Ratio |
16:10
|
| Native Resolution |
1920 x 1200
|
| Maximum Brightness |
400 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
1000:1
|
| Refresh Rate |
60 Hz
|
| Variable Refresh Technology |
No
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| Viewing Angle (H x V) |
160 x 160°
|
Surface
| Touchscreen |
Yes, Projected Capacitive
|
Connectivity
| Outputs |
No
|
| HDCP Support |
No
|
| Wireless |
Wi-Fi / Bluetooth
|
| USB I/O |
2x USB-A 3.0 / 3.1/3.2 Gen 1
|
| Ethernet I/O |
1x RJ45
|
Speaker
| Built-In Speakers |
Yes
|
Electrical
| Power Adapter Type |
External
|
General
| Operating Conditions |
41 to 104°F / 5 to 40°C at 10 to 90% Humidity
|
| Certifications |
CE, FCC Part 15 Class B, IC
|
| Lock Slot |
No
|
| Dimensions |
10.2 x 5.9 x 2.3" / 259 x 149 x 58 mm
|
| Weight |
1.61 lb / 0.73 kg
|
