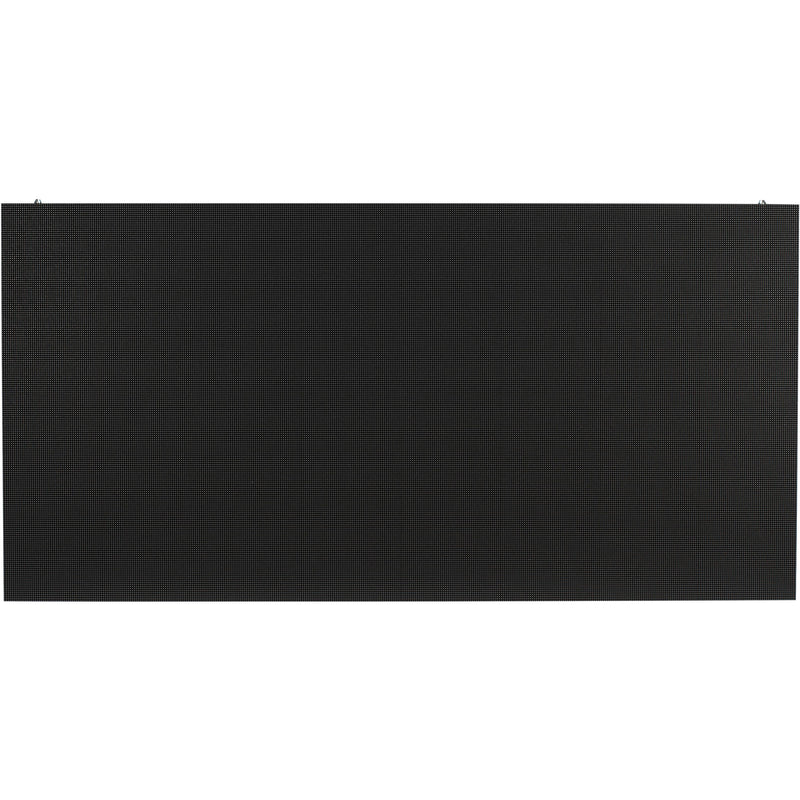

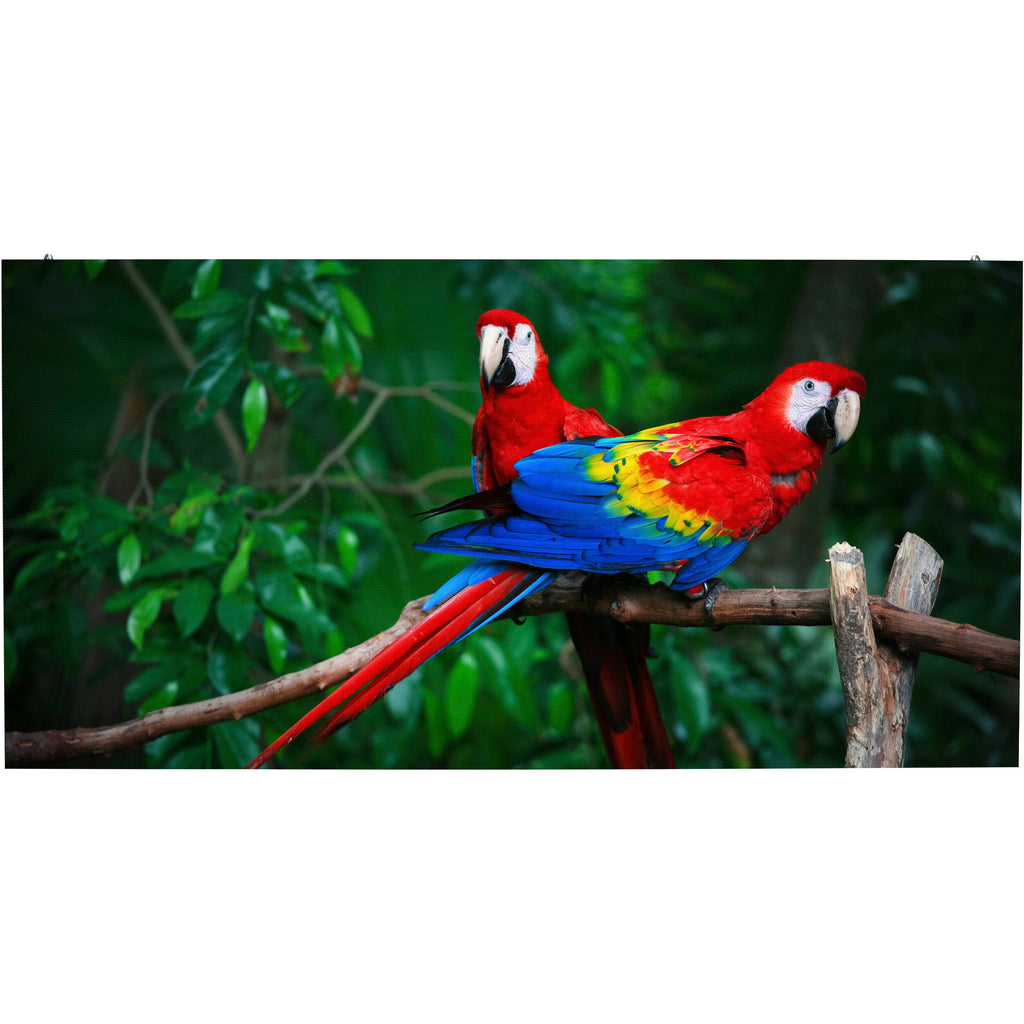

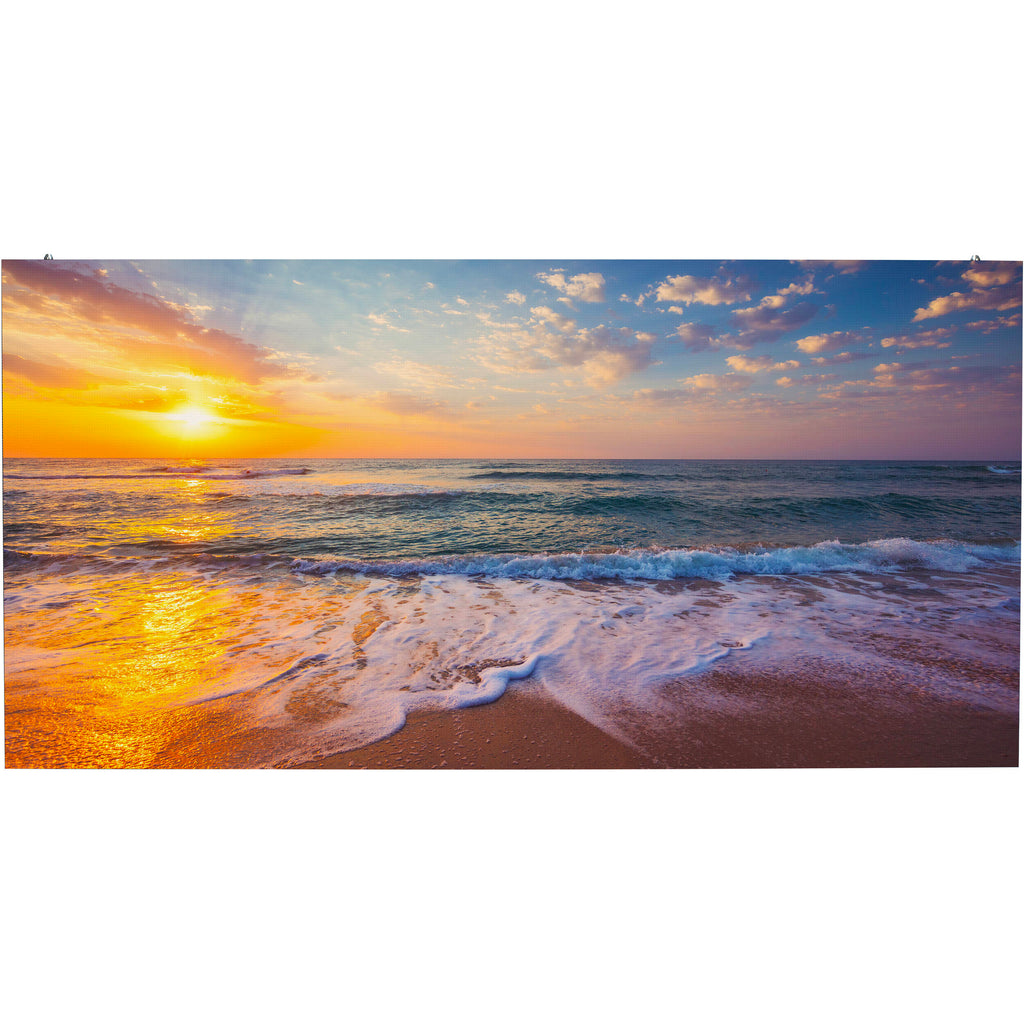

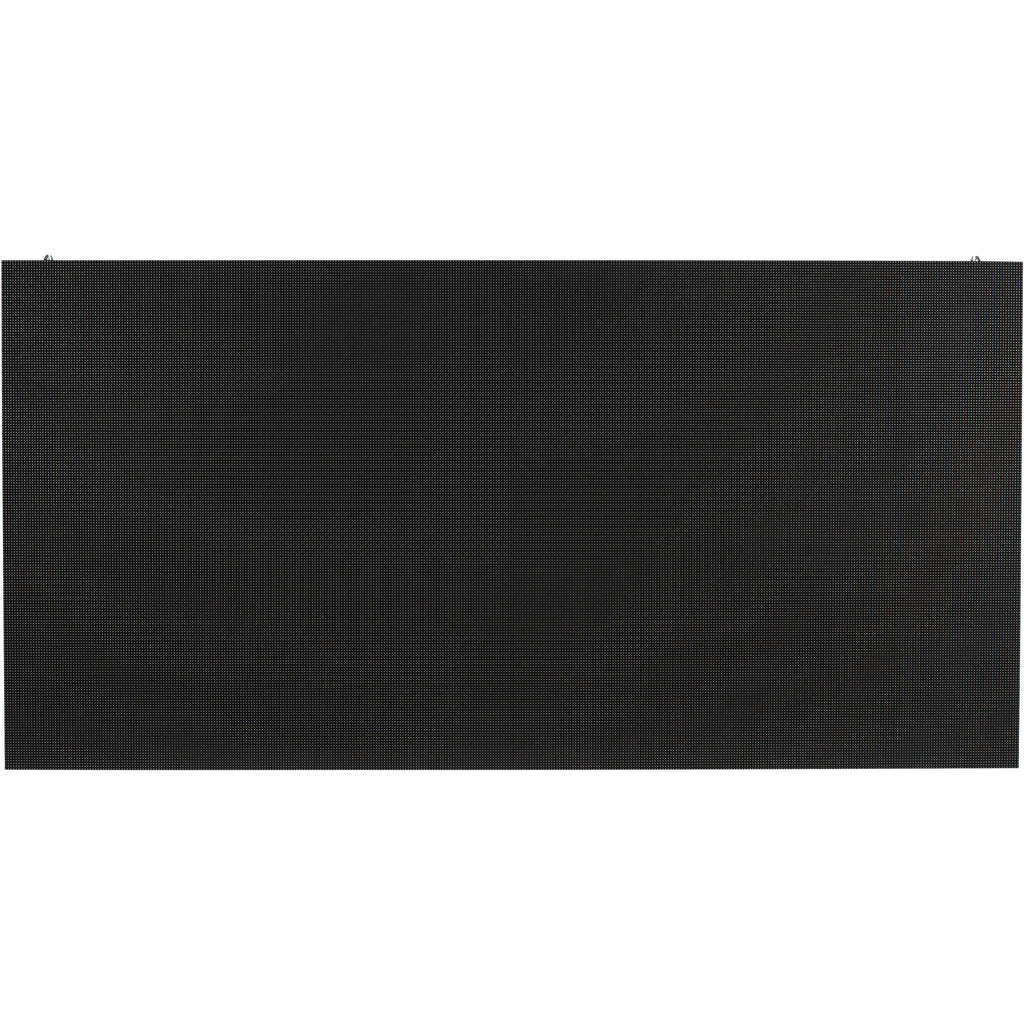

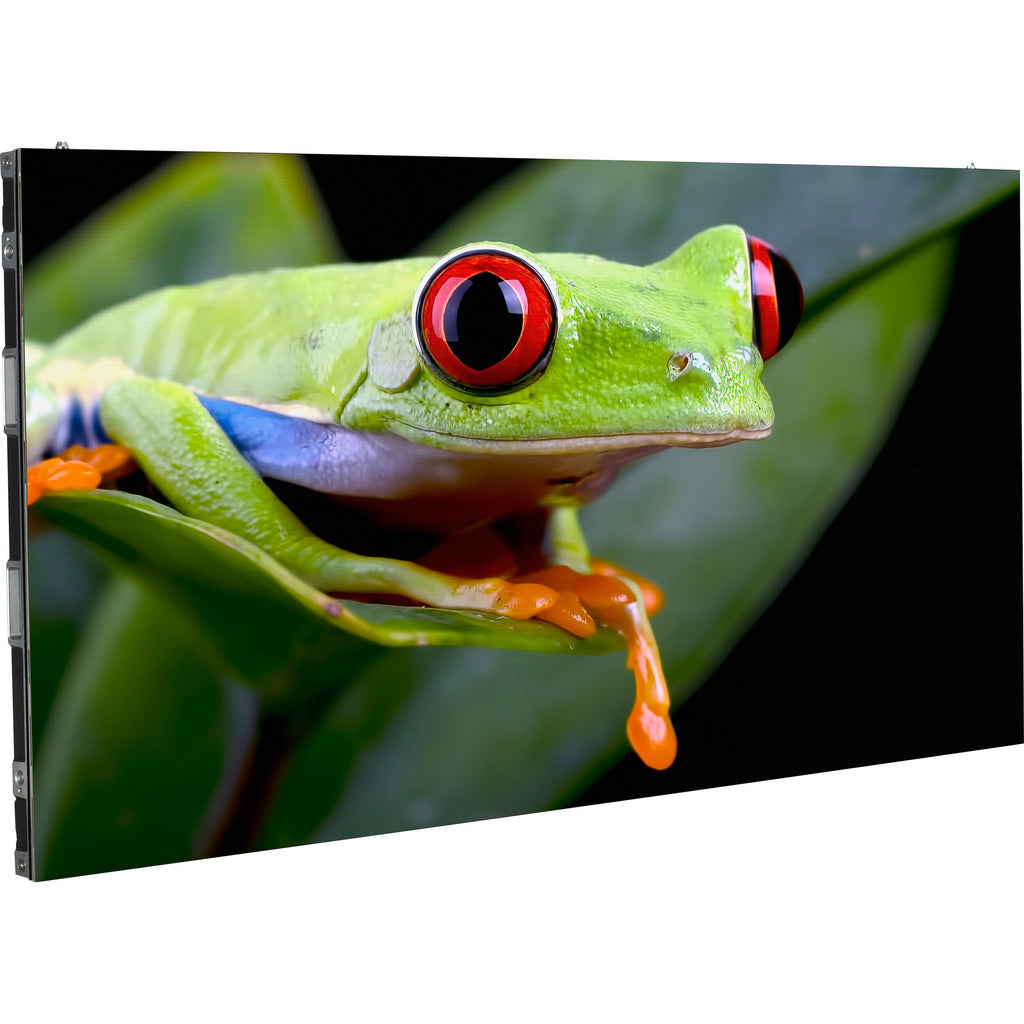

American DJ WMS2 2.6mm Pixel Pitch LED Video Wall Panel

Suitable for a Variety of Display Options

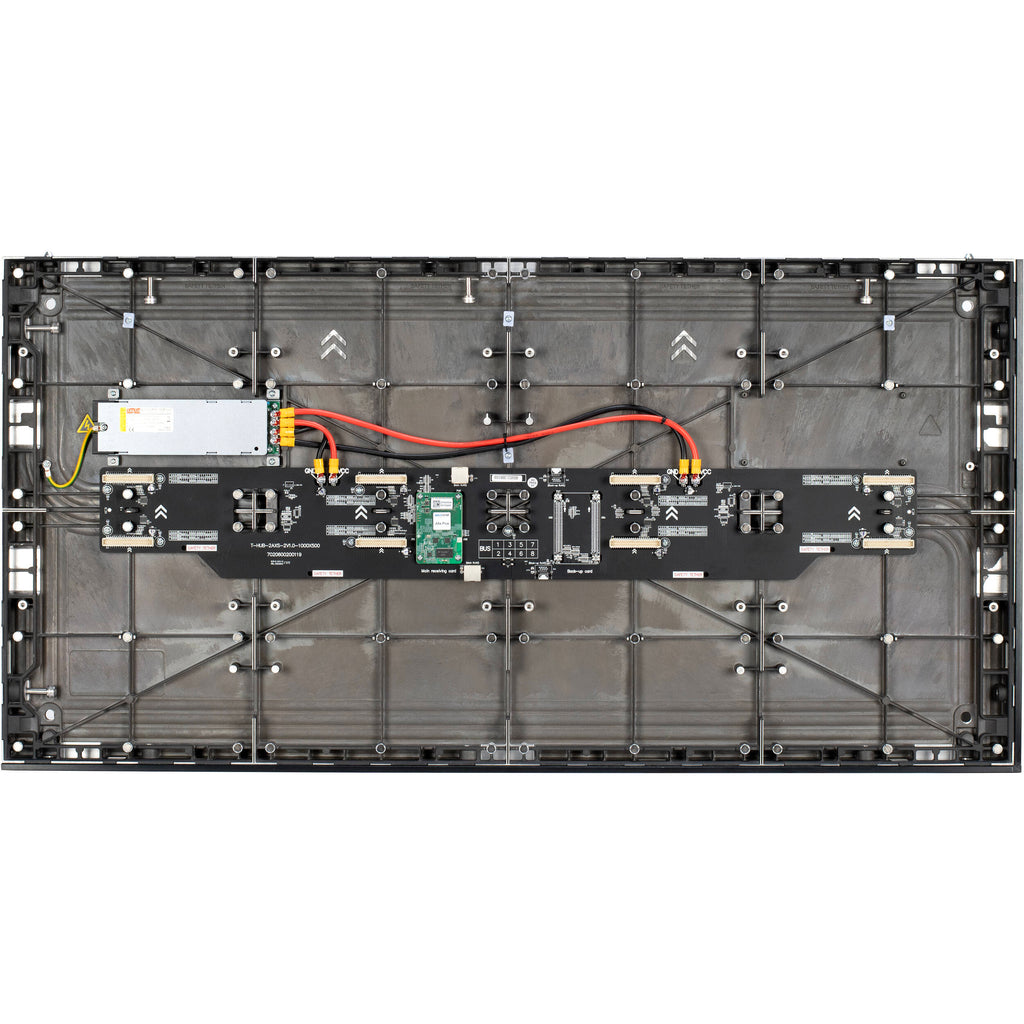

The WMS2 is perfectly suited for integration applications, including shop window displays, museums, boardrooms, digital signage, and entertainment venues, this video panel is a versatile solution for immersive visual experiences. A Novastar A8s-N receiving card is built-in allowing the WMS2 to be displayed horizontally or vertically when wall mounting.

High Resolution, Brightness, and Contrast

Boasting a pixel pitch of 2.6mm and a pixel density of 147,456 /m2, the WMS2 guarantees exceptional definition, even at close viewing distances. The RGB SMD1515 color mixing LEDs produce a vibrant spectrum, supported by a brightness of 800 nits. With a wide viewing angle of 160-degrees (horizontal) by 140-degrees (vertical) and a rapid pixel refresh rate of 3840 Hz, this video panel ensures a captivating and smooth visual performance.

Wide Scalability and Easy Serviceability

Measuring 39.3 x 19.9�, the WMS2 consists of eight individual modules, each with 96 x 96 pixels, offering flexibility in arrangement. Each panel�s overall resolution is 384 x 192 pixels. The panel�s frame assembly features a secure locking mechanism, allowing for the seamless joining of adjacent panels. Installation is simplified with mounting points for direct wall installation. The front-serviceable design enables easy module replacement, ensuring uninterrupted operation. The maximum number of panels that can be linked is 15 panels in the vertical direction. There is no limit on the number of panels that can be linked in the horizontal direction.

Flexible Installation

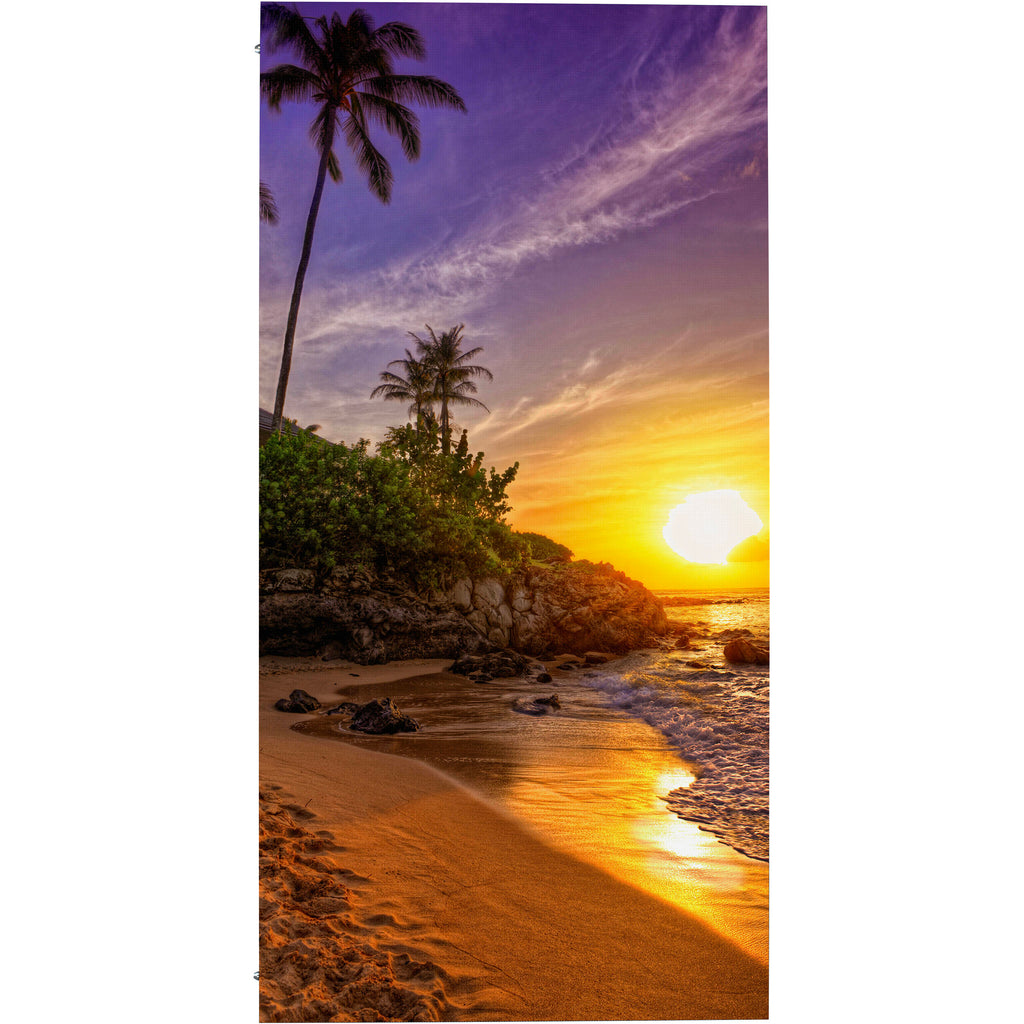

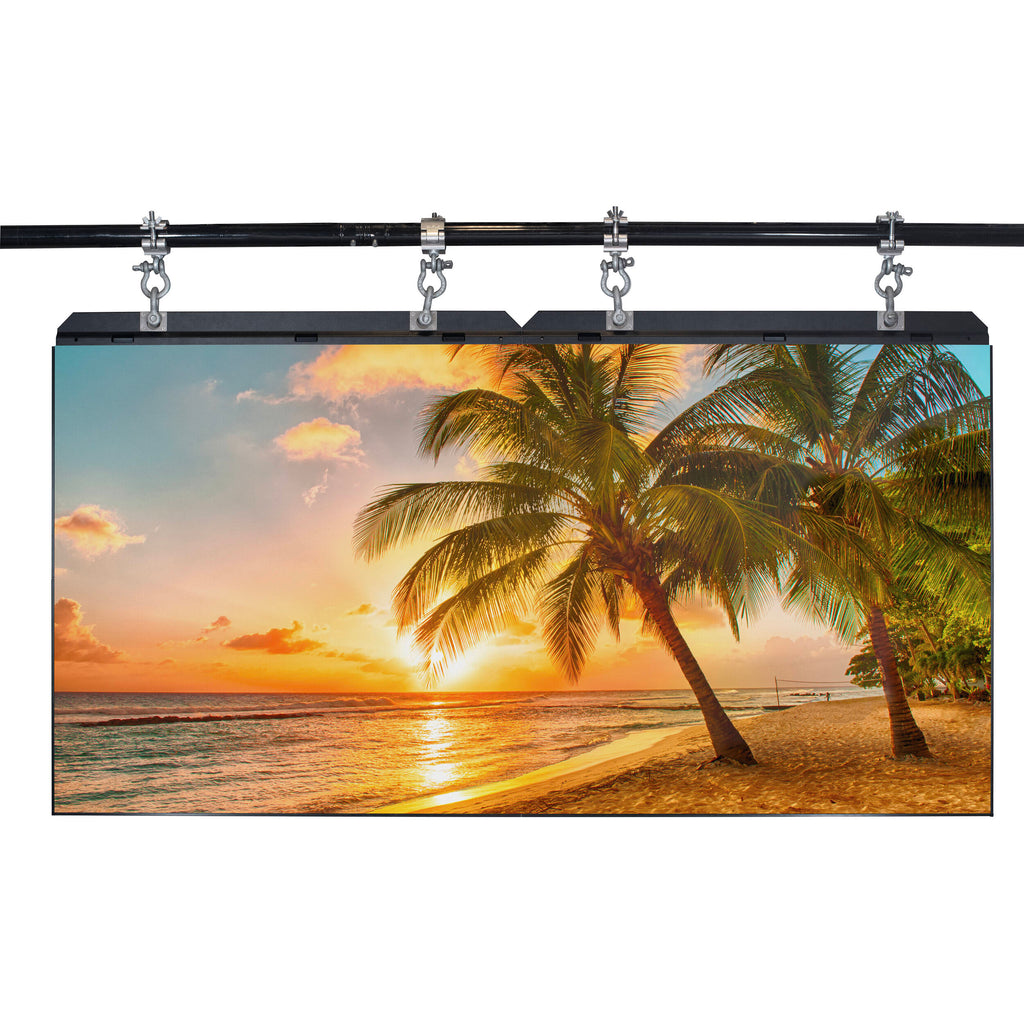

With a slim 1.3� thickness and a weight of 21 lb, the WMS2 is a lightweight and compact solution. Its versatility extends to wall-mounting, hanging, or stacking, both horizontally or vertically, catering to various installation preferences.

American DJ WMS2 Specs

Display Size	44"
Native Resolution	384 x 192
Maximum Brightness	800 nits / cd/m2
Inputs	1x Proprietary
Outputs	1x Proprietary
USB I/O	No
Ethernet I/O	No

Display Size	44"
Panel Type	Direct View LED
Aspect Ratio	2:1
Native Resolution	384 x 192
Maximum Brightness	800 nits / cd/m2
Viewing Angle (H x V)	160 x 140°
Screen Area	39.4 x 19.7" / 1000 x 500 mm
Pixels Per Inch (ppi)	10 ppi

Inputs	1x Proprietary
Outputs	1x Proprietary
HDCP Support	No
Wireless	No
USB I/O	No
Ethernet I/O	No
Other I/O	No
Built-In Speakers	No
Mobile App Compatible	No
Media Card Reader	No

Power Consumption	Typical: 140.0 W
Input Power	100 to 240 VAC, 50 / 60 Hz

Operating Conditions	-4 to 104°F / -20 to 40°C at 10 to 90% Humidity
Storage Conditions	-40 to 176°F / -40 to 80°C
Certifications	ETL
Mounting-Hole Pattern	No
Lighting Lifespan	50000 Hours
Environmental Resistance	Dust-Resistant (IP20)
Duty Cycle	24 Hours / 7 Days
Dimensions	39.4 x 19.7 x 1.3" / 1000 x 500 x 33 mm
Weight	20.9 lb / 9.5 kg
