₹ 1560.94 includes GST and import duties. | |
B2B customers can avail ₹ 238.04 ITC on this product | |
100% Secure Payments | 100% Genuine product |
Description
The MC100EL1648DG is a voltage-controlled Oscillator Amplifier requires an external parallel tank circuit consisting of the inductor and capacitor. A varactor diode may be incorporated into the tank circuit to provide a voltage variable input for the oscillator (VCO). This device may also be used in many other applications requiring a fixed frequency clock. The MC100EL1648 is ideal in applications requiring a local oscillator, systems that include electronic test equipment and digital high-speed telecommunications. The MC100EL1648 is based on the VCO circuit topology of the MC1648. The MC100EL1648 uses advanced bipolar process technology which results in a design which can operate at an extended frequency range. The ECL output circuitry of the MC100EL1648 is not a traditional open emitter output structure and instead has an on-chip termination emitter resistor, RE, with a nominal value of 510R. This facilitates direct ac-coupling of the output signal into a transmission line.
- 6pF Typical input capacitance
- 19mA at 5VDC Low-power supply
Applications
Clock & Timing
Product details
Supply Voltage Max | 5.5V |
Frequency | 1.1GHz |
Packaging | Each |
Operating Temperature Min | -40�C |
Product Range | - |
Supply Voltage Min | 4.2V |

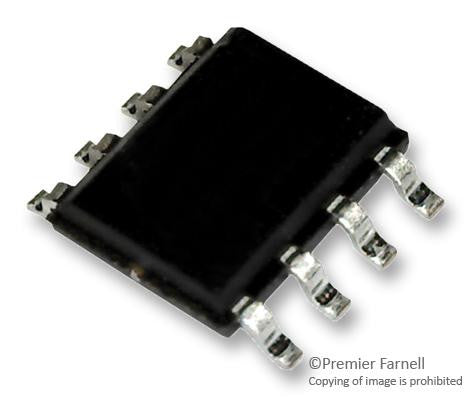

Digital IC Case | SOIC |
Operating Temperature Max | 85�C |
No. of Pins | 8Pins |
MSL | - |
Other details
Brand | ON SEMICONDUCTOR |
Part Number | MC100EL1648DG |
Quantity | Each |
Technical Data Sheet EN | ![]() |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
Quantity | Price |
2 | ₹ 1529.72 |
3-5 | ₹ 1514.11 |
5-10 | ₹ 1482.89 |
10+ | ₹ 1451.67 |
Bulk discount will be automatically applied during checkout based on quantity.
