Description

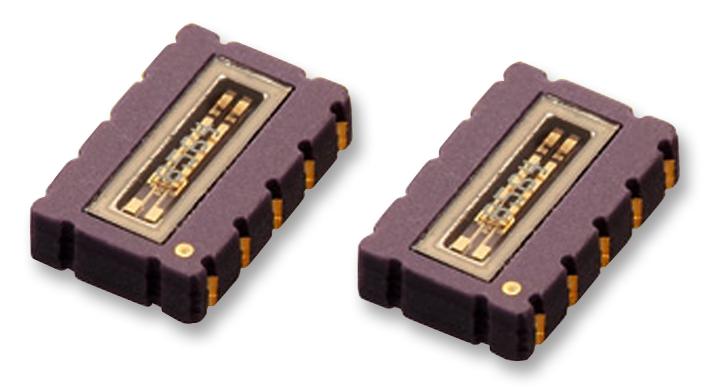

The RV-3049-C2 OPTION B is a Real Time Clock Module with SPI-bus. This RTC has an 4-wire serial interface and offers temperature compensated time. The STC-smart temperature compensation is calibrated in the factory and leads to a very high time-accuracy of ± 6ppm. Beside standard RTC functions, it includes a Backup-Battery Input with internal switchover function, a programmable Trickle-charge circuitry, an integrated temperature sensor with digital-output and offers 8bytes RAM and 2 Bytes EEPROM for customers application.
- Extremely accurate RTC module with embedded Xtal
- Temperature compensation
Applications
Clock & Timing, Communications & Networking
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Date Format: DD:MM:YYYY |
| Clock Format: HH:MM:SS |
| Clock IC Type: RTC |
| Supply Voltage Min: 1.3V |
| Supply Voltage Max: 5.5V |
| Clock IC Case Style: SON |
| No. of Pins: 10Pins |
| IC Interface Type: 4 Wire, SPI |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: - |
| Automotive Qualification Standard: - |
| MSL: - |
Other details
| Brand | MICRO CRYSTAL |
| Part Number | RV-3049-C2 OPTION B |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
