Description
Product Overview

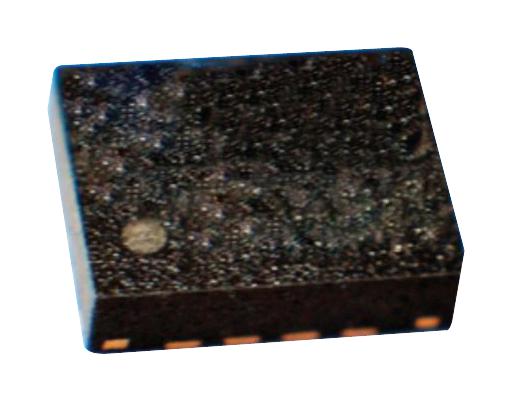

AB-557-03-HCHC-F-L-C-T is a AB-557-03 series crystal-less PCI express dual output ultra miniature PURE SILICON� SMD clock generator. It meets PCIe Gen1, Gen2, and Gen3 specs. It has high performance MEMS technology by discera. It features low power consumption and excellent shock and vibration immunity. It is used in applications such as solid state storage, storage area networks, passive optical networks, ethernet: 1G, 10GBASE-T/KR/LR/SR, and FCoE, TV and other consumer electronics, industrial and medical, scanner, printer.
- 100MHz typical frequency, voltage range from 2.25V to 3.6V
- Overall frequency stability is ±50ppm
- Supply current (enabled) is 60mA typical at (RL=50 ohm, F01=F02=100.00MHz)
- Startup time is 5ms maximum
- Rise time is 400ps maximum at (RL=50 ohm, CL=2pF), fall time is 400ps maximum at (20% to 80%)
- Duty cycle is 52% maximum, period jitter is 2.5psRMS typical at (F01=F02=100.00MHz)
- HCSL output, 0:02 input output ratio, surface mount type
- Operating temperature range from -40°C to +85°C
- 750mV maximum peak to peak output swing
- 14-QFN package
Product details
Other details
| Brand | ABRACON |
| Part Number | AB-557-03-HCHC-F-L-C-T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
