Description
Product Overview

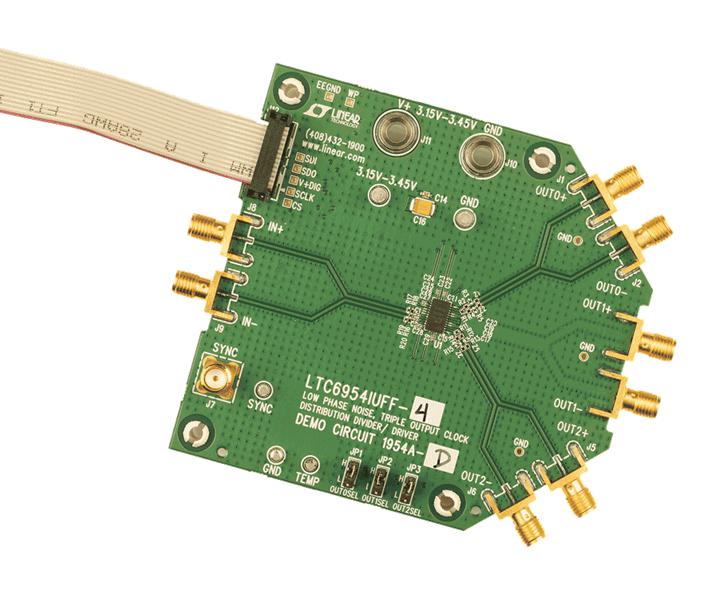

DC1954A-D demonstration circuit features the LTC®6954, a low phase noise, triple output clock distribution divider/driver. The DC1954A LVPECL outputs are AC-coupled 50 ohm transmission lines making them suitable for driving 50 ohm impedance instruments. The LVDS/CMOS outputs of the DC1954A are terminated with a 100 ohm differential resistor and are DC-coupled. All differential input and outputs have 0.5" spaced SMA connectors. The LTC6954�s EZSync� function is made available via a turret and an SMA connector. A DC590 USB serial controller board is used for SPI communication with the LTC6954, controlled by the supplied LTC6954-GUI software.
- LTC6954IUFF-4 low phase noise, triple output clock distribution divider/driver
- Three LVDS/CMOS outputs : OUT0+/-, OUT0+/-, LVDS/CMOS OUT2+/-
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC1954A-D |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 23044.56 |
| 3-5 | ₹ 22809.41 |
| 5-10 | ₹ 22339.12 |
| 10+ | ₹ 21868.82 |
Bulk discount will be automatically applied during checkout based on quantity.
