ANALOG DEVICES DC1075B-C Demonstration Board, HMC434E, Static Divider, Clock & Timing

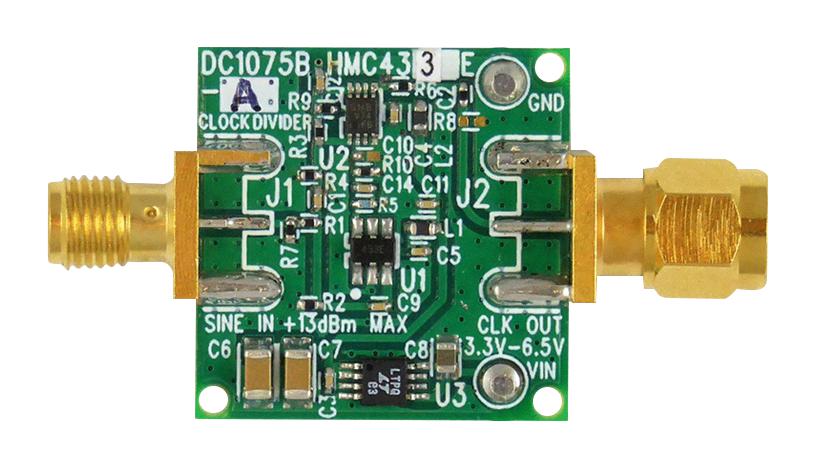

DC1075B-C demonstration circuit is a divide by 8 clock divider for use with high speed ADCs. Each assembly includes a clock divider followed by a re-timing stage used to produce sharp clock edges. Functionally, the DC1075B receives a high frequency sine wave which is attenuated and routed into the clock divider. The output of the clock divider is then routed to a D flip flop re-timing stage. This D flip flop is clocked by the original high frequency sine wave. This is critical to ensure signal integrity. The output of this re-timing stage is a CMOS signal suitable to be a clock source for high speed ADCs. This circuit also is a model for designs involving FPGAs which serve as clock dividers. Whenever this is done, a D flip flop re-timing stage is required to ensure a low jitter clock signal.

• HMC434E 0.2GHz to 8GHz, GaAs, HBT MMIC, divide by 8 prescaler
• 1300MHz maximum input frequency
