| ₹ 722.33 includes GST and import duties. | |
| B2B customers can avail ₹ 110.16 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

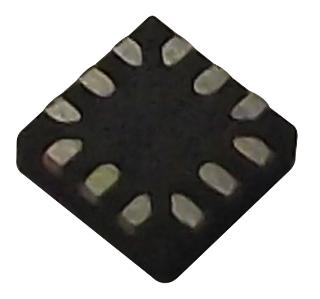

The MAX3206EETC+ is a low capacitance, 6-channel, ±15kV ESD protection array for high speed data interfaces in 12 pin TQFN package. Each channel consists of a pair of diodes that steer ESD current pulses to VCC or GND. It protect against ESD pulses up to ±15kV human body model, ±8kV contact discharge and ±15kV air gap discharge as specified in IEC 61000-4-2. This device have a 5pF capacitance per channel making it ideal for use on high speed data I/O interfaces. It is designed for cell phone connectors and SVGA video connections. It is used in Ethernet, firewire, video and cell phones.
- Supply voltage range is 0.9V to 5.5V
- Supply current is 100nA
- Channel input capacitance is 7pF(max) at VCC = 5V, bias of VCC/2
- Low 1nA (max) leakage current, low 1nA supply current
- Diode forward voltage range is 0.65V to 0.95V
Safety
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MAXIM INTEGRATED / ANALOG DEVICES |
| Part Number | MAX3206EETC+ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 707.88 |
| 3-5 | ₹ 700.66 |
| 5-10 | ₹ 686.21 |
| 10+ | ₹ 671.77 |
Bulk discount will be automatically applied during checkout based on quantity.
