Description

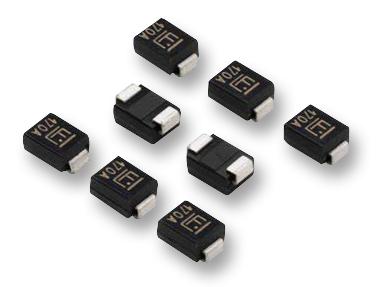

The P6SMB series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
- 500W Peak pulse power capability at 10x1000µs waveform
- Built-in strain relief
- Glass passivated junction
- Low incremental surge resistance
- Excellent clamping capability
- 0.01% Repetition rate (duty cycle)
- <1ps from 0V to V(BR) Minimum fast response time
- <1µA above 12V Current IR
- Available in unidirectional and bidirectional
- -65 to 150°C Operating temperature range
Applications
Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: P6SMB |
| TVS Polarity: Unidirectional |
| Reverse Standoff Voltage: 495V |
| Clamping Voltage Max: 760V |
| Diode Case Style: DO-214AA (SMB) |
| No. of Pins: 2Pins |
| Minimum Breakdown Voltage: 522.5V |
| Maximum Breakdown Voltage: 577.5V |
| Peak Pulse Power Dissipation: 600W |
| Operating Temperature Max: 150°C |
| Diode Mounting: Surface Mount |
| Qualification: - |
Other details
| Brand | LITTELFUSE |
| Part Number | P6SMB550A |
| Quantity | Each |
| Technical Data Sheet EN |  |
