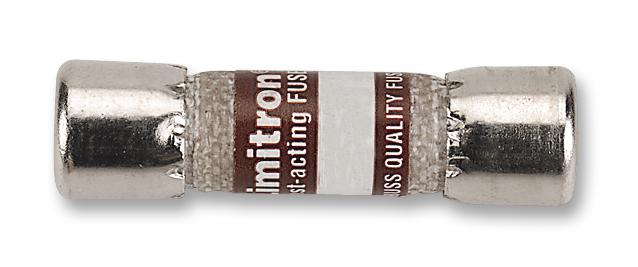

The KTK-5 is a 5A black fast-acting Supplemental Fuse with melamine tube and nickel plated bronze end caps. For superior protection, Eaton recommends upgrading to low-peak class CC fuses. It is color coded black for 600VAC voltage rating. It features fast-acting for resistive loads.
Applications
Industrial, Lighting
Product details
| Product Range |
KTK Series |
| Fuse Current |
5A |
| Voltage Rating VAC |
600VAC |
| Voltage Rating V DC |
- |
| Fuse Size Metric |
10mm x 38mm |
| Fuse Size Imperial |
13/32" x 1-1/2" |
| Blow Characteristic |
Fast Acting |
Other details
| Brand |
EATON BUSSMANN SERIES |
| Part Number |
KTK-5 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
