Description

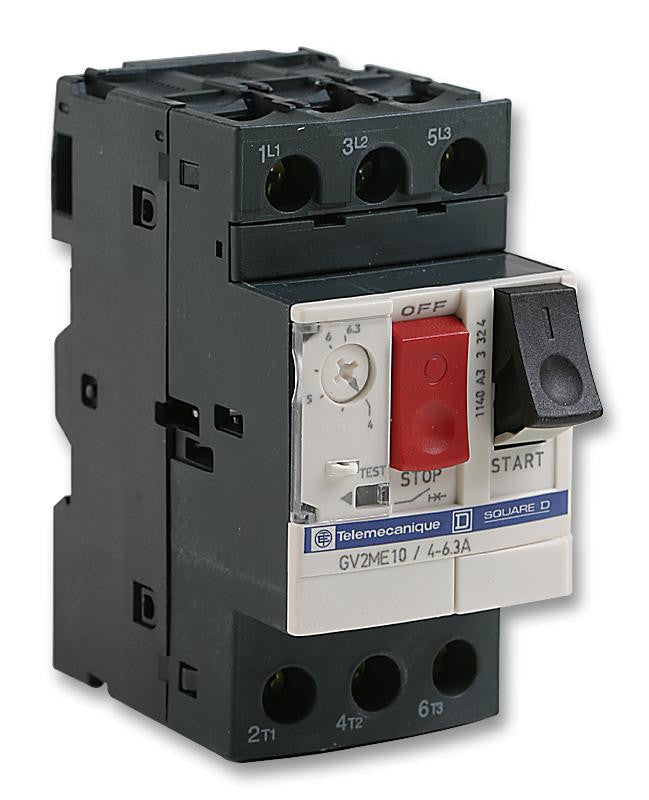

The GV2ME10 from Schneider is a TeSys three pole thermal magnetic circuit breaker with screw clamp terminals. This circuit breaker is approved by EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1, NF C 63-120, NF C 63-650, NF C 79-130, UL 508, VDE 0113, VDE 0660 and CSA C22.2 standards. The GV2ME10 is DIN rail mountable with vertical and horizontal mounting positions.
- Breaking capacity of 3KA at 690VAC (50/60Hz) conforming to IEC 60947-2
- Thermal protection adjustment range from 4A to 6.3A
- Magnetic tripping current is 78A
- Rated operational voltage of 690VAC (50/60Hz) conforming to IEC 60947-2
- Conventional free air thermal current of 6.3A conforming to IEC 60947-4-1
- Power dissipation per pole is 2.5W
- IP20 degree of protection conforming to IEC 60529
- IK04 degree of protection
- Operating ambient air temperature range from -20�C to 60�C
- Pushbutton control
Applications
Safety, Industrial
Product details
| Voltage Rating V AC | 690VAC |
| Current Rating | 6.3A |
| Product Range | GV2M Series |
| Circuit Breaker Mounting | DIN Rail |
| Voltage Rating V DC | - |
| No. of Poles | 3 Pole |
Other details
| Brand | SCHNEIDER ELECTRIC / TELEMECANIQUE |
| Part Number | GV2ME10 |
| Quantity | Each |
| Technical Data Sheet EN |  |
