Description

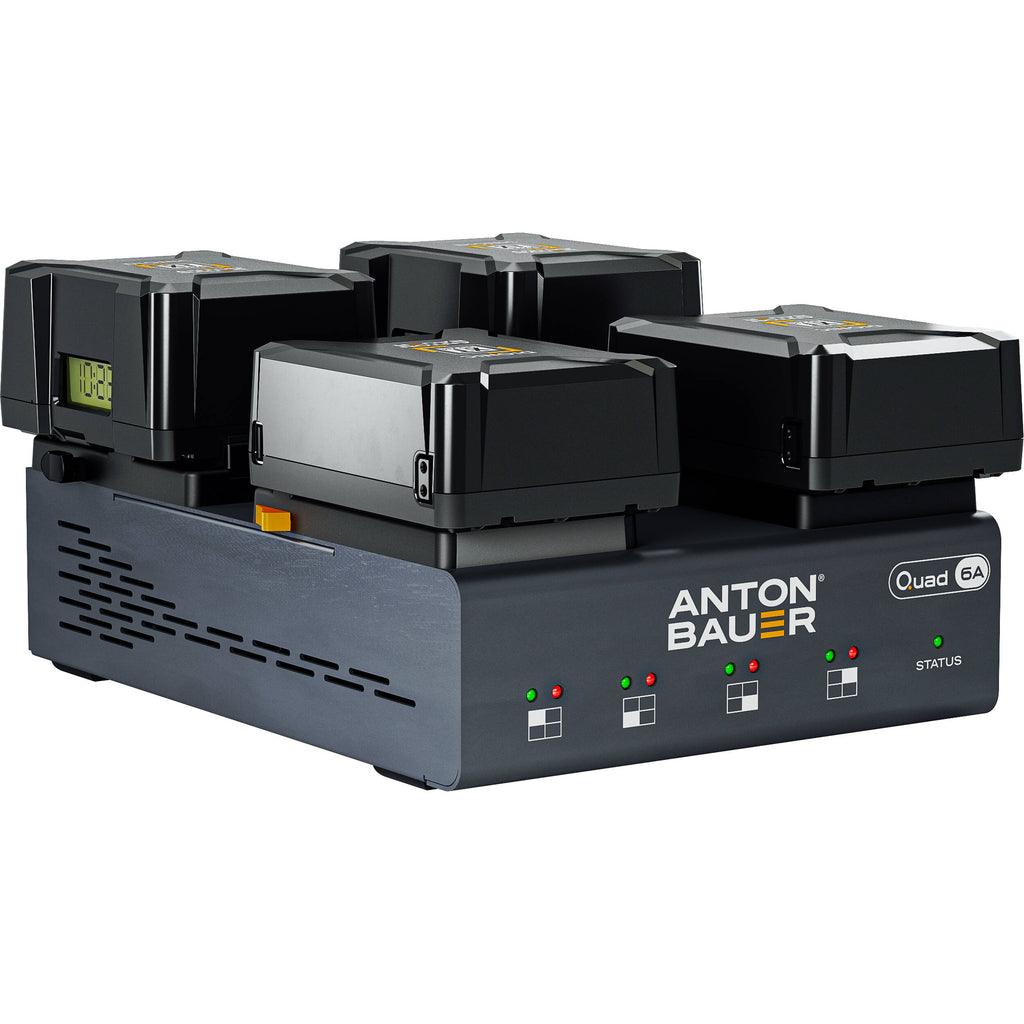

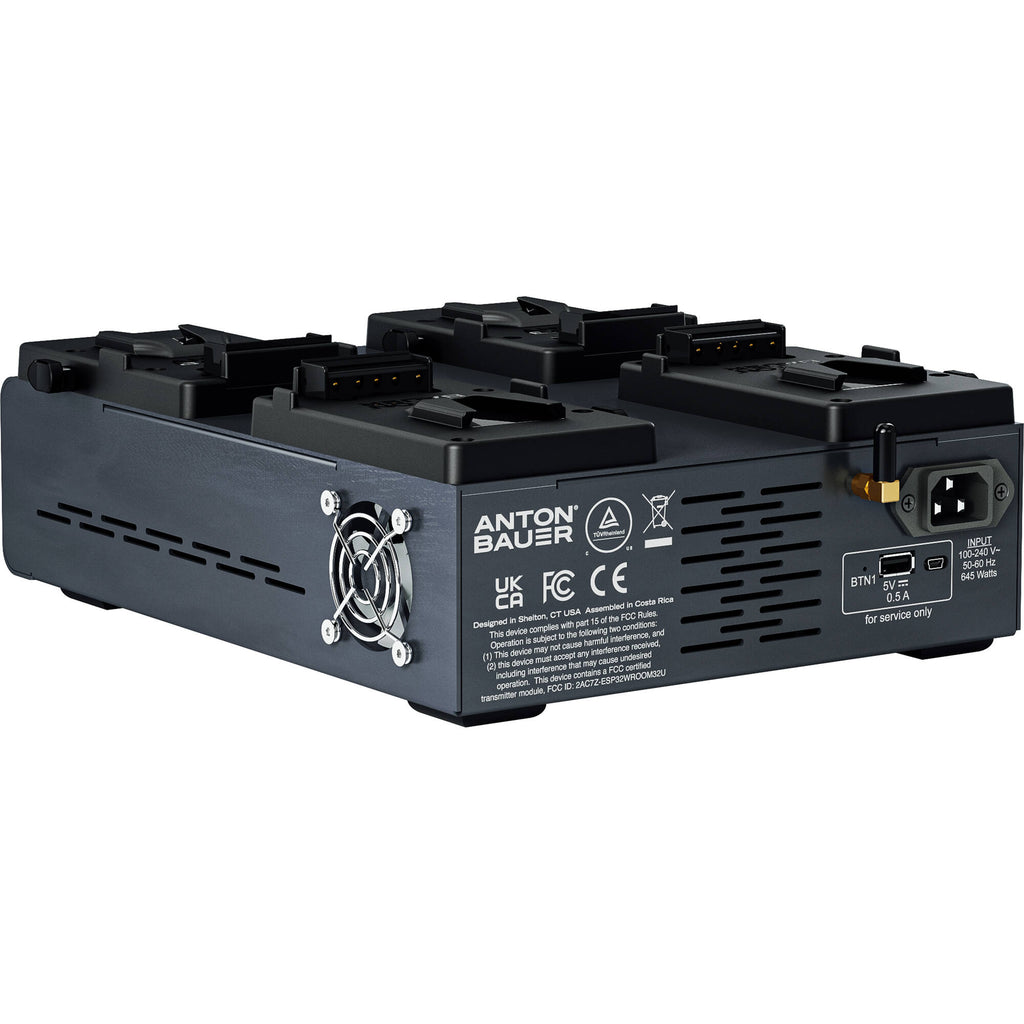

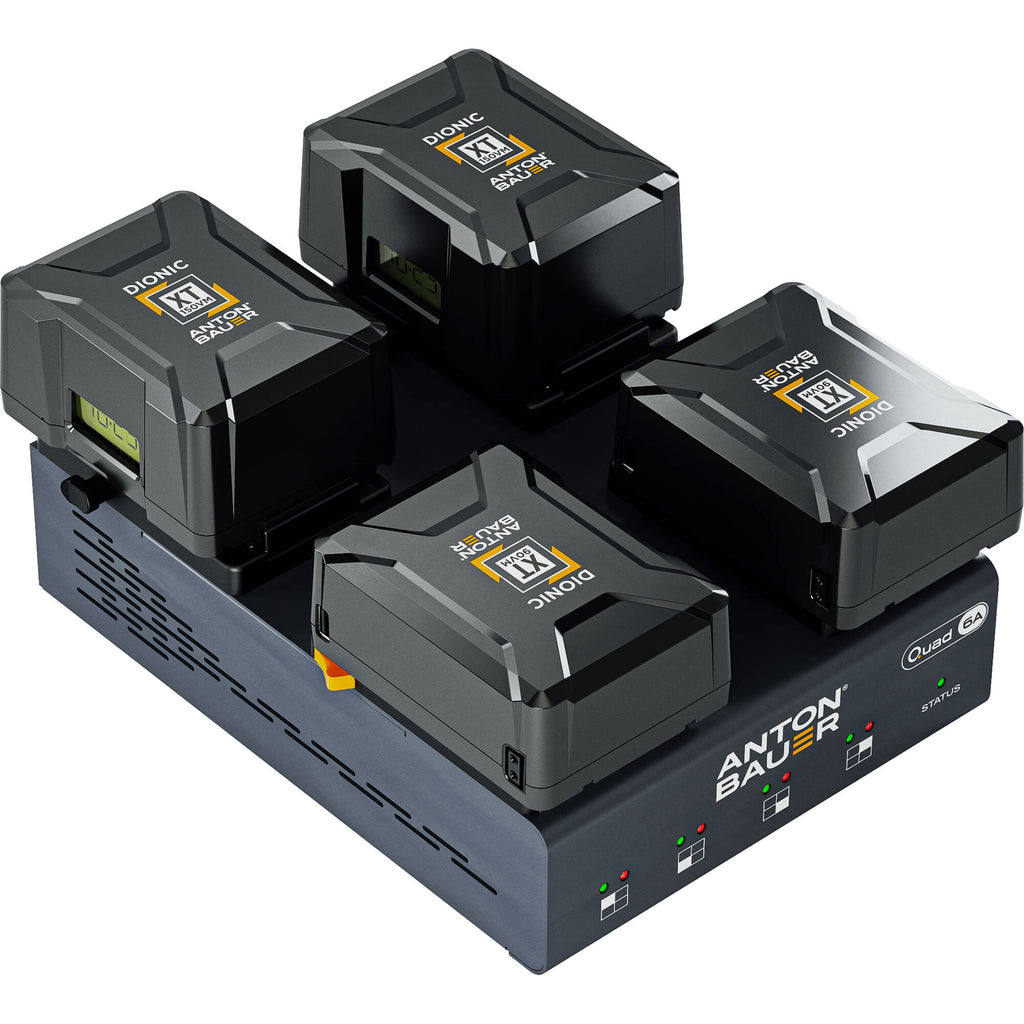

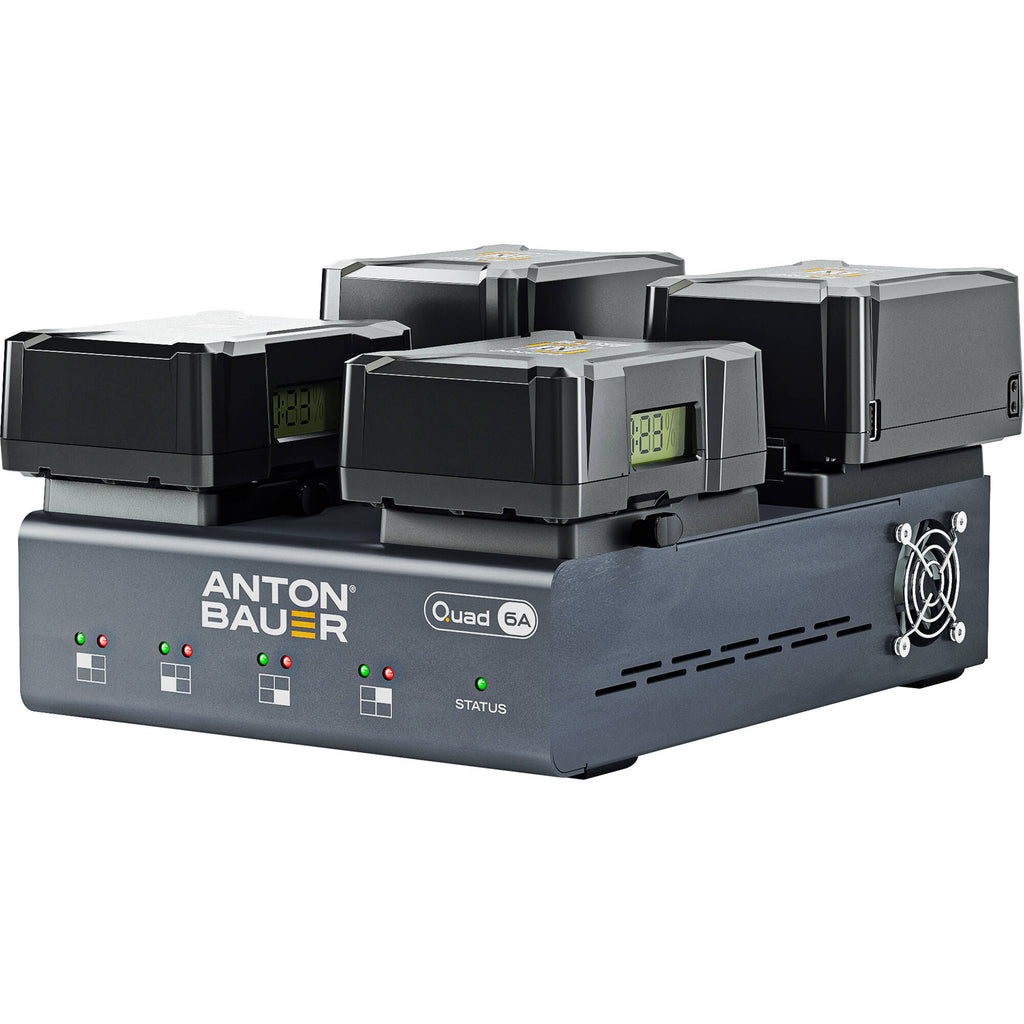

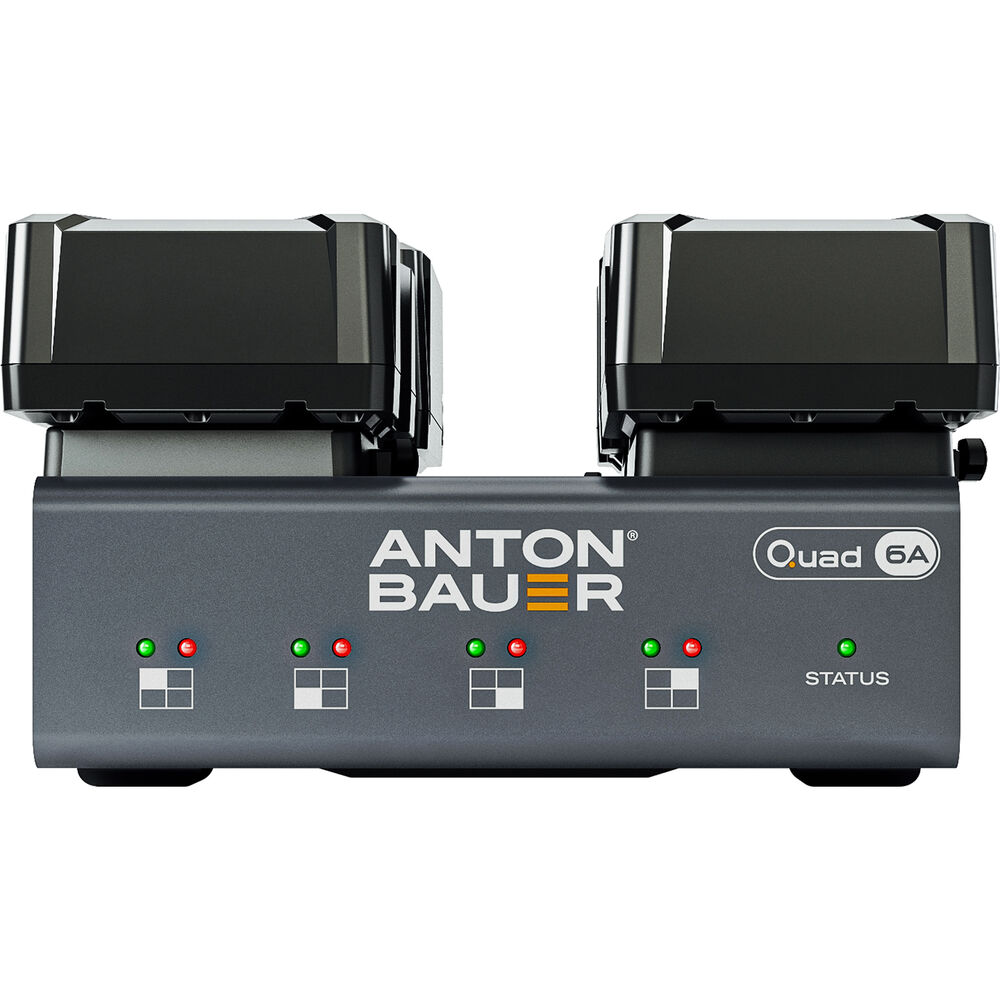

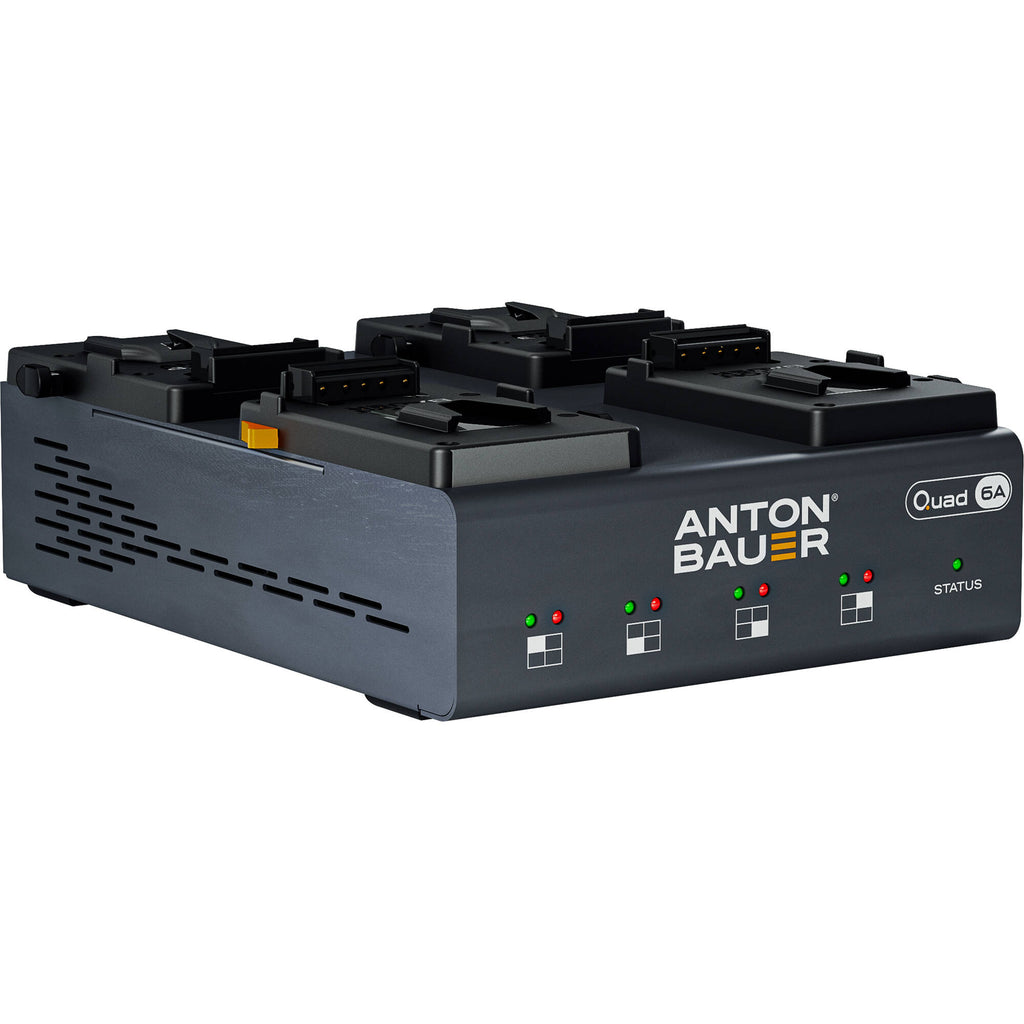

Anton/Bauer QUAD 6A Battery Charger Overview
Simultaneously charge four V-mount batteries with the QUAD 6A 4-Position Multi-Voltage Charger from Anton/Bauer. This charger outputs 6A for rapid charging of both 14 and 26V batteries, like the Dionic XT90, in just 90 minutes. Automatic detection identifies the battery with the highest charge to ensure you always have one fully powered battery on deck. Two upgrade ports allow you to update the charger in the field. The charger's low-profile design makes storing and transporting in standard travel cases easy. Multiple layers of protection ensure the charger does not short-circuit for a safe charging experience.
Items Included
- Anton/Bauer QUAD 6A 4-Position Multi-Voltage Charger (V-Mount)
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Anton/Bauer QUAD 6A Battery Charger Specs
Key Specs
| Charger Compatibility |
V-Mount
|
| Charger Power Source |
AC Power (Cable Not Included)
|
| Charger Power I/O |
1x IEC Input
� 100 to 240 VAC, 50 / 60 Hz |
| Charger Other I/O |
1x USB-A Female Firmware Input
1x Mini-USB Female Firmware Input |
Battery Charger
| Charger Compatibility |
V-Mount
|
| Number of Battery Bays |
4
|
| Multi-Bay Charging Modes |
Simultaneous
|
| Charger Power Source |
AC Power (Cable Not Included)
|
| Charger Power I/O |
1x IEC Input
� 100 to 240 VAC, 50 / 60 Hz |
| Charger Other I/O |
1x USB-A Female Firmware Input
1x Mini-USB Female Firmware Input |
| Battery Output Voltage |
14/26 VDC at 6 A
|
| Recharge Time |
90 Minutes
|
| Indicator |
LED
|
| Dimensions |
12.2 x 11.4 x 3.6" / 310 x 290 x 91 mm
|
| Weight |
4.7 lb / 2.13 kg
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
Packaging Info
| Package Weight |
6.33 lb
|
| Box Dimensions (LxWxH) |
16.4 x 12.5 x 4.2"
|
