Description

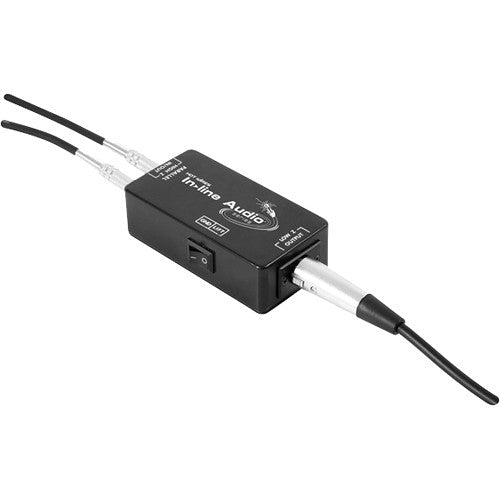

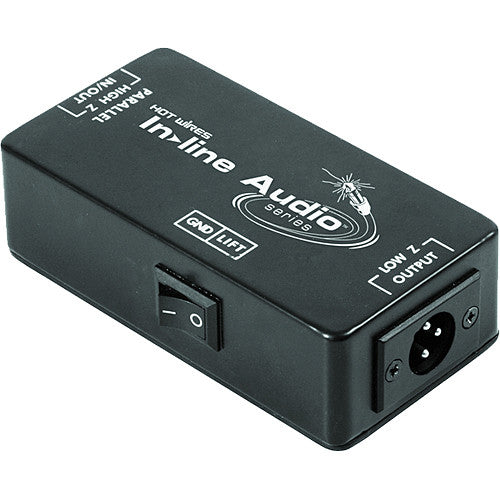

On-Stage DB500 Overview
The DB500 from On-Stage is a single channel, passive direct box that transforms any high-impedance 1/4" source into a low-impedance signal, ready to be sent long distances to a mixing board or recording console.
Housed in a rugged metal casing that will survive the rigors of the road, the unit features a high quality transformer, a ground lift switch, and does not require batteries or phantom power to function. The direct box is perfect for bass/acoustic guitar, keyboards and DJ equipment.
Single channel, passive direct box
Features a high quality transformer
Does not require batteries or phantom power
Ground lift switch
UPC: 659814883837
In the Box
- On-Stage DB500 - Direct Box (Passive)
- Limited 1-Year Manufacturer Warranty
On-Stage DB500 Specs
| Type |
Passive
|
| Input Connections |
1 x 1/4" TS phone
|
| Output Connectors |
1 x XLR
1 x 1/4" TS phone Pass Through |
| Input Impedance |
350k?
|
| Output Impedance |
80?
|
| Controls |
Ground lift switch
|
| Power |
Passive - does not require batteries or phantom power
|
| Dimensions |
4.75 x 2.88 x 1.38" (121 x 73 x 35mm)
|
| Weight |
5 lbs (2.3kg)
|
Packaging Info
| Package Weight |
1 lb
|
| Box Dimensions (LxWxH) |
5.5 x 3 x 2"
|
