Description
Product Overview

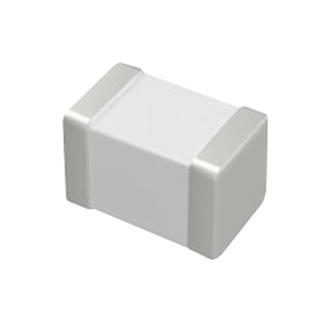

AS1210JKNPOCBN223 is an AS series, automotive grade with soft termination surface mount Multilayer Ceramic Chip Capacitor (MLCC). The capacitor consists of a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained. This structure gives rise to a high capacitance per unit volume. The inner electrodes are connected to the two end flexible terminations and finally covered with a layer of plated tin (NiSn). Suitable for all general purpose, entertainment, comfort/security and information applications.
- Capacitance is 0.022µF
- Capacitance tolerance is ±5%
- Capacitor case is 1210 [3225 metric]
- Dielectric characteristic is C0G / NP0
- Voltage rating is 1kV DC
- Operating temperature range from -55°C to +125°C
- AEC-Q200 qualified and PPAP provided
- Flexible termination system
- Board flex ?5mm, 100% AOI & SPC monitor
- Factory QMS : IOS/ TS16949 certified
Product details
Other details
| Brand | YAGEO |
| Part Number | AS1210JKNPOCBN223 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
