| ₹ 9240.0 includes GST and import duties. | |
| B2B customers can avail ₹ 1409.1 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

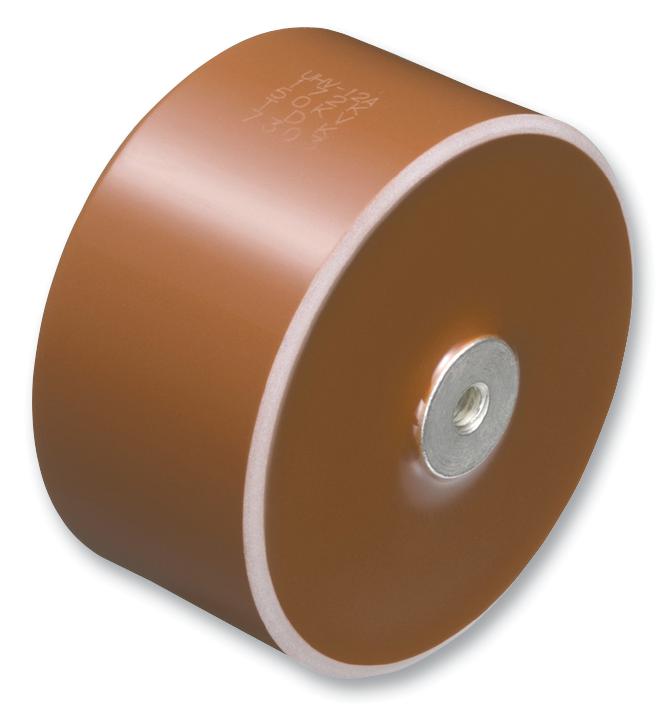

UHV-11A is an ultra high voltage ceramic capacitor for high voltage power supplies/lasers (for medical devices, lithography, industrial analysers).
- Capacitance value is 1000pF with ±10% tolerance
- Rated voltage is 50KVDC
- Withstanding voltage is 75KVDC [1min. insulating liquid]
- Dissipation factor is 0.1% maximum
- 10,000Mohm minimum insulation resistance
- Low ESR, low loss and low distortion factor
- Moulded type metal screw terminals for easy mounting
- Uses high-reliability mould resin
- Operating temperature range from -30 to +85°C
Product details
Other details
| Brand | TDK |
| Part Number | UHV-11A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9055.2 |
| 3-5 | ₹ 8962.8 |
| 5-10 | ₹ 8778.0 |
| 10+ | ₹ 8593.2 |
Bulk discount will be automatically applied during checkout based on quantity.
