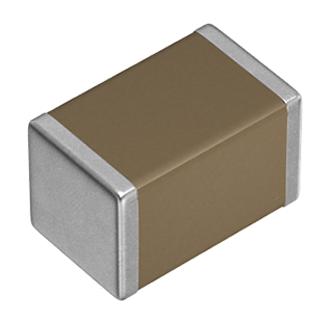

![TDK CGA6P3X7R1C156M250AB SMD Multilayer Ceramic Capacitor, 15 µF, 16 V, 1210 [3225 Metric], ± 20%, X7R](http://www.tanotis.com/cdn/shop/files/42bc931bc9d45bc5f0c372ca881201d9_369ac21f-500b-43ee-9639-692185c43170_{width}x.jpg?v=1755116732)
![TDK CGA6P3X7R1C156M250AB SMD Multilayer Ceramic Capacitor, 15 µF, 16 V, 1210 [3225 Metric], ± 20%, X7R](http://www.tanotis.com/cdn/shop/files/42bc931bc9d45bc5f0c372ca881201d9_369ac21f-500b-43ee-9639-692185c43170_1024x.jpg?v=1755116732)
| ₹ 149.37 includes GST and import duties. | |
| B2B customers can avail ₹ 22.78 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview
CGA6P3X7R1C156M250AB is a CGA series general-type automotive grade multilayer ceramic chip capacitor. It is a surface-mounted component, in which multilayer dielectrics and inner electrodes are stacked alternately. The monolithic structure ensures superior mechanical strength and high reliability. Also, outstanding frequency characteristics such as low ESR and low ESL are provided owing to the simpler structure than other capacitors. It is used in smoothing and decoupling use in power lines for automotive applications such as ADAS, autonomous driving system ECU, LC resonance circuits, and applications requiring high reliability.
- AEC-Q200 qualified
- Capacitance is 15µF
- ±20% capacitance tolerance
- 1210 [3225 Metric] case size
- X7R dielectric characteristic
- Rated voltage (DC) is 16V
- Operating temperature range from -55°C to 125°C
- Low self-heating value and high resistance to ripple on account of the low ESR
- No polarity
Product details
Other details
| Brand | TDK |
| Part Number | CGA6P3X7R1C156M250AB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 146.38 |
| 3-5 | ₹ 144.89 |
| 5-10 | ₹ 141.9 |
| 10+ | ₹ 138.91 |
Bulk discount will be automatically applied during checkout based on quantity.
