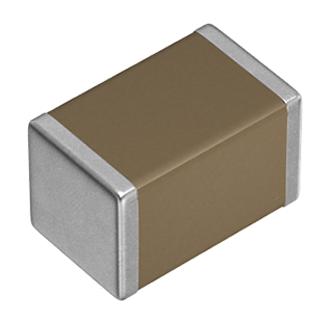

TDK C3225X7R2A225K230AB SMD Multilayer Ceramic Capacitor, 2.2 µF, 100 V, 1210 [3225 Metric], ± 10%, X7R

The TDK C series commercial grade mid voltage multilayer ceramic chip capacitor is class 2, X7R dielectric material with perfect layering technique which ensures the precise placing of dielectric and electrode layers as well as the multilayer technology. High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers. Typical applications include noise bypass, filtering, smoothing, decoupling, snubber in power supplies and electric flash circuits in digital still camera.

• Capacitance values ranging from 1pF to 15µF based on dielectric material
• Case sizes 1005, 1608, 2012, 3216, 3225, 4532 and 5750 are available
• DC voltage rating of 100V to 630V
• Excellent DC Bias properties
• Low residual inductance assures superior frequency characteristics
• High temperature range of -55°C to 125°C

Applications

Industrial, Consumer Electronics, Portable Devices, Power Management, Medical
