Description

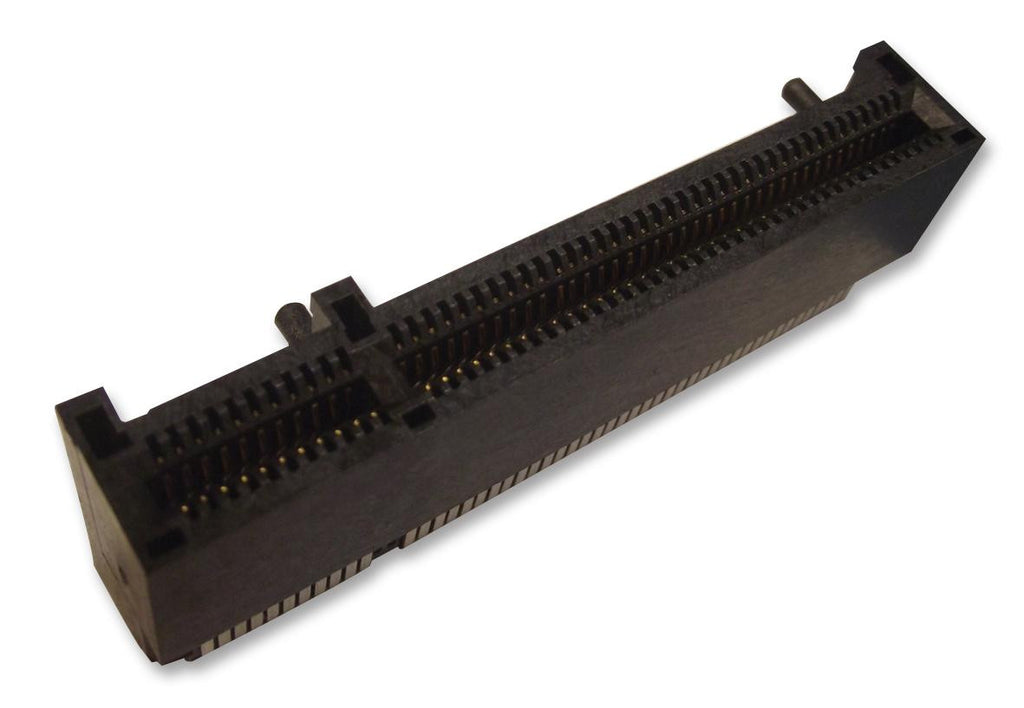

The PCIE-164-02-F-D-RA is a 164-pole 1mm PCI Express� Card Connector with 50�inch (1.27�m) gold-plated bronze contacts. The PCIE series right angle card connector is compatible with PCIEC and PCRF series connectors. While optimized for 50R applications, this connector with alternative signal/ground patterns may also perform well in certain 75R applications.
- 2.2A Current rating
- Supports one, four, eight and sixteen PCI Express� links
- Accepts 0.062" (1.60mm) card
Applications
Industrial
Product details
| No. of Rows | 2Rows |
| Row Pitch | - |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated Contacts |
| Pitch Spacing | 1mm |
| Connector Type | PCIe |
| Contact Termination Type | Through Hole |
| No. of Contacts | 164Contacts |
| Product Range | PCIE Series |
| Gender | Receptacle |
Other details
| Brand | SAMTEC |
| Part Number | PCIE-164-02-F-D-RA |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1574.32 |
| 3-5 | ₹ 1558.26 |
| 5-10 | ₹ 1526.13 |
| 10+ | ₹ 1494.0 |
Bulk discount will be automatically applied during checkout based on quantity.
