Description

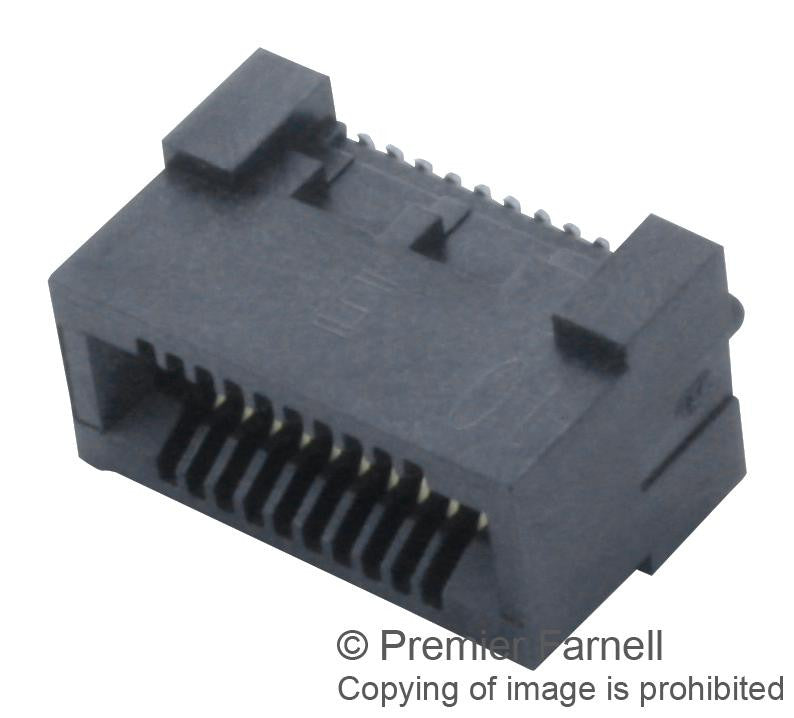

The HSEC8-110-01-SM-DV-A is a 20-pole 2-row 0.8mm High-speed Socket Strip with 30�inch (0.76�m) gold-plated beryllium copper contacts and LCP insulator. The HSEC8 series socket strip is compatible with 1.6mm thick cards, EEDP, HSC8 and HSF8 series connectors.
- Black colour
- 3.1A Current rating
- Lead-free solderable
- Vertical orientation
Applications
Industrial
Product details
| No. of Rows | 2Rows |
| Row Pitch | 1.75mm |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Pitch Spacing | 0.8mm |
| Connector Type | Card Edge |
| Contact Termination Type | Surface Mount |
| No. of Contacts | 20Contacts |
| Product Range | HSEC8 Series |
| Gender | Receptacle |
Other details
| Brand | SAMTEC |
| Part Number | HSEC8-110-01-SM-DV-A |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
