Description

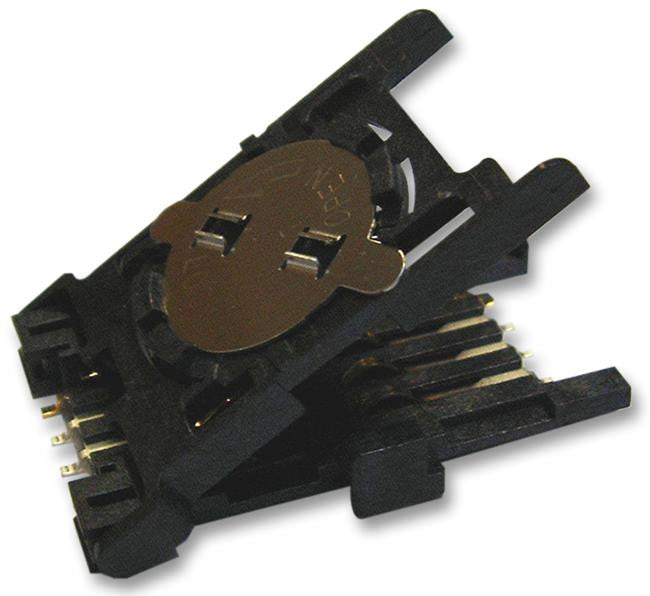

The 5145299-2 is a 8-position SIM/SAM Smart Card Connector with gold-plated phosphor bronze contacts and high temperature thermoplastic housing. The receptacle with card scoop, card guide slots and card detection switch. It is for use in the electronic equipment. This connector is designed for soldering directly onto the pc (printed circuit) board. The connector accepts MICROSIM GSM integrated circuit cards meeting GSM 11.11 standards. The card slides into the hinged lid on the connector and to ensure proper orientation, the notched edge on the card must align with the polarization feature (notched edge) on the connector, therefore allowing the lid to fully close.
- Surface-mount PCB mounting style
Applications
Consumer Electronics
Product details
| No. of Rows | - |
| Row Pitch | 25.64mm |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated Contacts |
| Pitch Spacing | 2.54mm |
| Connector Type | Memory Socket |
| Contact Termination Type | IDC / IDT |
| No. of Contacts | 8Contacts |
| Product Range | Smart Card Connectors |
| Gender | - |
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 5145299-2 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
