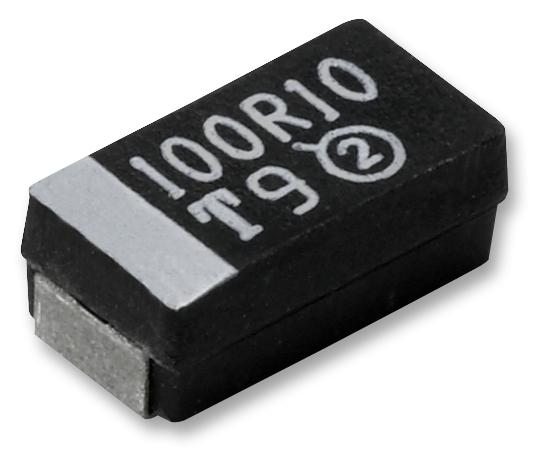

Vishay TR3C106K035C0450 Surface Mount Tantalum Capacitor TANTAMOUNT® 10 µF 35 V 2312 [6032 Metric] ± 10% 0.45 ohm C

The Vishay TANTAMOUNT TR3 series are solid tantalum surface mount chip capacitors with low ESR and moulded case. These capacitances have high ripple current carrying capability and compatible with high volume automatic pick and place equipment.

• Available in EIA 3216-18, 3528-21, 6032-28, 7343-31, 7343-43, 7343-20, 7361-38 case sizes
• Capacitance range from 0.47µF to 1000µF
• Voltage rating range from 4VDC to 75VDC
• Capacitance tolerance is ±10%, ±20%
• Operating temperature range from -55°C to 125°C
• Dissipation factor range from 4% to 30%
• Meets EIA-535-BAAC mechanical and performance requirements
• Qualified to EIA-717 standard
• 100% surge current tested (C, D and E case sizes)

Applications

Industrial, Consumer Electronics, Portable Devices, Power Management

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	VISHAY
Part Number	TR3C106K035C0450
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
One Page Summary EN
