Description

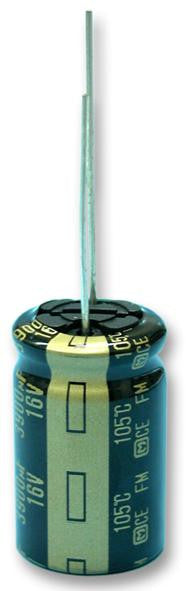

The Panasonic FM series capacitor are type A, radial leaded polarized aluminium electrolytic capacitor. The capacitance value ranges from 22µF to 6800µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form.
- High reliability
- Rated voltage range of 6.3VDC to 50VDC
- Tolerance of ±20%
- Endurance of 2000h to 7000h at 105°C
- Operating temperature range -40°C to 105°C
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Operating Temperature Min | -40°C |
| Capacitor Terminals | Radial Leaded |
| Operating Temperature Max | 105°C |
| Lifetime @ Temperature | 4000 hours @ 105°C |
| Voltage Rating | 25V |
| Product Range | FM Series |
| Diameter | 8mm |
| Automotive Qualification Standard | - |
| ESR | - |
| Capacitance | 470µF |
| Lead Spacing | 3.5mm |
| Capacitance Tolerance | ± 20% |
| Packaging | Each |
| Height | 20mm |
Other details
| Brand | PANASONIC ELECTRONIC COMPONENTS |
| Part Number | EEU-FM1E471L |
| Quantity | Each |
| Technical Data Sheet EN |  |
