Description

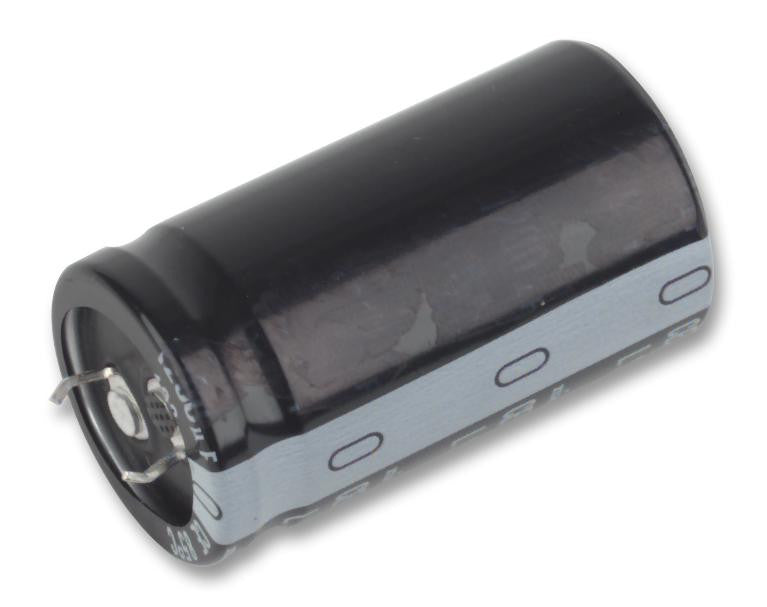

The Multicomp MCLPR series capacitors are snap in polarized aluminium electrolytic capacitors. These capacitors are large size capacitors with specially designed self standing terminals and can be directly soldered to printed circuit boards without holders. MCLPR capacitors can easily fix to printed circuit boards due to specially designed terminals.
- Capacitance value ranges from 470�F to 68000�F for 10VDC to 100VDC
- Capacitance value ranges from 47�F to 2700�F for 160VDC to 450VDC
- Tolerance of �20%
- Available in -40�C to 85�C and -25�C to 85�C temperature ranges based on rated voltage
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Operating Temperature Min | -40�C |
| Capacitor Terminals | Quick Connect, Snap-In |
| Operating Temperature Max | 85�C |
| Lifetime @ Temperature | 2000 hours @ 85�C |
| Voltage Rating | 63V |
| Product Range | LPR Series |
| Diameter | 26mm |
| Automotive Qualification Standard | - |
| ESR | - |
| Capacitance | 4700�F |
| Lead Spacing | 10mm |
| Capacitance Tolerance | � 20% |
| Height | 40mm |
Other details
| Brand | MULTICOMP |
| Part Number | MCLPR63V478M26X40 |
| Quantity | Each |
| Technical Data Sheet EN |  |
