Common Sense RC ACDC-10A 1-6S 100W 10A Multi-Chemistry Balancing Charger

10A Charge Rate / 100W for RC Batteries

AC and DC Input Ports; Cords Included

Charge up to 15 NiMH/NiCad Cells

Charge up to 6S LiPo/LiFe/LiHV Cells

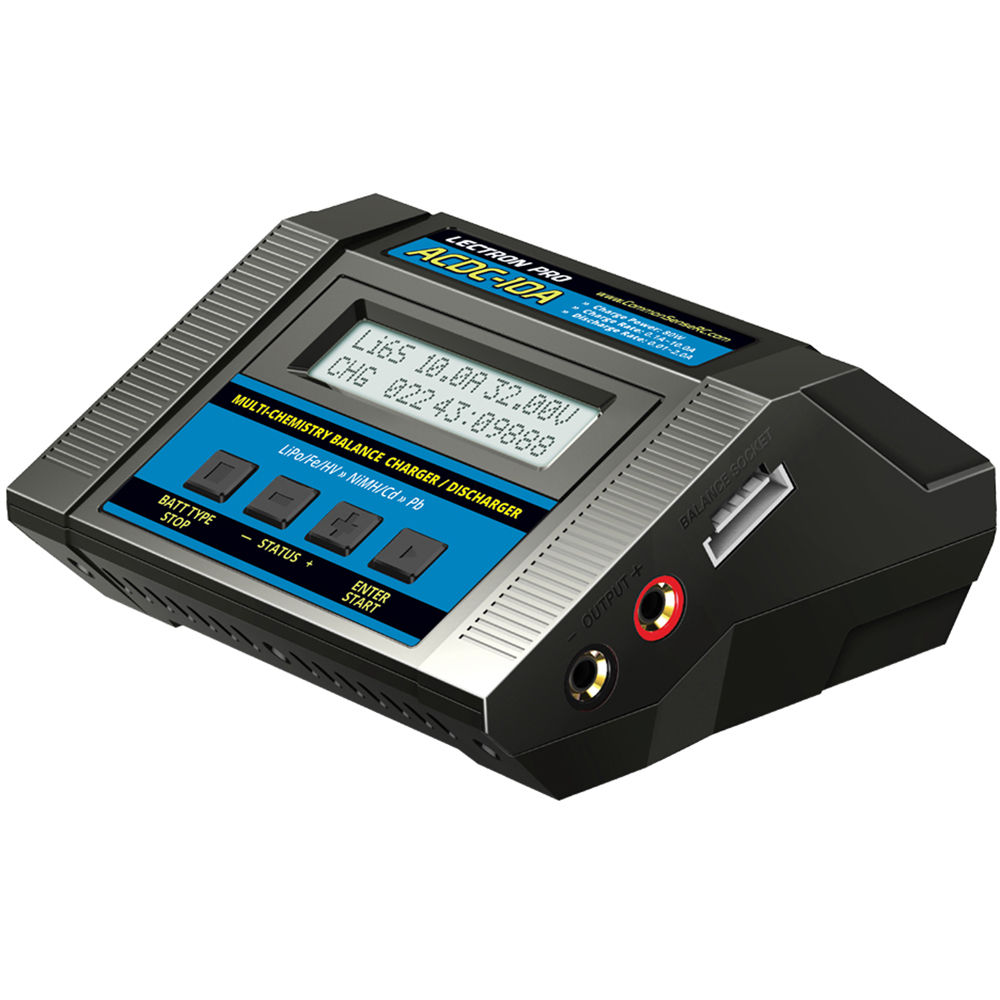

The ACDC-10A 1-6S 100W 10A Multi-Chemistry Balancing Charger from Common Sense RC is AC/DC compatible and includes power cords for both options, allowing you to charge your RC batteries indoors or on the road. The desktop charger features a 10A maximum charge rate plus 100W of charging power for LiPo, LiFe, LiHV, NiCad, and NiMH batteries. It charges up to 15 NiMH/NiCad cells or 6S LiPo/LiFe/LiHV lithium batteries. It also features a balancing circuit for lithium batteries and allows you to save the charge settings for up to 10 different battery models to internal memory.

Included with the charger is a balancing board with 2S to 6S JST-XH connectors and a squid-style adapter offering Deans, XT60, and EC3 connectors so you can charge most RC batteries.

Key Features

• AC and DC input ports; power cords included
• 10A maximum charge rate plus 100W of charging power
• Charge up to 15 NiMH/NiCad cells or 6S LiPo/LiFe/LiHV lithium batteries
• Balancing circuit for lithium batteries
• Internal data storage for up to 10 battery settings
• Includes balancing board with 2S to 6S JST-XH connectors
• Includes squid-style adapter with Deans, XT60, and EC3 connectors

UPC: 612289984874

Input Voltage	100 to 240 VAC 11 to 18 VDC
Charging Circuit Power	100 W (Max)
Supported Cells	Lithium Cells: 1S to 6S NiMH/NiCad Cells: 1 to 15
Pb Battery Voltage	2 to 24 V
Charge Rate	0.1 to 10 A
Maximum Discharge Power	5 W
Discharge Rate	0.1 to 2.0 A
Balance Current	400 mAh/Cell
Internal Data Storage	Settings for 10 Batteries
Display	LCD
Connections	1 x Output Jack 1 x AC Input 1 x DC Input 1 x Micro-USB Firmware Update Port
Dimensions	5.2 x 4.5 x 2.4" / 13.2 x 11.4 x 6 cm
Weight	13.4 oz / 380 g

Package Weight	1.62 lb
Box Dimensions (LxWxH)	8.2 x 7.2 x 2.8"
