Description

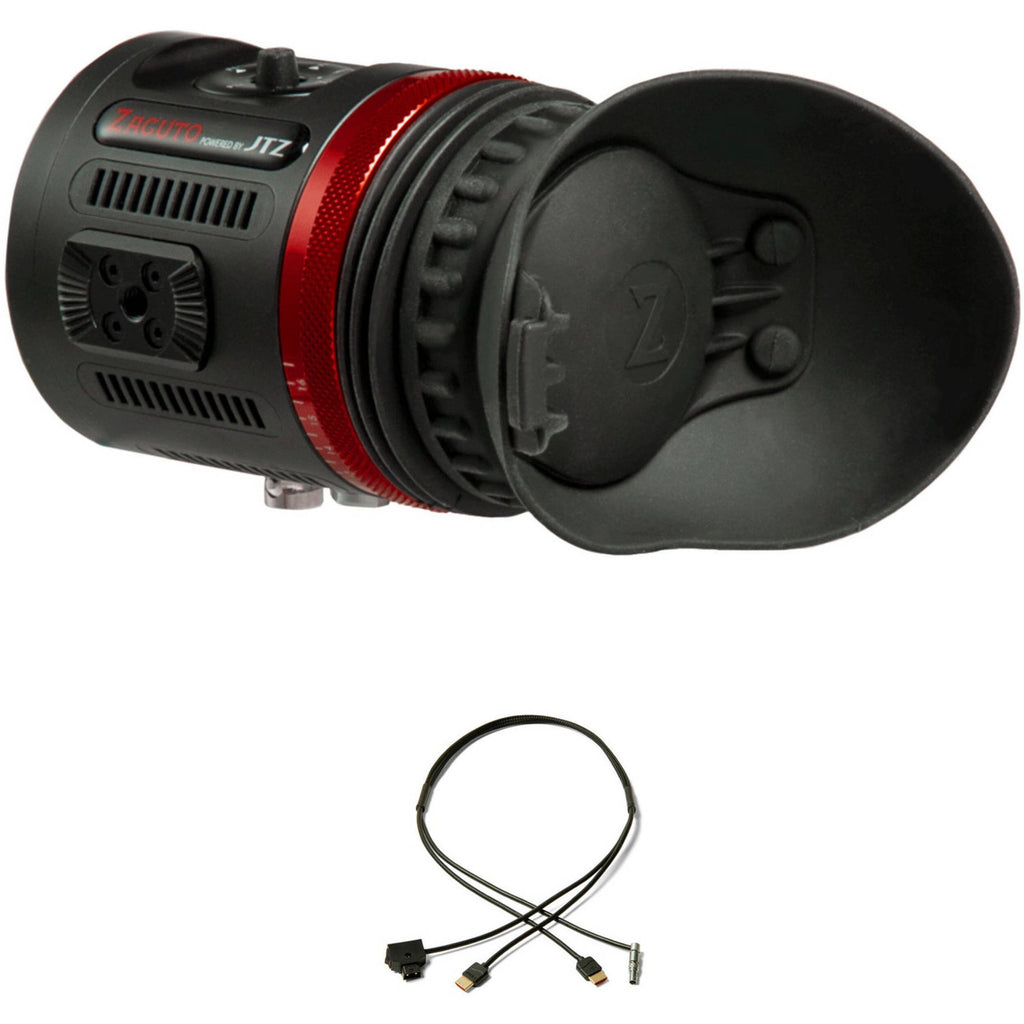

This Zacuto Kameleon EVF Pro Kit with Combination Power and HDMI Cable from has been assembled to provide you with an HD viewfinder suitable for DSLRs, mirrorless, and digital cine cameras, plus a combination power/video cable. This viewfinder supports 4K over HDMI and 1080p60 over SDI via a BNC connector, and it has four user-assignable buttons to activate frequently used functions without diving into the menu. The included combination cable features a D-Tap to 4-pin LEMO cable with integrated on/off switch, plus an HDMI video cable, both bound together for a neat appearance and an easy run.

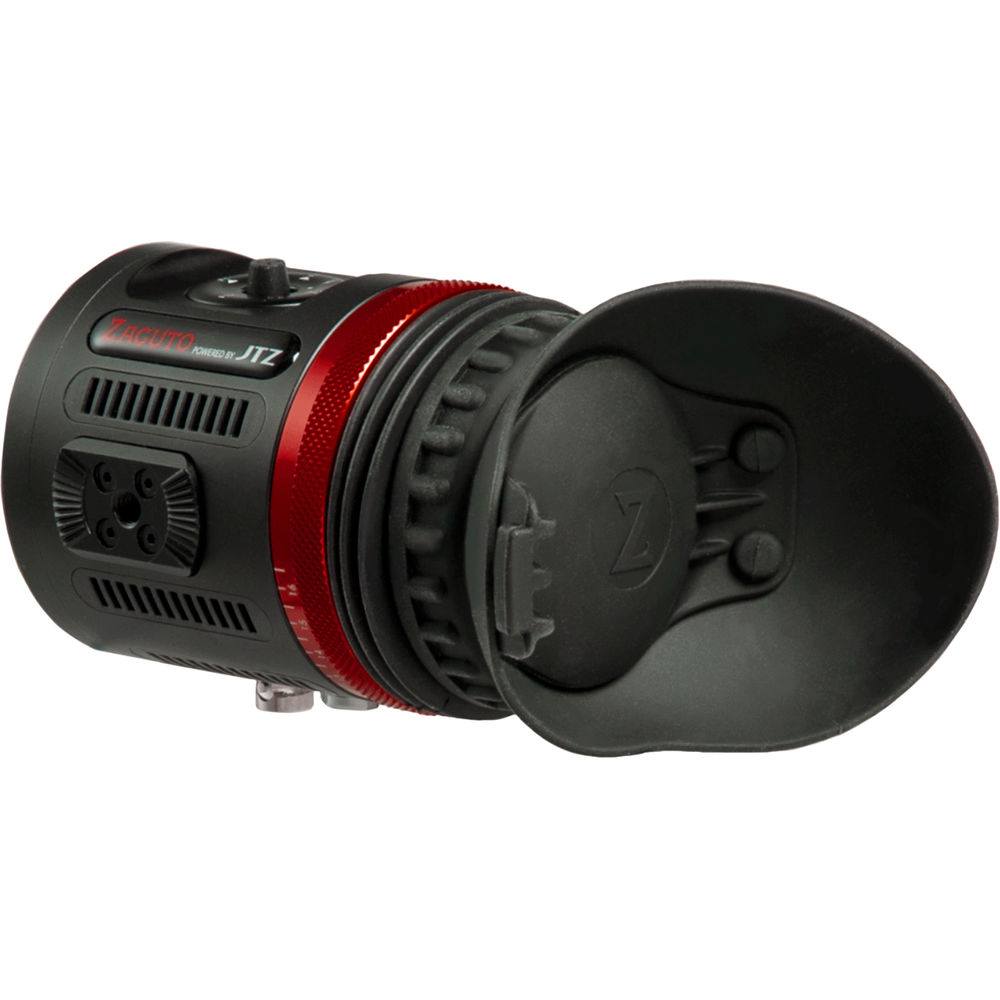

The micro-OLED Kameleon Pro EVF from Zacuto updates the original Kameleon with both waveform and vectorscope functions and a new display interface. Designed to carry you through all of your rig upgrades, the Kameleon Pro is compatible with DSLRs, mirrorless, and cine-style cameras. Co-designed with JTZ, this 1920 x 1080 resolution EVF supports up to DCI 4K input via HDMI and up to 1080p60 via SDI (BNC).
The Kameleon Pro EVF features a 10,000:1 contrast ratio, 3D LUT support, joystick control, 4-pin LEMO power input, and four user-assignable buttons. Use the built-in S-Log2, S-Log3, C-Log, and V-Log presets, or import your preferred 3D LUT via the USB Type-C input port. Imaging tools include histogram, red peaking, three levels of edge enhancement peaking, false color, anamorphic de-squeezing, and SMPTE color bars. An auto-closing rubber eyecup helps prevent burn-in, and Zacuto's patented anti-fog technology keeps your view clear in humid or cold environments. The Kameleon Pro EVF's built-in -1 to +4 diopter enables you to get a comfortable view without your eyeglasses, and for greater vision correction, four stronger diopters are available separately.
Additional Kameleon Pro EVF features include both 1:1 and 4:1 zoom ratios, selectable frame lines, freeze frame, a cooling fan, and audio meters. Two ARRI-compatible rosettes with 1/4"-20 threading enable you to mount the Kameleon Pro with either side up as you prefer.
- 0.71", 1920 x 1080 micro-OLED display with 10,000:1 contrast ratio
- Waveform, vectorscope, and histogram
- 3G-SDI, HDMI Type A, and USB Type-C connections
- Updated display interface
- Displays resolutions up to 1080p and frame rates up to 60 fps
- Supports up to DCI 4K video via HDMI and up to 1080p via BNC
- Patented Zacuto anti-fog technology
- Compatible with mirrorless, DSLR, and cine-style cameras
- Auto-closing rubber eyecup protects against burn-in
- Four user-assignable buttons
- 3D LUT import plus built-in S-Log2, S-Log3, C-Log, and V-Log
- Custom scaling/user presets
- Joystick and four programmable hotkeys
- Frame lines
- 1:1 and 4:1 zoom
- RGB, saturation, brightness, and contrast adjustments
- Audio meters
- 3D LUT import
- Peaking (red)
- Three levels of edge enhancement peaking
- False color
- SMPTE color bars
- Built-in LUTs: S-Log2, S-Log3, Log3, V-Log
- Upload additional LUTs via USB Type-C connector
- Two ARRI-type rosettes with 1/4"-20 threading and one additional 1/4"-20 mounting thread
- Adjustable diopter range from -1 to +4
- Joystick menu/function button
- Removable rubber eyepiece light trap
- Fan-cooled design

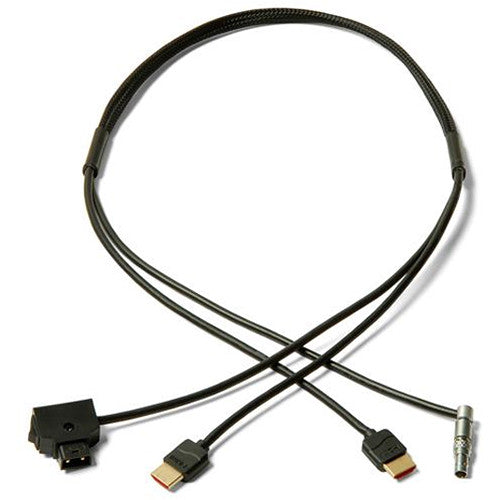

Designed for EVFs and monitors with a 4-pin power port, this 4-Pin LEMO to D-Tap Power and HDMI Cable from Zacuto combines two cables into one with molded sheathing that keeps them neatly together. The cable runs HDMI type A on one end to HDMI type A on the other, and 4-pin LEMO-type to D-Tap. The D-Tap connector is designed with a power switch on it so you can control when to draw power from a connector D-Tap source.
Items Included
- Zacuto Kameleon EVF Pro
- Limited 1-Year Manufacturer Warranty
- Zacuto 4-Pin LEMO to D-Tap Power and HDMI Cable with Power Switch
- Limited 1-Year Manufacturer Warranty
Additional Resources
Firmware Updates
v1.12, Apr ' 25
Zacuto Kameleon EVF Pro
| Panel Type |
OLED
|
| Screen Resolution |
1920 x 1080
|
| Diopter Correction |
-1.0 to +4.0
|
| Inputs/Outputs |
1x HDMI Video Input
1x BNC (3G-SDI) Video Input 1x LEMO 4-Pin Power Input 1x USB-C Data Input |
| Panel Type |
OLED
|
| Display Size |
0.71" / 1.8 cm
|
| Screen Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Contrast Ratio |
10,000:1
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| Image Controls |
Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Scaling, Screen Markers, Vectorscope, Waveform, Zebra
|
| Diopter Correction |
-1.0 to +4.0
|
| Inputs/Outputs |
1x HDMI Video Input
1x BNC (3G-SDI) Video Input 1x LEMO 4-Pin Power Input 1x USB-C Data Input |
| Video Format |
HDMI
DCI 4K UHD 4K 1080p 1080i 720p SDI 1080p 1080i 720p |
| Power Consumption |
5 W
|
| Tripod/Accessory Mounting |
Bottom
1x 1/4"-20 Female 2x Rosette with 1/4"-20 Female |
| Dimensions |
4.9 x 2.83 x 2.75" / 12.4 x 7.19 x 6.99 cm (Including )
|
| Weight |
15.00 oz / 0.43 kg, Including
|
| Package Weight |
1.45 lb
|
| Box Dimensions (LxWxH) |
7.25 x 4.5 x 3.75"
|
