Description
Teradek LT 1500 Overview

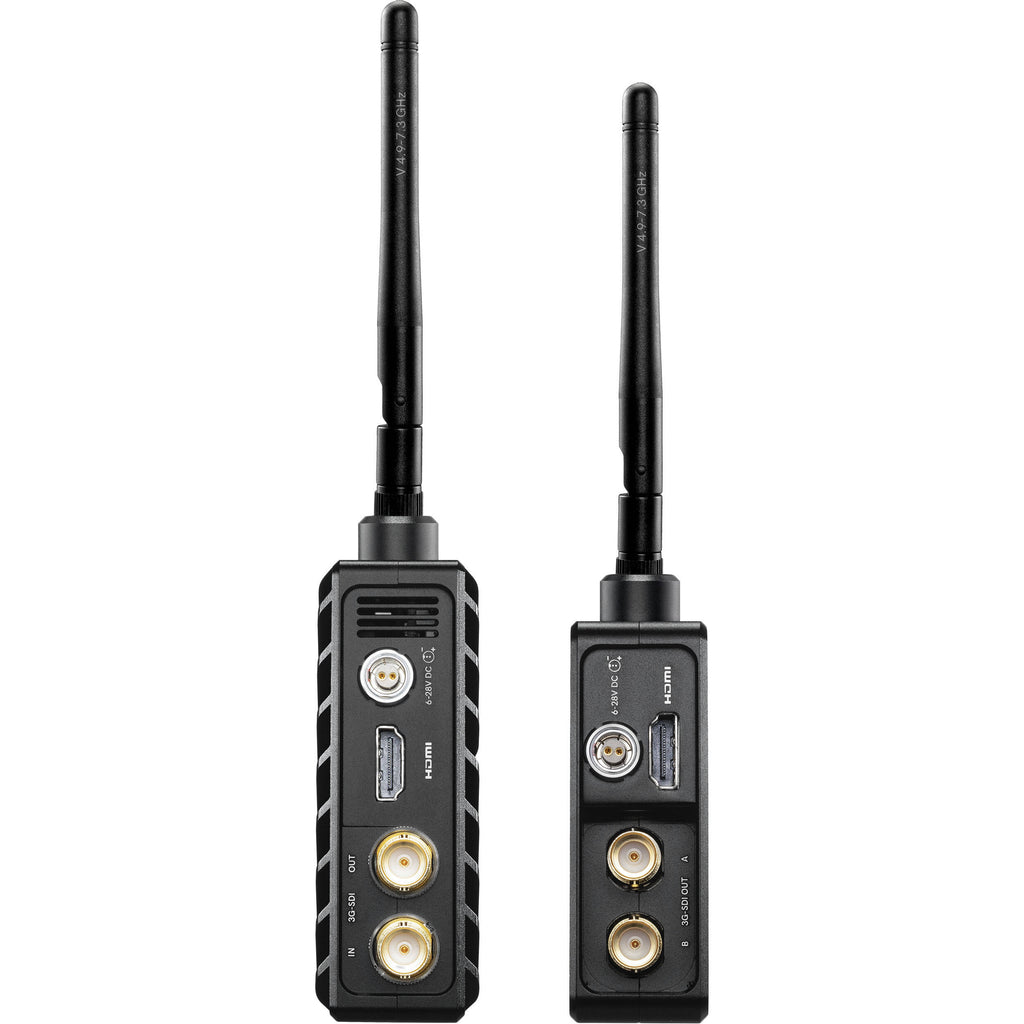

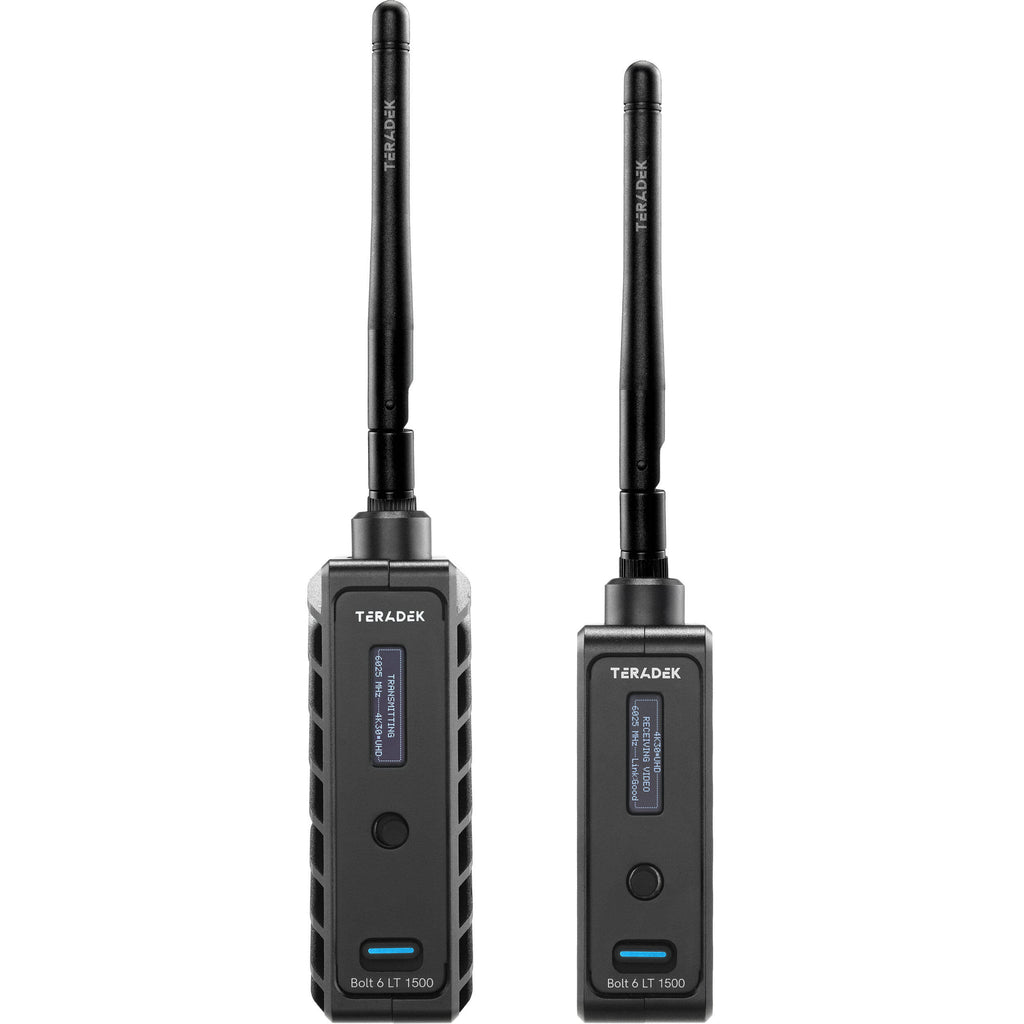

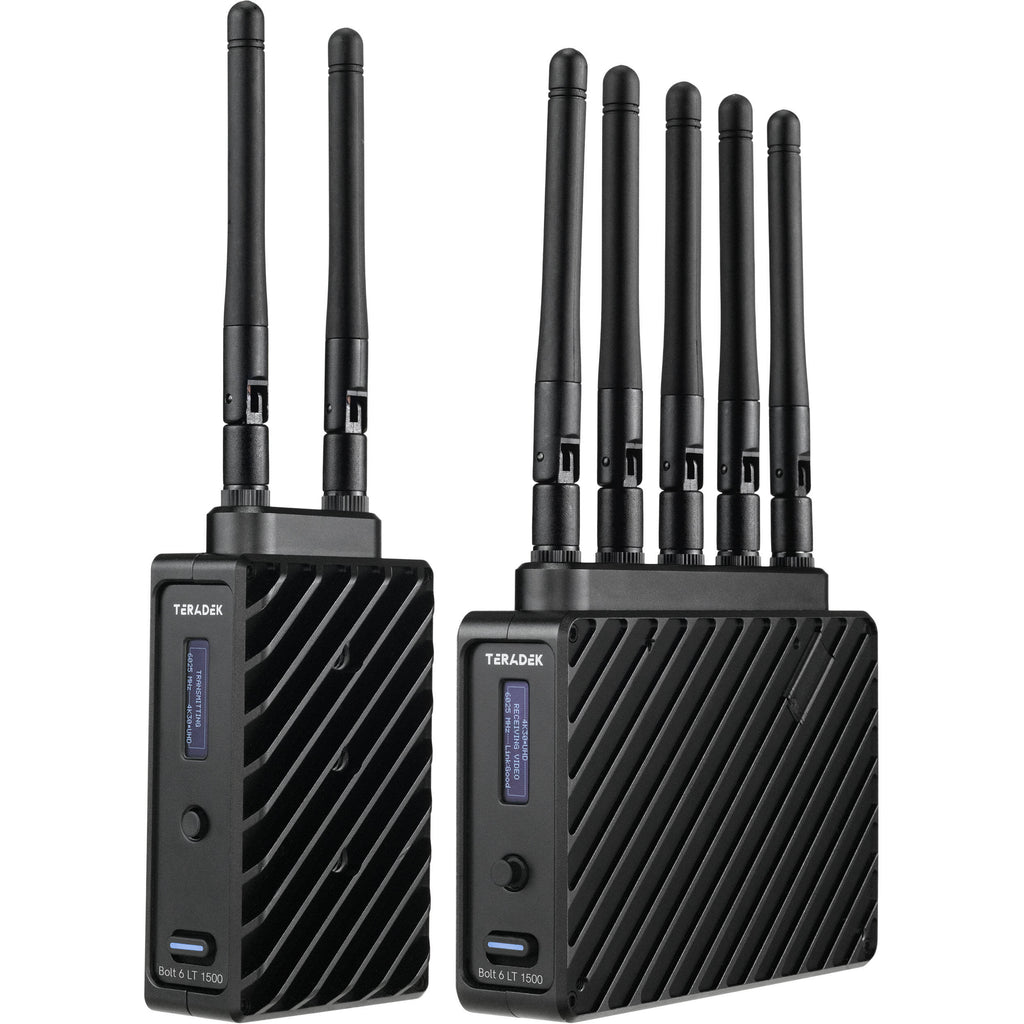

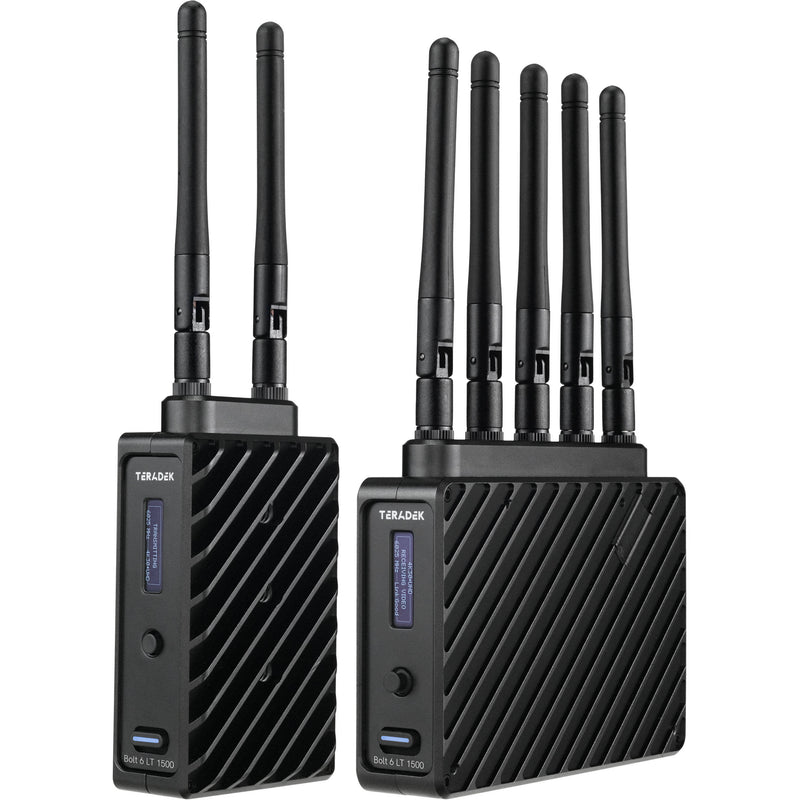

Transmit and receive lossless HD video from up to 1500' line of sight with the Bolt 6 LT 1500 3G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to UHD 4K30 video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI. A Gold mount battery plate is included to power the receiver with a professional Gold mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
The transmitter sends up to 4K30 video to any Bolt 6 or 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT units are all cross-compatible, so you can transmit to different Bolt 6 or 4K series receiver models. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.
The system also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, both providing a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20, 3/8"-16, and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs. The Deluxe Kit features a carry case for the entire system, as well as additional cables and mounting options.
In the Box
- Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (Gold Mount)
- Bolt 6 LT 1500 3G-SDI/HDMI Transmitter (Gold Mount)
- Bolt 6 LT 1500 3G-SDI/HDMI Receiver (Gold Mount)
- Antenna Array
- 2 x Bolt Battery Cover
- 2-Pin to D-Tap Power Cable (18")
- Micro-USB to USB Type-A Cable (36")
- HDMI Type A Cable (18")
- 18W AC Adapter with Cable (6')
- 2 x BNC Cable (10")
- 5 x RP-SMA Female Cable (4")
- 2-Pin Connector Cable for ALEXA (18")
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
- Wooden Camera Offset Mount
- Carry Case
Teradek LT 1500 Specs

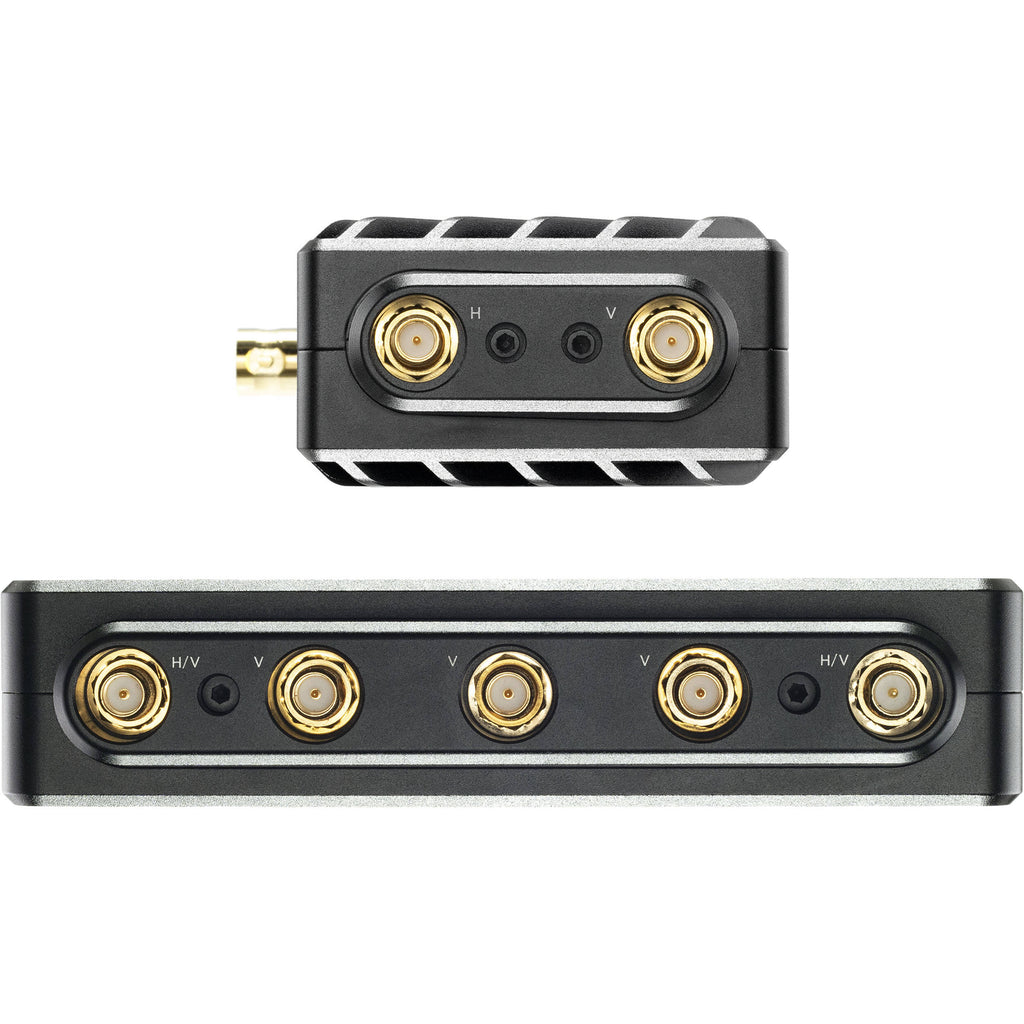

| Antenna I/O | Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female |
| Video I/O | Transmitter: 1 x HDMI Input Transmitter: 1 x BNC (3G-SDI) Input Receiver: 1 x HDMI Output Receiver: 1 x BNC Output |
| Embedded Audio | SDI: 2-Channel HDMI: 2-Channel |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless Range | 1500' / 457.2 m (Line-of-Sight) |
| # of Channels | 13 (40 MHz) 25 (20 MHz) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 59.94/50 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| DC Input Power | 28 VDC |
| Battery Type | Receiver: 1 x Gold Mount |
| Power Consumption | Transmitter: 9 W Receiver: 11 W |
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight | Transmitter: 7.3 oz / 206 g Receiver: 10.3 oz / 292 g |
| Package Weight | 21.65 lb |
| Box Dimensions (LxWxH) | 24.3 x 19.9 x 9.5" |
