Description
- Designed for Steadicam/Film Applications
- 471.25 MHz - 801.25 MHz Frequencies
- All UHF Channels from CH14 - CH69
- Up to 600 ft with Omni Dipole Antenna
- Up to 1000 ft with High Gain Antenna
- 100 mW RF Power
- NTSC Video Format
- BNC Video Connector
- Negative AM Modulation
- Measures Only 3.9" x 1.9"

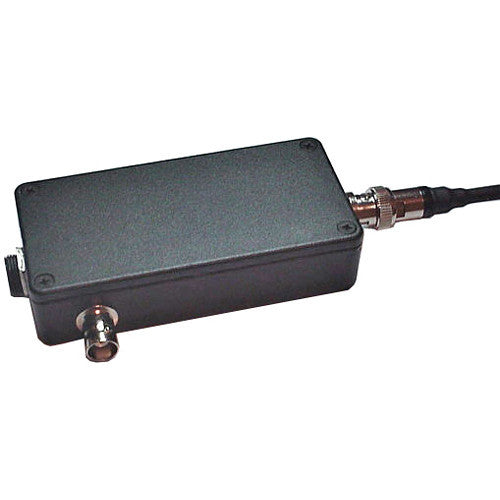

Designed for Steadicam users and other TV/film production applications, the RF-Video SPX-68V UHF Transmitter operates within the 471.25 MHz - 801.25 MHz frequencies and has all UHF channels from CH14 - CH69. It's compact, measuring only 3.9" x 1.9", and offers a transmission range up to 600 ft line-of-sight with an omni dipole antenna and up to 1000 ft with a high gain antenna. Antennas are sold separately.
In the Box
RF-Video SPX-68V UHF High Power Video Transmitter 471.25 MHz - 801.25 MHz
- Limited 1-Year Warranty
| Operating Frequencies | 471.25 - 801.25 MHz |
| Channels | CH14 - 69 UHF |
| DC Voltage | 12 V |
| RF Power | 100 mW |
| Minimum Required Voltage | 12 V |
| Battery Power | 12 - 32 V max |
| Frequency Stability | 2 ppm |
| Video Distortion | 2% |
| Maximum Range | 1000 ft (305 m) with high gain antenna |
| Video Format | NTSC |
| Current Consumption | 190 mA / 12 V |
| Antenna | Omni dipole or high-gain supported (not included) |
| Antenna Connector | BNC |
| Impedance | 50 ohms |
| Video Connector | BNC |
| Video Impedance | 75 ohms |
| Video Level | 1 V |
| Modulation | Negative AM |
| Temperature Range | 5 to 149°F (-15 to 65°C) |
| Dimensions | 3.9 x 1.9 x 0.8" (9.9 x 4.8 x 2 cm) |
| Weight | 2.8 oz (80 g) |
