Description
- 1.7GHz Extreme Temperature Transmitter
- Designed for Military Applications
- -40�F to 167�F Temperature Range
- 1700MHz - 1850MHz Frequencies
- 8 On Board Selectable Channels
- 500mW of RF Power
- 3 Mile Range Over the Air
- SMA Antenna Connector
- RCA F Video Connector
- WFM Modulation

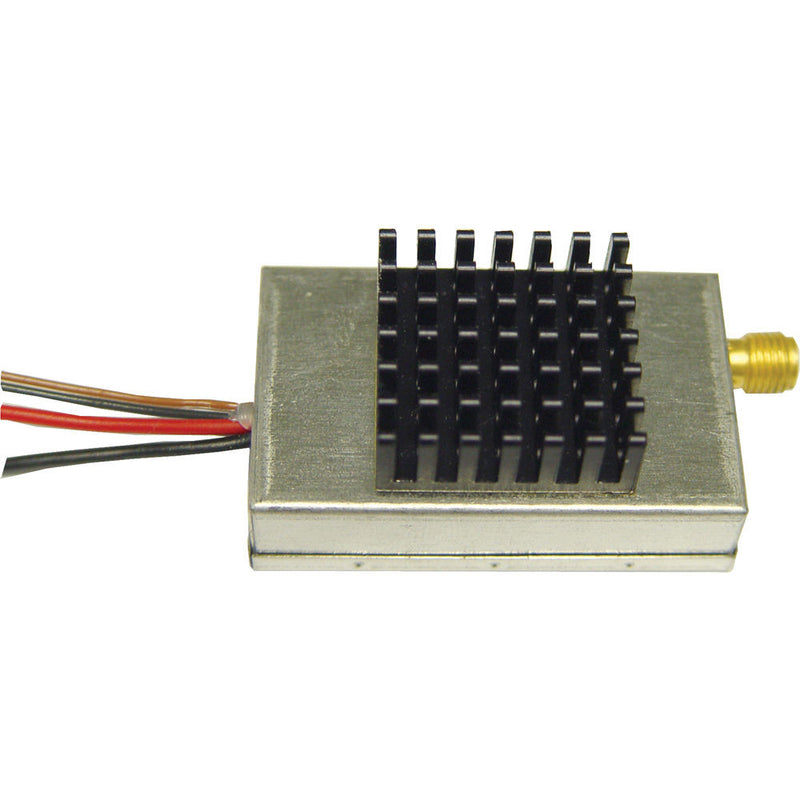

This 6V version of the MX-1700D/6 from RF-Video is a 1.7GHz audio and video transmitter designed for military applications in extremely low or high temperatures. It features 8 on board selectable channels and offers 500mW of RF power allowing a 3 mile range over the air. Up to 8 systems can be used in the same area simultaneously.
- Key Features
-
- -40�F to 167�F temperature range
- 1700MHz - 1850MHz operating frequencies
- Works on 6V DC power
- SMS antenna connector
- RCA F video connector
- WFM modulation
- 2% video distortion
- Matching Receivers
-
- VRX-1700
- VRX-1700T
- VRX-17LD with LCD display (supports 1700MHz - 2100MHz)
- RMX-2000 with LCD display (supports 900MHz - 2000MHz)
- RX-2000LCD TV Receiver (supports 1700MHz - 2000MHz)
In the Box
RF-Video MX-1700D/6 6V Audio / Video Transmitter
- Limited 2-Year Warranty
| Operating Frequencies | 1700 - 1850 MHz |
| Transmission Type | FM, Crystal referenced, synthesized phase locked loop. Frequency controlled by microprocessor. |
| Frequency Stability | � 0.003% |
| DC Voltage | 6 V DC |
| RF Power | 500 mW |
| Spurious & Harmonic Response | < 50 dBc |
| Minimum Required Voltage | 5 V |
| Battery Power | 6 V |
| Video Distortion | 2% |
| Maximum Range | 3 miles (5 km) over the air |
| Video Format | PAL, NTSC |
| Current Consumption | 450 mA / 6 V |
| Antenna | N/A |
| Antenna Connector | SMA |
| Audio Modulation Type | FM Maximum Deviation: � 75 kHz System Signal to Noise Ratio at 50 kHz Deviation: 65 dBA Pre & De-emphasis: 75� Second |
| Impedance | 50 ohms |
| Video Connector | RCA F |
| Video Impedance | 75 ohms |
| Video Level | 1 V |
| Video Deviation | � 6 MHz (adjustable from �1 to �5 MHz) |
| Audio Level | 2 mV |
| Microphone Input Level | Full gain to minimum gain: -37 dB to -6 dB for � 50 kHz deviation (5 mV) |
| Microphone Input Impedance | 2 k Ohms |
| Power for Electret Microphones (Switchable) | +9 VDC @ 1 mA max. |
| Line Input | Full gain to minimum gain: -4 dB to +22 dB for � 75 kHz deviation |
| Line Input Impedance | 10 k Ohms |
| Frequency Response | At 20 dB below full deviation: 40 Hz to 15 kHz +1, -3 dB, 60 Hz to 10 kHz � 1 dB (Option: may be extended to -3 @ 30 kHz) |
| Total Harmonic Distortion | Before limiting: 0.5% at 400 Hz (0.25% typical) |
| Audio Carrier Offset from Video | 6.0 MHz |
| Temperature Range | -40 to 167�F (-40 to 75�C) |
| Dimensions | 1.7 X 1 X 0.3" (4.3 x 2.5 x 0.8 cm) |
| Weight | 0.88 oz (25 g) |
