Description
- Designed for Military Applications
- Works in Extreme Temperatures
- 10W RF Output Power
- 15 Mile Transmission Range
- Operates on 5.8 GHz Frequency Band
- 8 Selectable Channels
- Supports 12V-16V DC Power
- 3480 mA Current Consumption

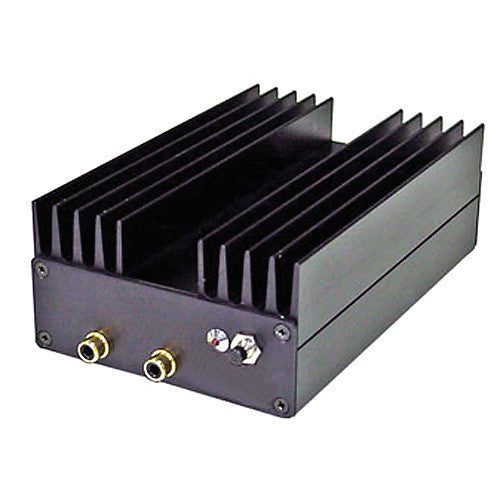

Designed for military applications, the RF-Video LX-5800/H10 is a 10W RF power video transmitter offering a 15 mile transmission range and capable of working in extreme low and high temperatures. It operates on the 5.8 GHz frequency band within 8 selectable channels. A high gain antenna is required to achieve the maximum transmission range.
-
- Supports 12-16V DC power
- 3840 mA current consumption
- RCA video connector
In the Box
RF-Video LX-5800/H10 10W Audio/Video Tramsmitter 5.8 GHz
- Limited 1-Year Warranty
| Operating Frequencies | 5700-5800 MHz |
| Number of Channels | 8 selectable channels |
| DC Voltage | 12-16 V |
| RF Power Output | 10 W |
| Minimum Required Voltage | 12 V |
| Battery Power | 12.6 V |
| Video Distortion | 3% |
| Maximum Range | Up to 15 miles (24 km) (using a high gain antenna) |
| Video Format | PAL, NTSC |
| Current Consumption | 3480 mA / 12 V |
| Antenna Connector | SMA |
| Impedance | 50 ohms |
| Video Connector | RCA F |
| Video Impedance | 75 ohms |
| Audio Level | 300 mV |
| Video Level | 1 V |
| Modulation | WFM |
| Temperature Range | -4 to 167°F (-20 to 75°C) |
| Dimensions | 4 x 6 x 2" (10.2 x 15.2 x 5 cm) |
| Weight | 1.4 lb (0.65 kg) |
