Description
- 1.7GHz Extreme Temperature Transmitter
- Designed for Military Applications
- -40�F to 172�F Temperature Range
- 1730MHz - 1850MHz Frequencies
- 8 Agile Selectable Channels
- 3W of RF Power
- 5 Mile Range Over the Air
- SMA Antenna Connector
- RCA F Video Connector
- WFM Modulation

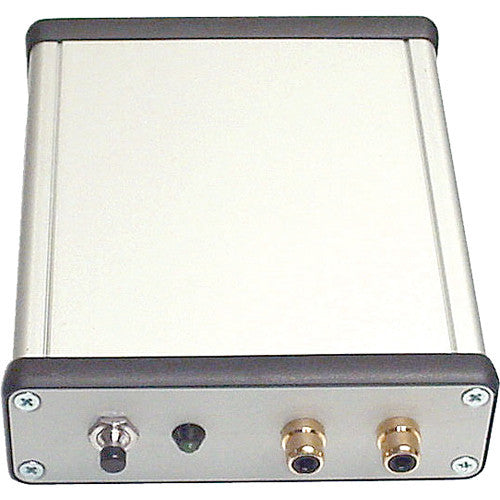

The LX-1700/3 from RF-Video is a 1.7GHz audio and video transmitter designed for military applications in extremely low or high temperatures. It features 8 selectable agile channels and offers 3W of RF power allowing a 5 mile range over the air.
- Key Features
-
- -40°F to 172°F temperature range
- 1730MHz - 1850MHz operating frequencies
- Operates between 12V and 16V
- SMA antenna connector
- RCA F video connector
- WFM modulation
- 3% video distortion
- Matching Receivers
-
- VRX-1700
- VRX-1700T
- VRX-17LD with LCD display (supports 1700MHz - 2100MHz)
- RMX-2000 with LCD display (supports 900MHz - 2000MHz)
- RX-2000LCD TV Receiver (supports 1700MHz - 2000MHz)
In the Box
RF-Video LX-1700/3 3W Audio / Video Transmitter
- Limited 2-Year Warranty
| Operating Frequencies | 1730 - 1850 MHz |
| DC Voltage | 12 - 14 V |
| RF Power | 3 W |
| Minimum Required Voltage | 10 V |
| Battery Power | 12 V |
| Video Distortion | 3% |
| Maximum Range | 5 miles (8 km) over the air |
| Video Format | PAL, NTSC |
| Current Consumption | 550 mA / 12 V |
| Antenna | N/A |
| Antenna Connector | SMA |
| Impedance | 50 ohms |
| Video Connector | RCA F |
| Video Impedance | 75 ohms |
| Video Level | 1 V |
| Audio Level | 300 mV |
| Modulation | WFM |
| Temperature Range | -40 to 172°F (-40 to 78°C) |
| Dimensions | 4.7 x 3 x 1.1" (12 x 7.6 x 2.8 cm) |
| Weight | 0.55 lb (250 g) |
