Description
- 1W RF Output Power
- 1-2 Mile Transmission Range
- Works in 25MHz-1000MHz Frequencies
- Input Resolutions Up to 1080i
- VGA, HDMI, Component, Composite Inputs
- Uncompressed Signals Encoded in MPEG2
The RF-Video HD-1000/1 is a fully synthesized audio/video transmitter for UHF frequencies from 25MHz-1000MHz. It outputs 1W RF power and offers a 1-2 mile transmission range in resolutions up to 1080i. Video inputs consist of VGA, HDMI, Component, and Composite. Uncompressed signals are encoded in MPEG2.
RF-Video recommends an Omni Dipole antenna, not included.
In the Box

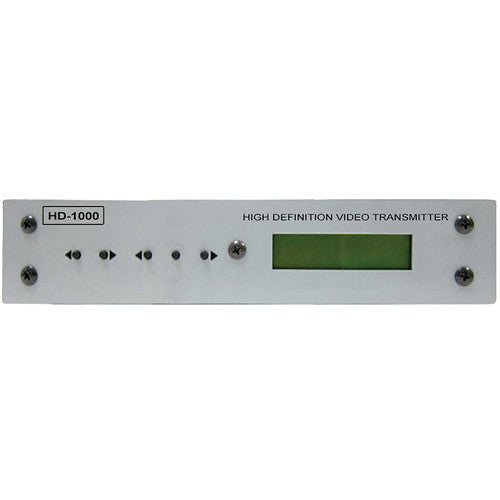

RF-Video HD-1000/1 Digital UHF Video Transmitter
- Power Supply
- Limited 1-Year Warranty
| Operating Frequencies | 25-1000 MHz |
| Video Inputs | VGA, HDMI, Composite BNC (75 ohms), Component RCA |
| DC Voltage | 12 VDC |
| RF Power | 1 W |
| Input Resolution | 480i, 480p, 720p, 1080i |
| Battery Power | 12.6 V |
| Transmission Range | 1-2 miles (1.6-3.2 km) |
| Video Format | PAL, NTSC |
| Current Consumption | 2500 mA / 12 V |
| Antenna Connector | BNC, 50 ohm impedance |
| Video Level | 1 V |
| Audio Input | 300 mV |
| Modulation | WFM |
| Output Level Adjustment Range | 15 dB |
| Phase Noise | -95 dBc @ 10 kHz offset |
| Broadband Noise | -75 dBc @ > �12 MHz |
| MER | > 40 dB equalized |
| Frequency Response | < 1 dB |
| Carrier Suppression | > 40 dB |
| I/Q in Balance | < 1� |
| Output Level Accuracy | �1 dB |
| Operating Temperature | -40 to 167°F (-40 to 75°C) |
| Dimensions | 2.5 x 1.5 x 0.75" (6.4 x 3.8 x 1.9 cm) |
| Weight | 2.75 lb (1.25 kg) |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 369234.6 |
| 3-5 | ₹ 365466.9 |
| 5-10 | ₹ 357931.5 |
| 10+ | ₹ 350396.1 |
Bulk discount will be automatically applied during checkout based on quantity.
