Description
- 12V-32V DC Medium Power Version
- PAL, NTSC, SECAM Compatible
- 600 ft Transmission
- 40MHz - 928MHz Adjustable Frequency
- LCD Frequency and Carrier Display
- Push Button Selection
- Antenna Included
- Built-In Audio Portion
- Built-In Switching Power Supply
- Built-In Video Filters

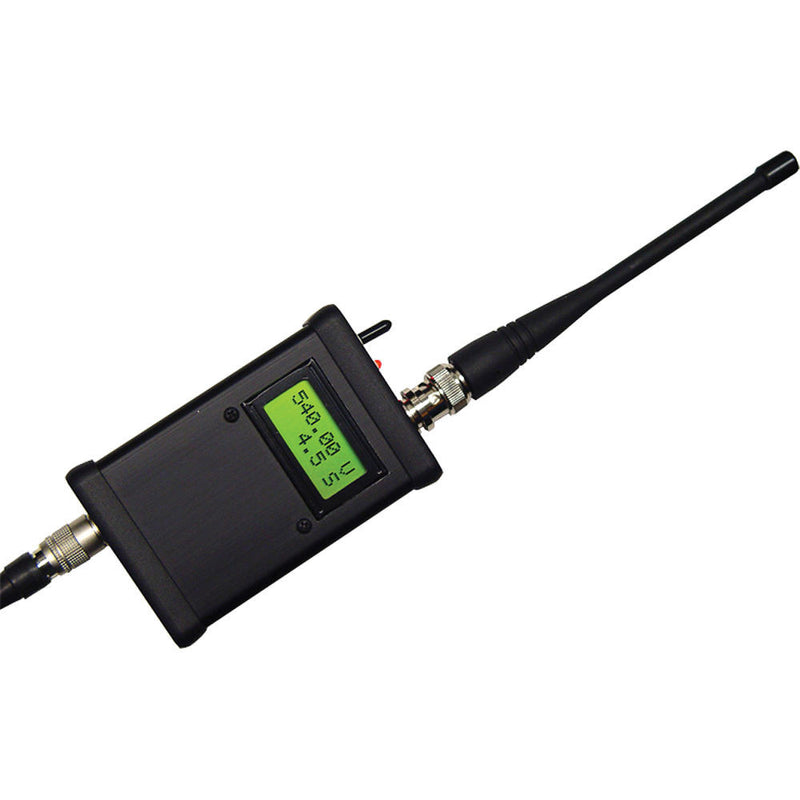

The RF-Video GX-1000 is a 12V-32V medium power transmitter designed for the film and TV production industries but suitable for all relevant industries. It operates within the 40 MHz to 928 MHz frequencies and offers a transmission range of up to 600 ft.
An LCD displays the UHF and carrier frequencies particular to the TV system/country of choice (PAL, NTSC, and SECAM supported). The RF section allows you to cover all channels without any re-tuning. Channels are selectable by simple push buttons.
RF-Video recommends using their M-806 receiver. A matching antenna that covers the entire UHF TV band is included. Recommended DC voltage is 12V.
-
- 12V-32V medium power
- 250 mW RF power
- Built-in audio portion (audio adjustable on back panel)
- Built-in switching power supply
- Built-in video filters
- 330 mA current consumption
In the Box
RF-Video GX-1000 Video Sender for All UHF Frequencies
- Rubber Ducky Antenna
- Limited 1-Year Warranty
| Operating Frequencies | 40 - 928 MHz continuous operation |
| Channel | All TV channels 14-69 UHF AIR, cable UHF channels, 900 MHz band |
| DC Voltage | 12-32 VDC |
| Transmission Range | 600 ft (183 m) (line-of-sight) |
| RF Power | 250 mW |
| Frequency Stability | +/-20 ppm |
| Video Distortion | 2% |
| Video Format | PAL, NTSC, SECAM |
| Current Consumption | 330 mA |
| Antenna Connector | BNC |
| Impedance | 50 ohms |
| Video Connector | Hirose |
| Video Impedance | 75 ohms |
| Audio | 4.5/5/5.5/6 MHz (adjustable on back panel) |
| Video Level | 1 V |
| Modulation | Negative AM |
| Temperature Range | 5 to 149°F (-15 to 65°C) |
| Dimensions | 3.2 x 2 x 0.9" (8.1 x 5.1 x 2.3 cm) |
| Weight | Approx. 3.2 oz (90 g) |
