| ₹ 77670.0 includes GST and import duties. | |
| B2B customers can avail ₹ 11844.68 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

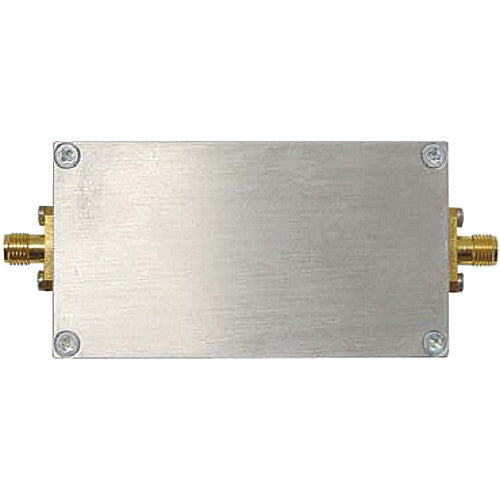

RF-Links LNAMP-2224 Overview
The RF-Video LNAMP-2224 Special Low-Noise Amplifier is designed for use with 2200 to 2400 MHz receivers (not for transmitters). It increases the gain of your receiver without adding large antennas. You can connect any 2.2 to 2.4 GHz antenna to an input connector. This low-noise amplifier will give you an extra 30 dB gain in a 2.2 to 2.4 GHz band. The output connector is a male SMA type. This amplifier is used in applications including analog and digital transmission systems, laboratory and test equipment, and radar receivers.
In the Box
- RF-Links LNAMP-2224 Special Low-Noise Amplifier for 2200 to 2400 MHz Receivers
- Limited 1-Year Warranty
RF-Links LNAMP-2224 Specs
| Operating Frequency | 2200 to 2400 MHz |
| Voltage | 9 to 15 VDC |
| Gain | 30 dB |
| Input Power | Maximum 2 mW |
| Noise | Noise Factor: < 0.71 dB |
| Output | Out IP3: Typical +29 dBm @ 1300 MHz |
| Current Consumption | 80 mA |
| Antenna Connector | SMA |
| Impedance | 50 ? |
| Temperature Range | 131°F (55°C) |
| Filter | Built-in band-pass filter |
| Protection | Reverse polarity |
| Dimensions | 2.80 x 1.50 x 0.75" (7.11 x 3.81 x 1.91 cm) |
| Weight | 2.04 oz (58.00 g) |
RF-Links LNAMP-2224 Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 76116.6 |
| 3-5 | ₹ 75339.9 |
| 5-10 | ₹ 73786.5 |
| 10+ | ₹ 72233.1 |
Bulk discount will be automatically applied during checkout based on quantity.
