Description

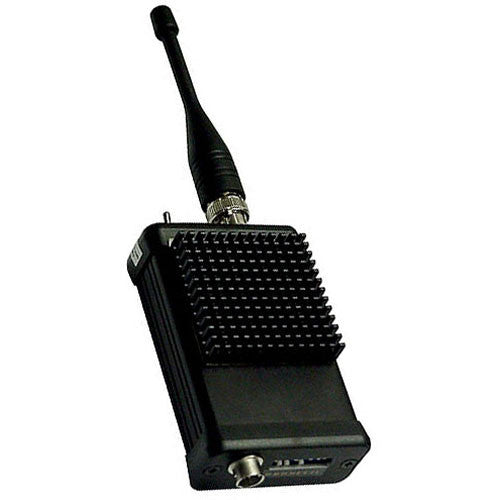

RF-Links GX-68 Overview
The RF-Video GX-68H is a high power transmitter capable of sending broadcast quality video wirelessly up to 3280 feet in an open area. Transmitted video can be received by any TV tuned to channels 21 to 69 and even some cable channels making it a very useful tool for Steadicam users as well as for general TV and film production applications.
Video sender for all UHF TV channels 21-69 and even some cable channels
Ultra compact and durable design with metal casing
Includes 2 matching antennas, covering all UHF TV bands
Wireless range up to 3280 feet line of sight
Perfect for Steadicam users
Integrated video filters for improved wireless transmission
Operates in extremely high and low temperatures
In the Box
- RF-Links GX-68H High Power Video Sender for All UHF TV Channels (3280 ft)
- 2 Matching antennas
- 1-Year Warranty
RF-Links GX-68 Specs
| Signal System | NTSC/PAL |
| Operating Frequency | 470-806 MHz |
| Modulation | Negative AM |
| Channels | TV channels 14-69 UHF AIR + cable UHF channels |
| RF Power Output | 250 mW |
| Antenna | BNC Connector (includes 2 rubber ducky antennas) |
| Impedance | 50 ohms |
| Wireless Range | Up to 3280 feet (1 km) line of sight |
| Video Input | Hirose professional connector |
| Audio Input | No |
| Power Requirements | 12-32 VDC (12 VDC for battery) |
| Power Consumption | 310 mA |
| Operating Temperature | 5 - 149°F (-15 ~ +65°C) |
| Dimensions | 2 x 0.9 x 3.2" (50.8 x 22.9 x 81.3mm) |
| Weight | 3.5 oz (100 g) |
Packaging Info
| Package Weight | 0.55 lb |
| Box Dimensions (LxWxH) | 6.9 x 4.2 x 2.2" |
