Description
RF-Links DX-17 Overview

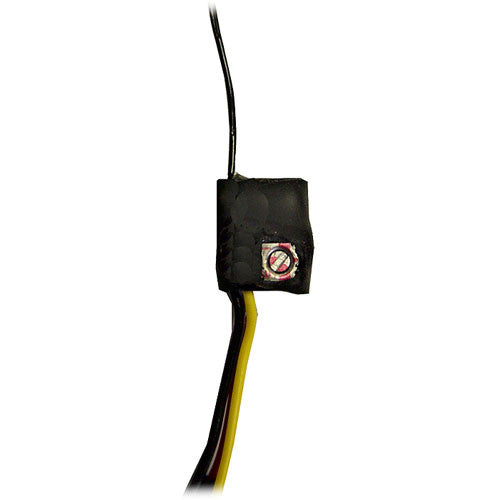

The RF-Video DX-17 is an ultra compact transmitter capable of sending outstanding quality video images wirelessly in the 1700-1800 MHz frequency range. Its absolutely small size makes it a particularly good choice for use in ultra small flying model aircraft. It is also a viable option for portable or hidden surveillance, exploratory, scientific and similar specialized monitoring applications.
Ultra compact video transmitter ideal for small model aircraft applications
Includes hardwired antenna
Operates on optional battery power
In the Box
- RF-Links DX-17 Ultra Compact 1700-1800 MHz Video Transmitter
- 1-Year Warranty
RF-Links DX-17 Specs
| Signal System | NTSC/PAL |
| Operating Frequency | 1700-1800 MHz |
| Channels | Single-channel |
| RF Power Output | 1mW |
| Modulation | WFM |
| Antenna | Wired |
| Impedance | N/A |
| Wireless Range | 1000 ft (305m) in open air |
| Video Input | Open wire |
| Audio Input | No |
| Power Requirements | 4-8 VDC (8 VDC for battery) |
| Power Consumption | 10mA |
| Operating Temperature | 32 - 122°F (0 - 50°C) |
| Dimensions | 0.3 x 0.2 x 0.3" (7.6 x 5.1 x 7.6mm) |
| Weight | 0.03 oz (1 g) |
