Description

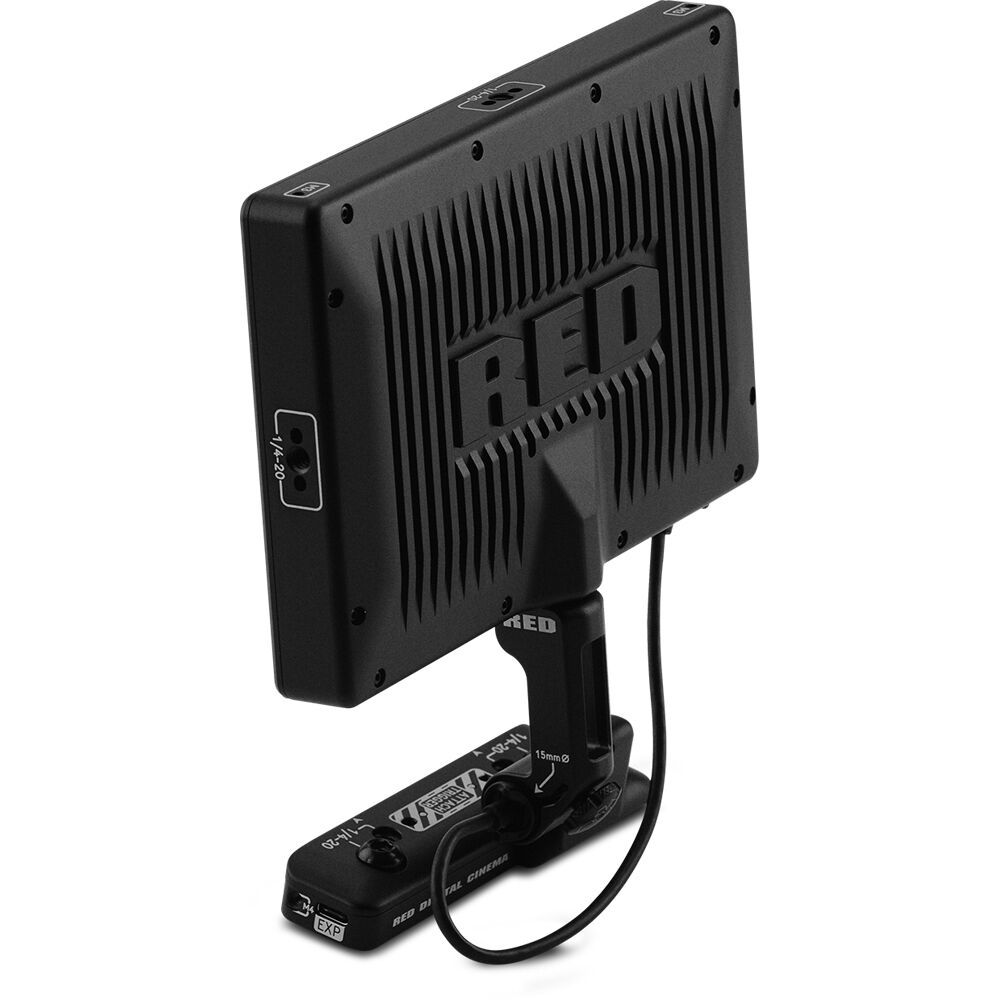

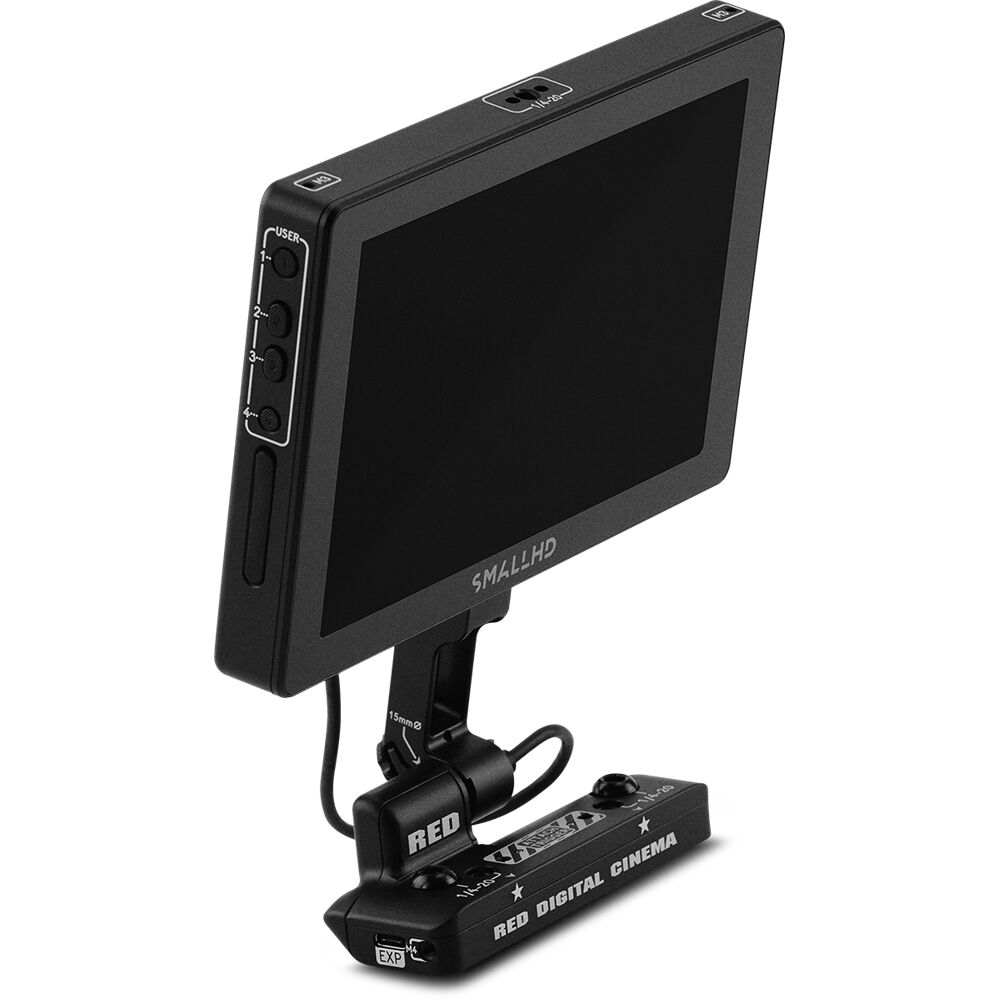

RED DIGITAL CINEMA DSMC3 RED 7" Touch Monitor Overview
Add a direct-mount onboard monitor to your DSMC3 camera rig with the DSMC3 RED Touch 7.0" LCD Monitor with Rigid Hinge from RED DIGITAL CINEMA. The RED Touch features daylight viewing, a wide 100% DCI-P3 color gamut, and touchscreen control for DSMC3 cameras, such as the V-RAPTOR 8K VV. The rigid hinge and arm enable you to apply more pressure for positioning the Touch for optimal viewing. The Touch monitor features 1920 x 1200 resolution, a 1250:1 contrast ratio, and 1300 cd/m² brightness for high-quality imaging.

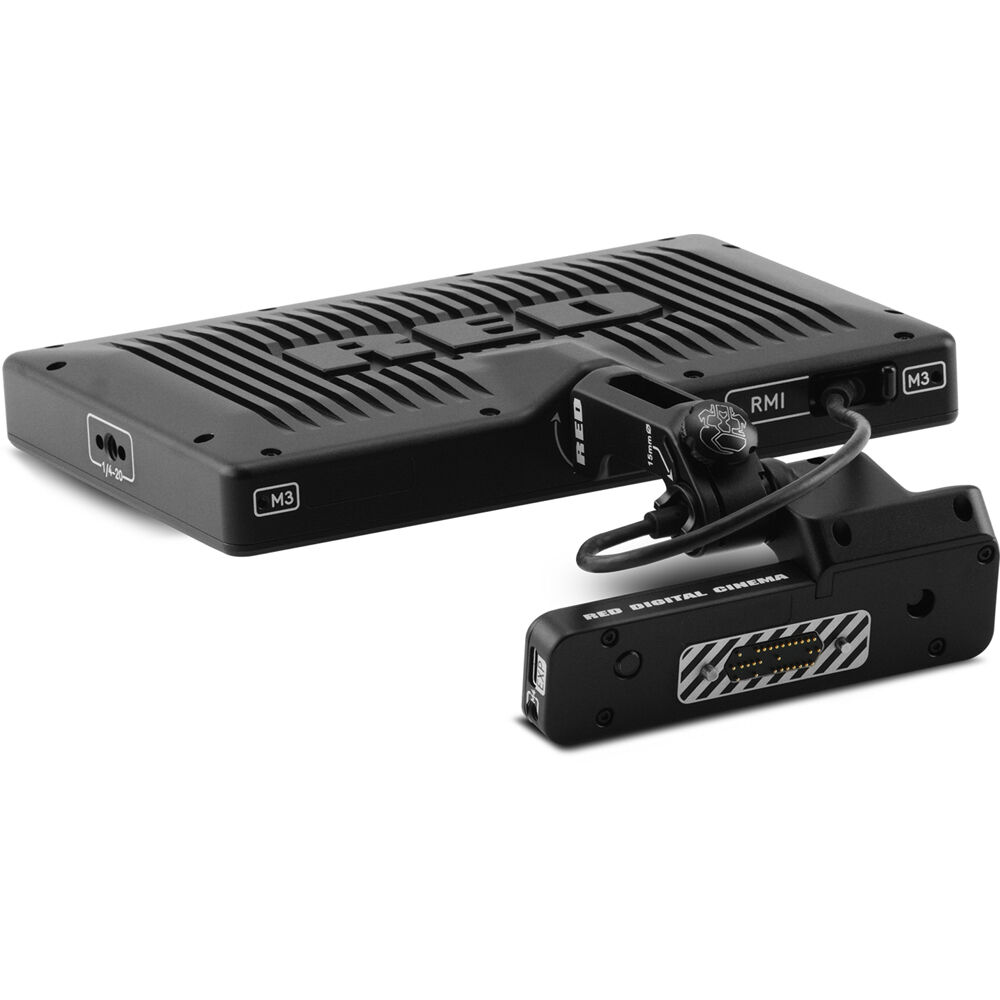

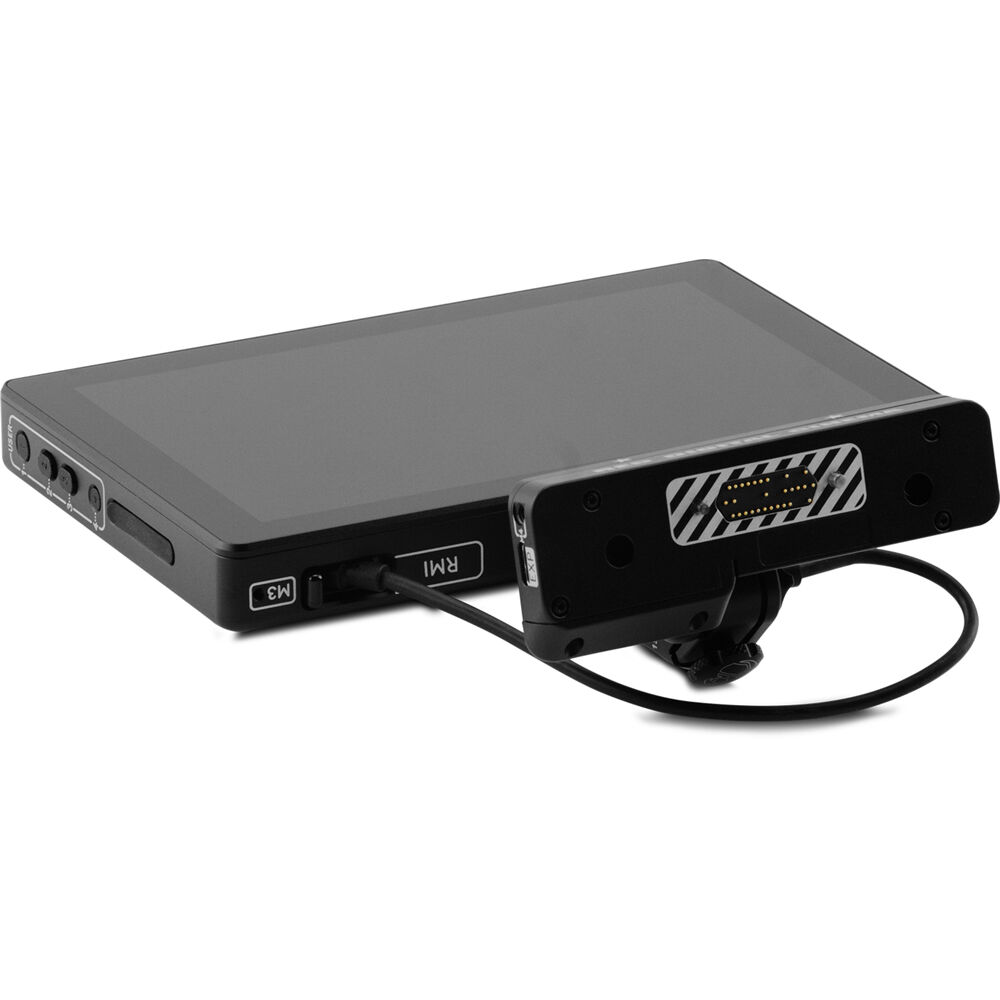

This monitor attaches directly to your DSMC3 BRAIN using its Pogo mount, which provides video, data, and power to the monitor from the camera. If you need to use the Pogo mount for another accessory, the monitor also features a locking USB-C connector that alternately allows you to pass video, data, and power to the camera. Note that the DSMC3 Touch monitor is not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.
Items Included
- RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge

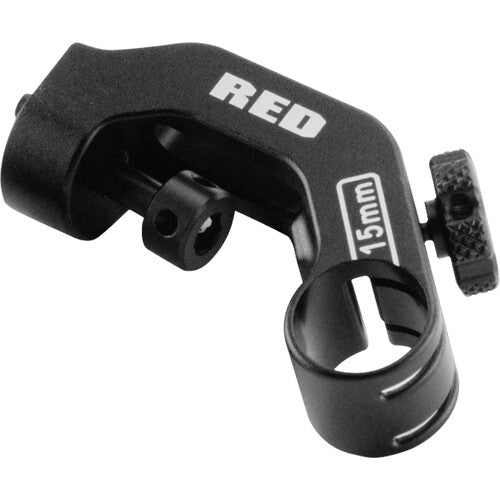

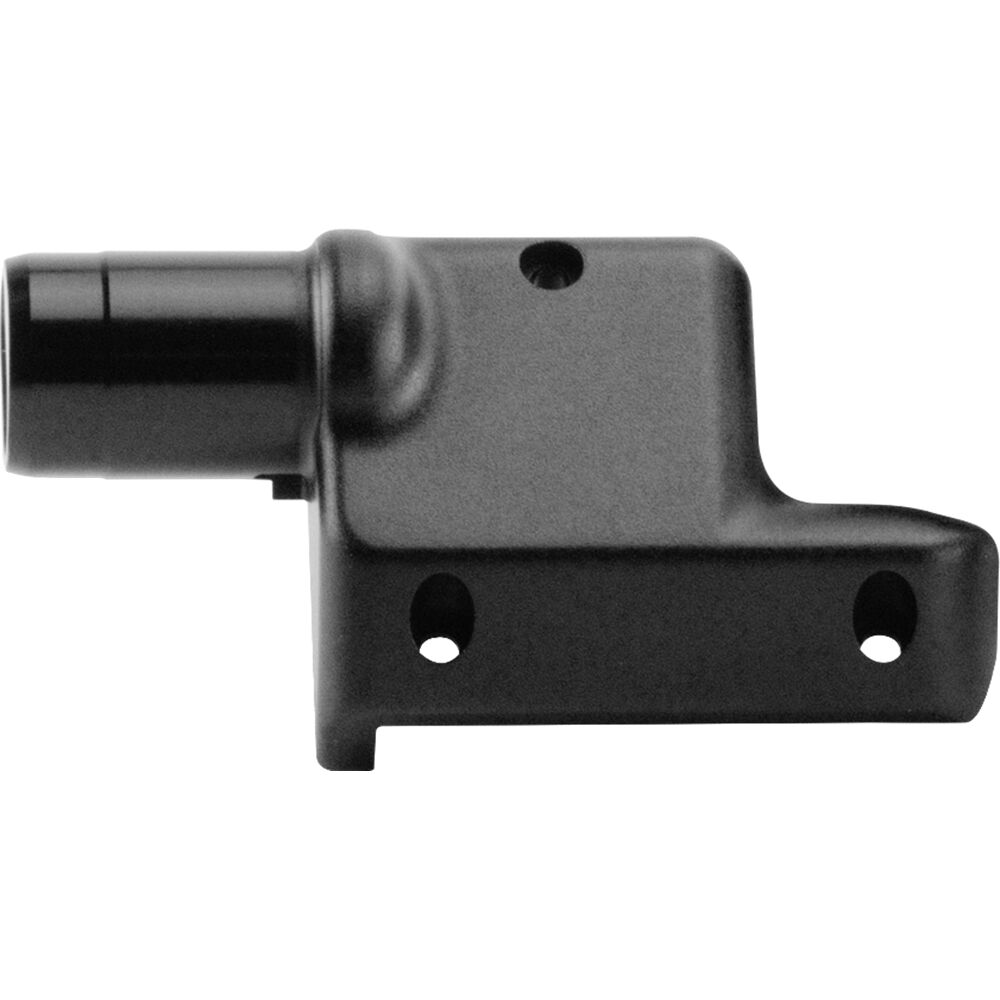

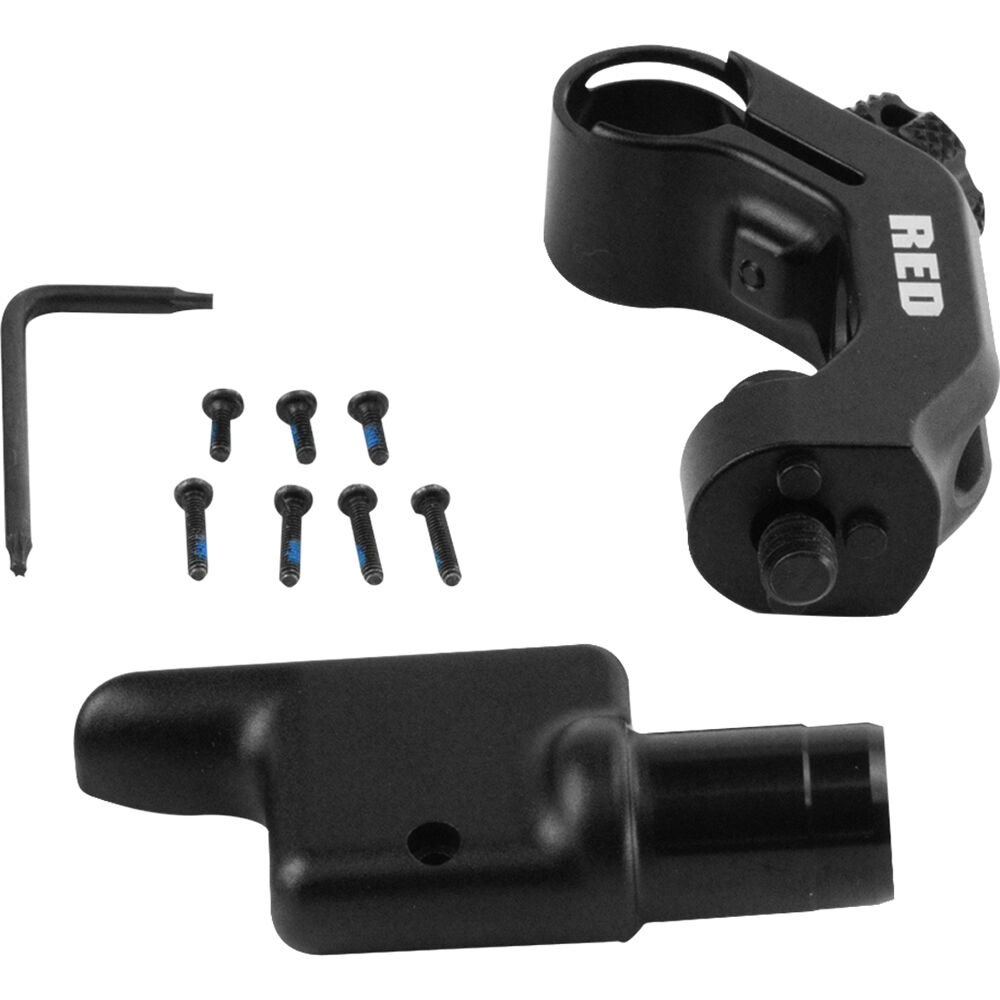

- Rigid Hinge Arm
- DSMC3 RMI Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
RED DIGITAL CINEMA DSMC3 RED 7" Touch Monitor Specs
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Screen Resolution |
1920 x 1200
|
| Inputs/Outputs |
1x USB-C Camera Input
|
| Mounting |
1x 1/4"-20 Female (Top)
1x 1/4"-20 Female (Bottom) 1x 1/4"-20 Female (Left) 1x 1/4"-20 Female (Right) |
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Screen Resolution |
1920 x 1200
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
160°
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1300 nits / cd/m2
|
| Contrast Ratio |
1250:1
|
| Color Support |
1.07 Billion Colors (8-Bit+FRC)
|
| Pixels Per Inch (ppi) |
322 ppi
|
| Finish |
Glossy
|
| Refresh Rate |
60 Hz
|
| Color Gamut |
100% DCI-P3
|
| Inputs/Outputs |
1x USB-C Camera Input
|
| Power Consumption |
18.3 W (Maximum)
|
| Operating Conditions |
32 to 100°F / 0 to 38°C up to 85% Humidity
|
| Storage Conditions |
32 to 248°F / 0 to 120°C up to 85% Humidity
|
| Mounting |
1x 1/4"-20 Female (Top)
1x 1/4"-20 Female (Bottom) 1x 1/4"-20 Female (Left) 1x 1/4"-20 Female (Right) |
| Material of Construction |
Aluminum
|
| Dimensions |
7.1 x 4.7 x 1.1" / 180 x 118.7 x 28.8 mm
|
| Weight |
1.25 lb / 568.00 g
|
| Package Weight |
2.515 lb
|
| Box Dimensions (LxWxH) |
9.8 x 9.7 x 2.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 404887.0 |
| 3-5 | ₹ 400755.5 |
| 5-10 | ₹ 392492.5 |
| 10+ | ₹ 384229.5 |
Bulk discount will be automatically applied during checkout based on quantity.
