Description
MiNE Media CEDAR-C3 Overview

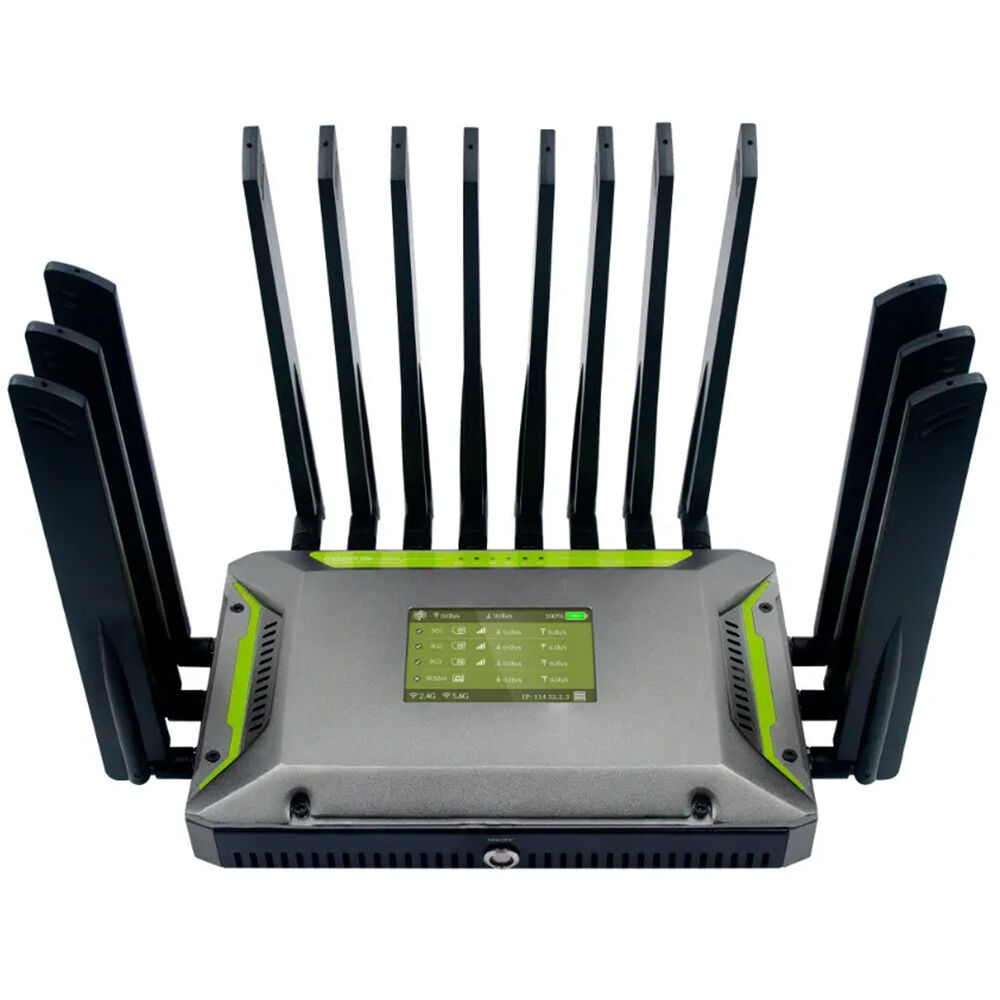

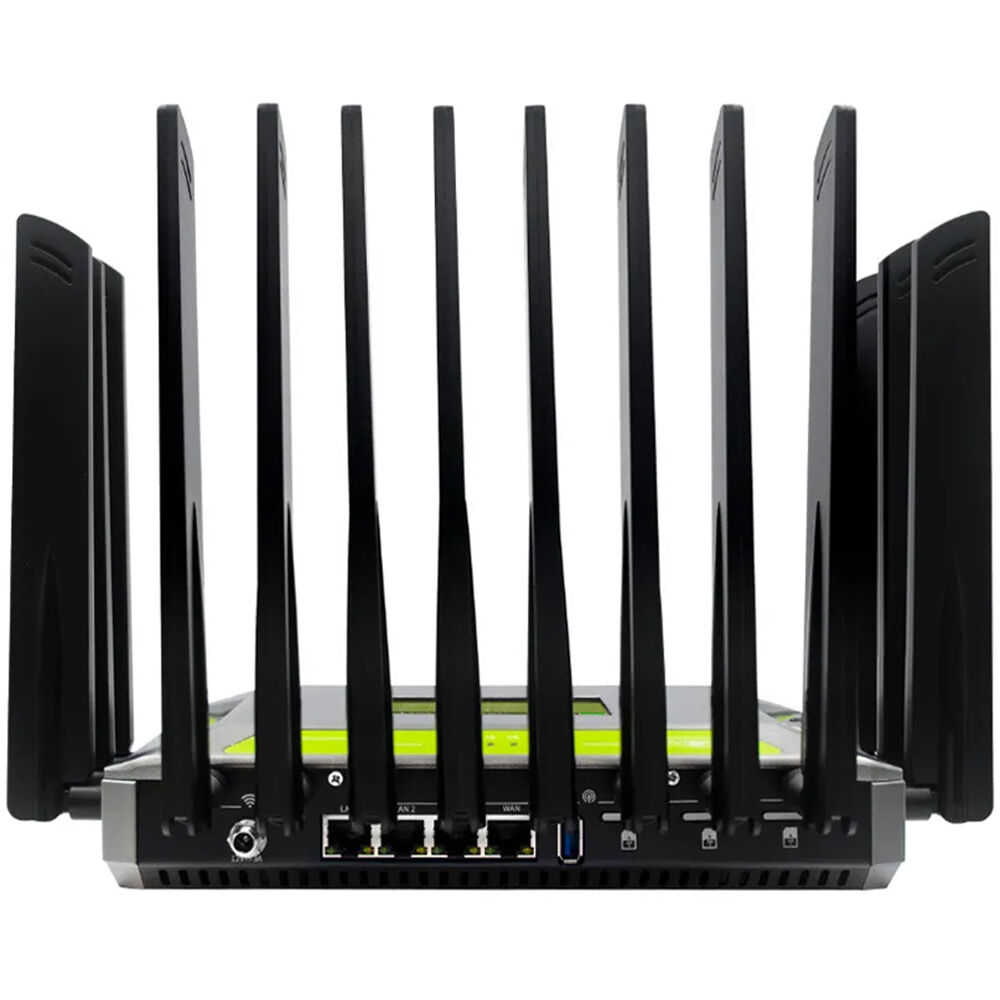

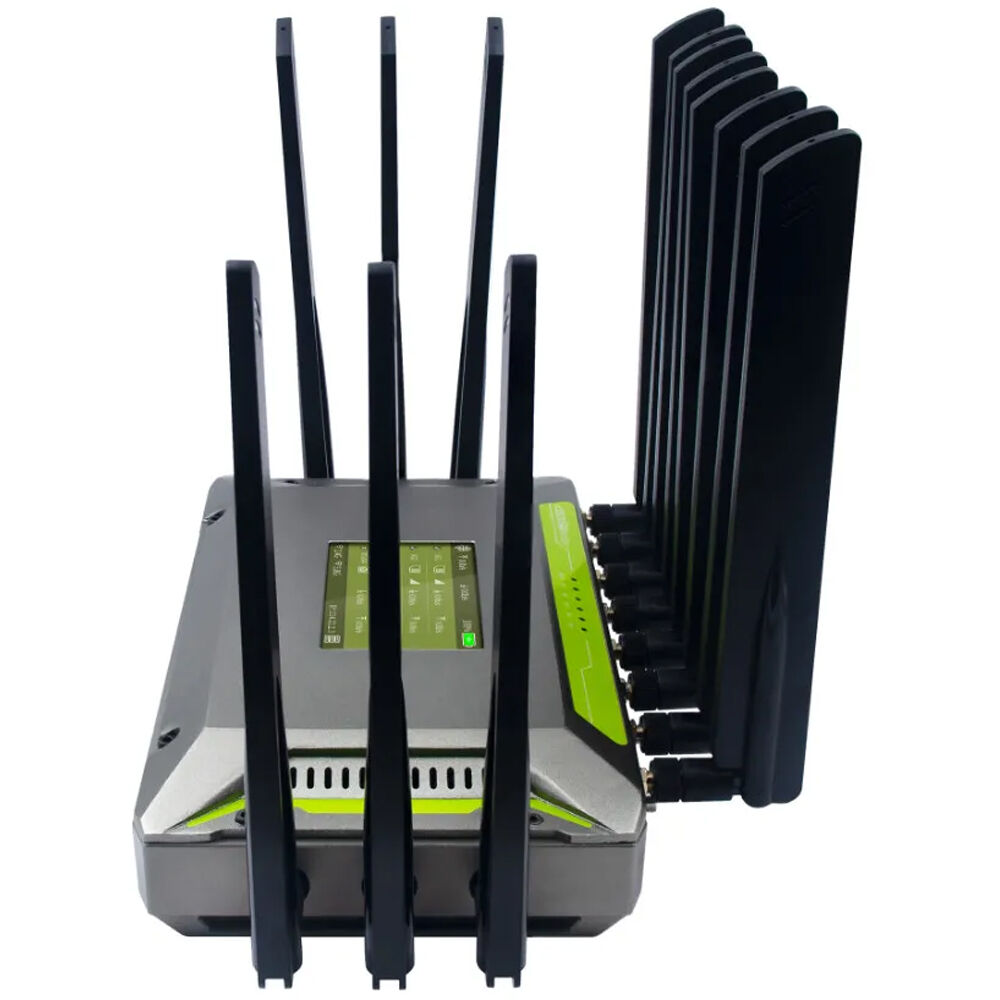

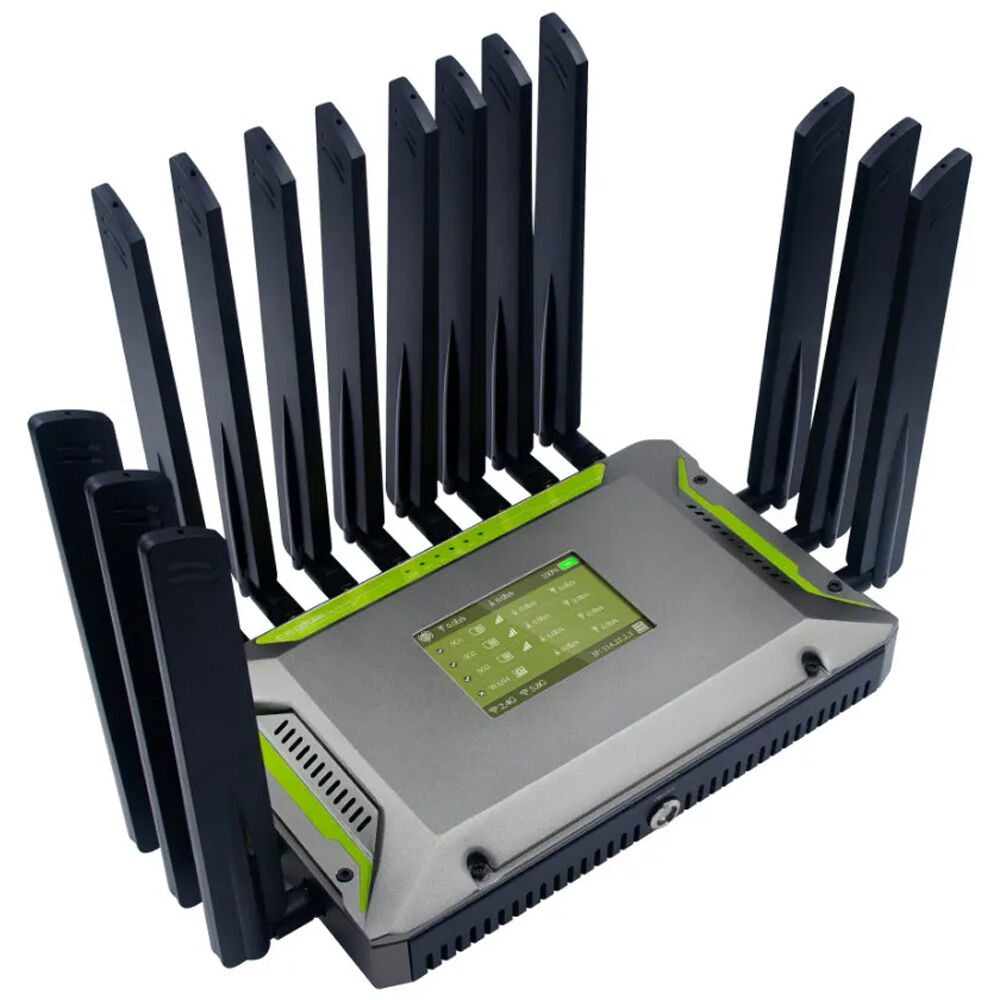

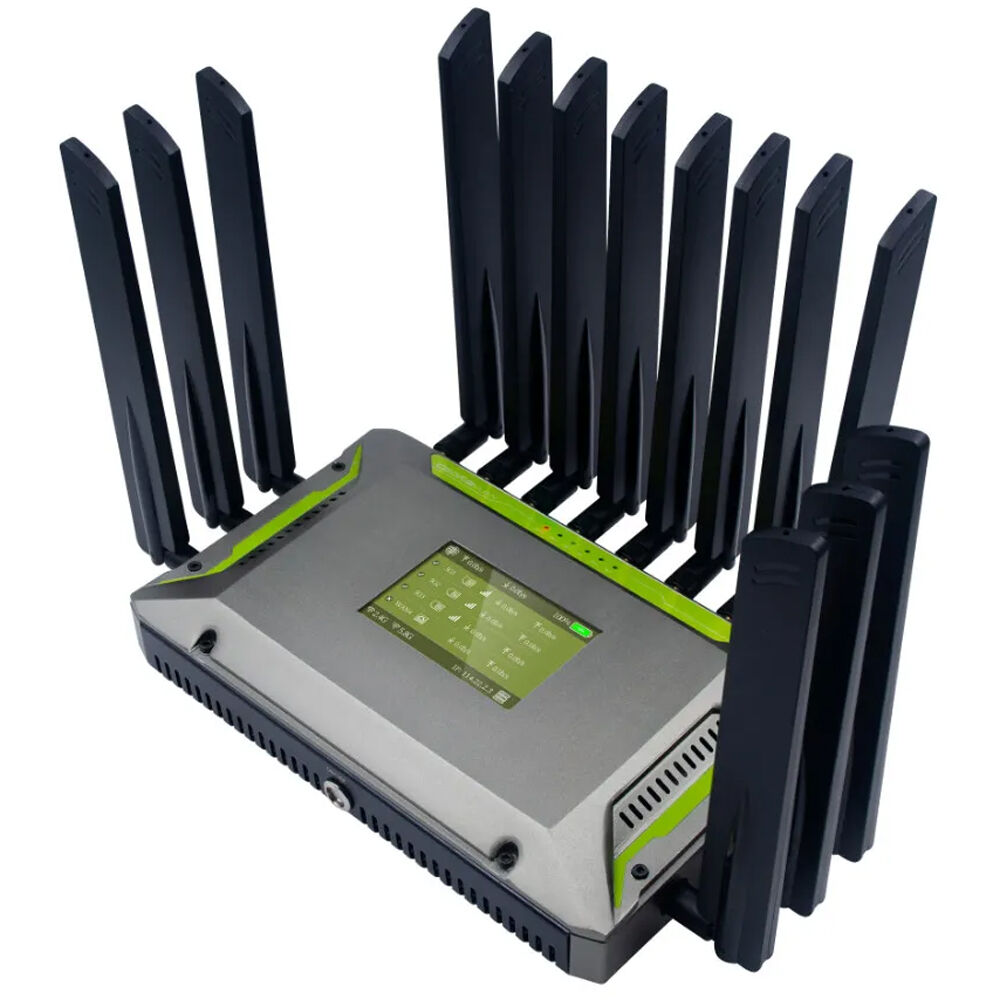

Balance a variety of network connections to create a single video/data pipeline using the Cedar C3 4G/5G Network Bonding Router from MiNE Media. This router supports multiple network connections, making it especially suitable for outdoor broadcasting, emergency command, and port communications. The Cedar C3 supports three channels of 4G/5G modem modules, dual-frequency 2.4/5 GHz Wi-Fi 6 at rates up to 1800 mb/s, four GbE ports, and external network access. A 3.5" LCD displays the battery level, network speed, Wi-Fi status, and more. Power the Cedar 3 router via its internal battery for up to six to eight hours or use the 12 VDC adapter.
In the Box
- MiNE Media Cedar C3 4G/5G Network Bonding Router
- 14 x Antenna
- Power Adapter
- Carrying Case
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
MiNE Media CEDAR-C3Specs
| CPU |
Qualcomm ARM-A53 Quad-Core 1.8 GHz (Qualcomm IPQ6010)
|
| Memory |
DDR4: 2 GB
SPI Flash: 8 MB EMMC: 4 GB |
| Compatibility |
3 x 5G LTE Modules
3 x 4G LTE Modules |
| Wi-Fi |
Wi-Fi 6
2.4 GHz (600 Mb/s) 5.8 GHz (1200 Mb/s) |
| Ethernet |

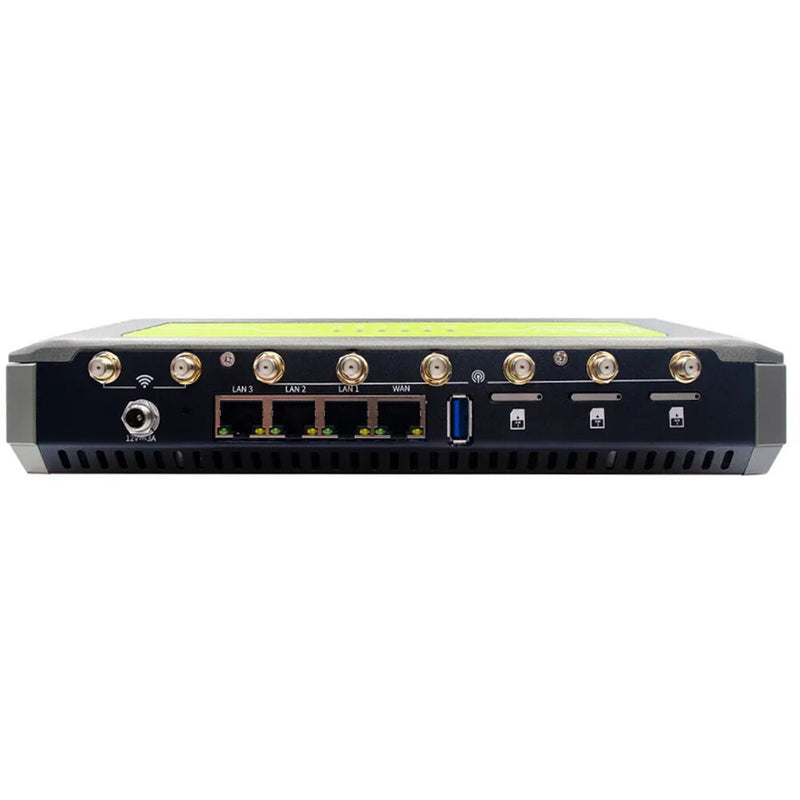

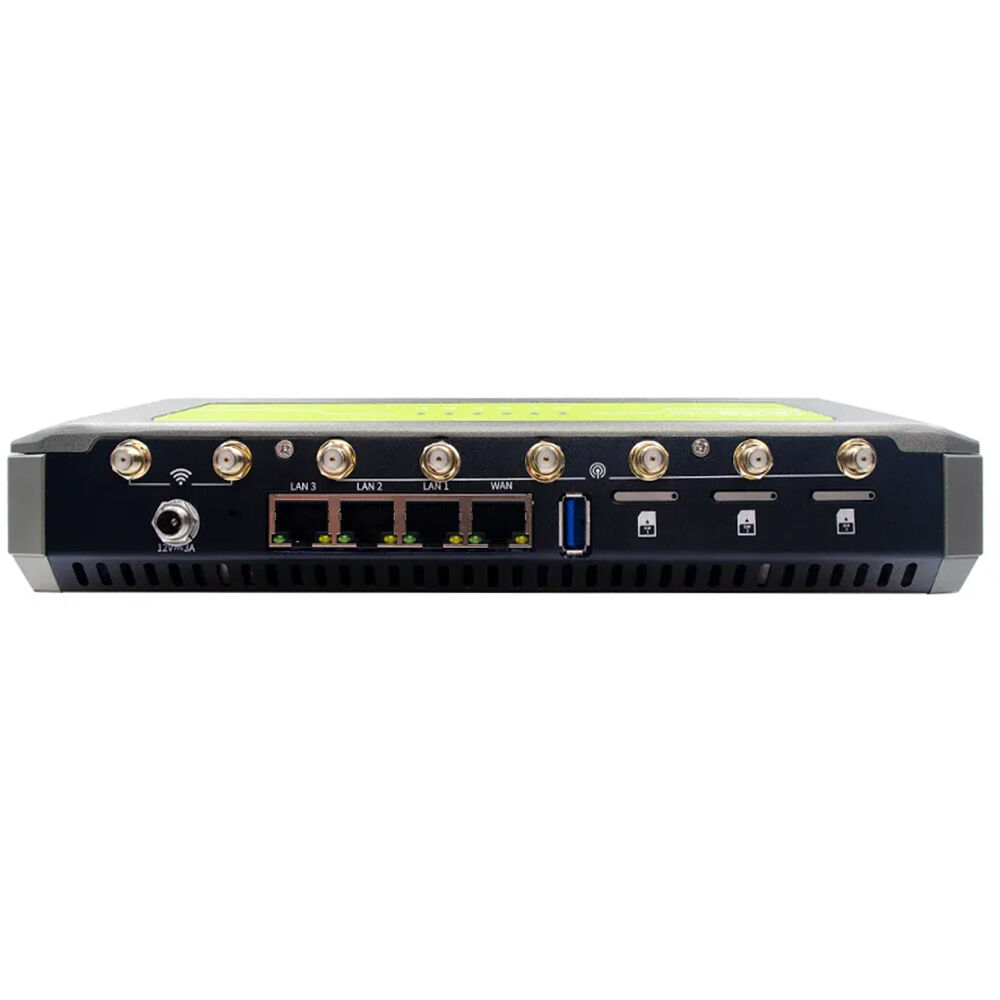

4 x RJ45 GbE Ports Total Wired Bandwidth: 6.25 Gb/s
|
| Antenna Type |
14 x External
|
| Range |
49.2 ' / 15 m
|
| Panel Type |
LCD
|
| Display Size |
3.5"
|
| Touchscreen |
No
|
| Wireless |
Wi-Fi 6 (802.11ax)
*Built-In |
| Power Source |
AC Adapter with Power Brick (Included)
|
| Battery Type |
1x Internal Rechargeable Lithium-Ion
|
| DC Input Power |
12 VDC at 3 A
|
| Power Consumption |
15 W (Maximum)
|
| Mounting |
1x 1/4"-20 Thread
|
| Color |
Gray
|
| Material of Construction |
Aluminum
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
7.485 lb
|
| Box Dimensions (LxWxH) |
13.15 x 11 x 5.15"
|
