| ₹ 214015.0 includes GST and import duties. | |
| B2B customers can avail ₹ 32637.29 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Kinefinity EAGLE SDI Overview

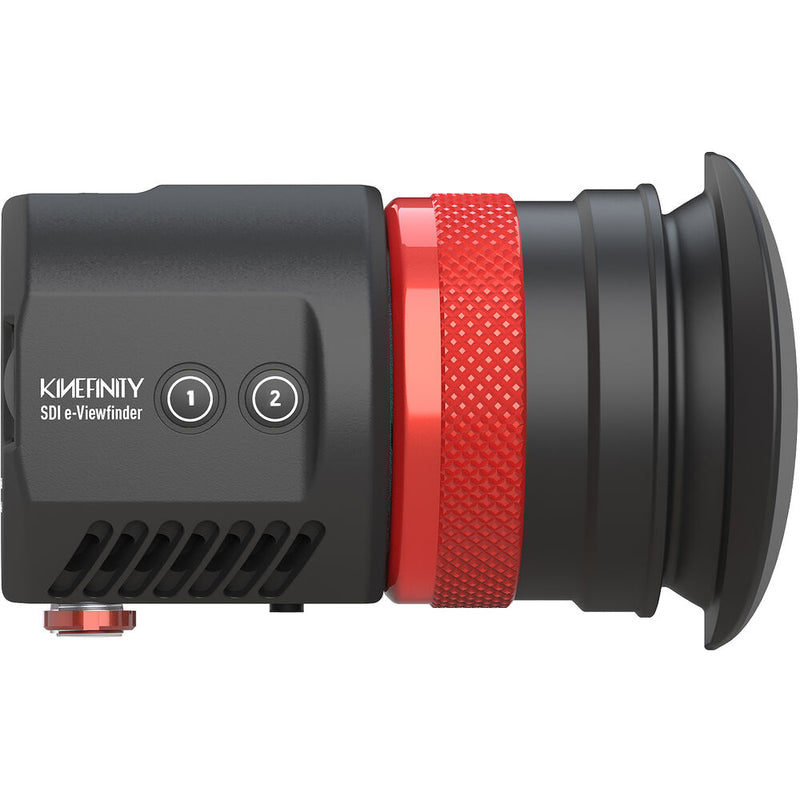

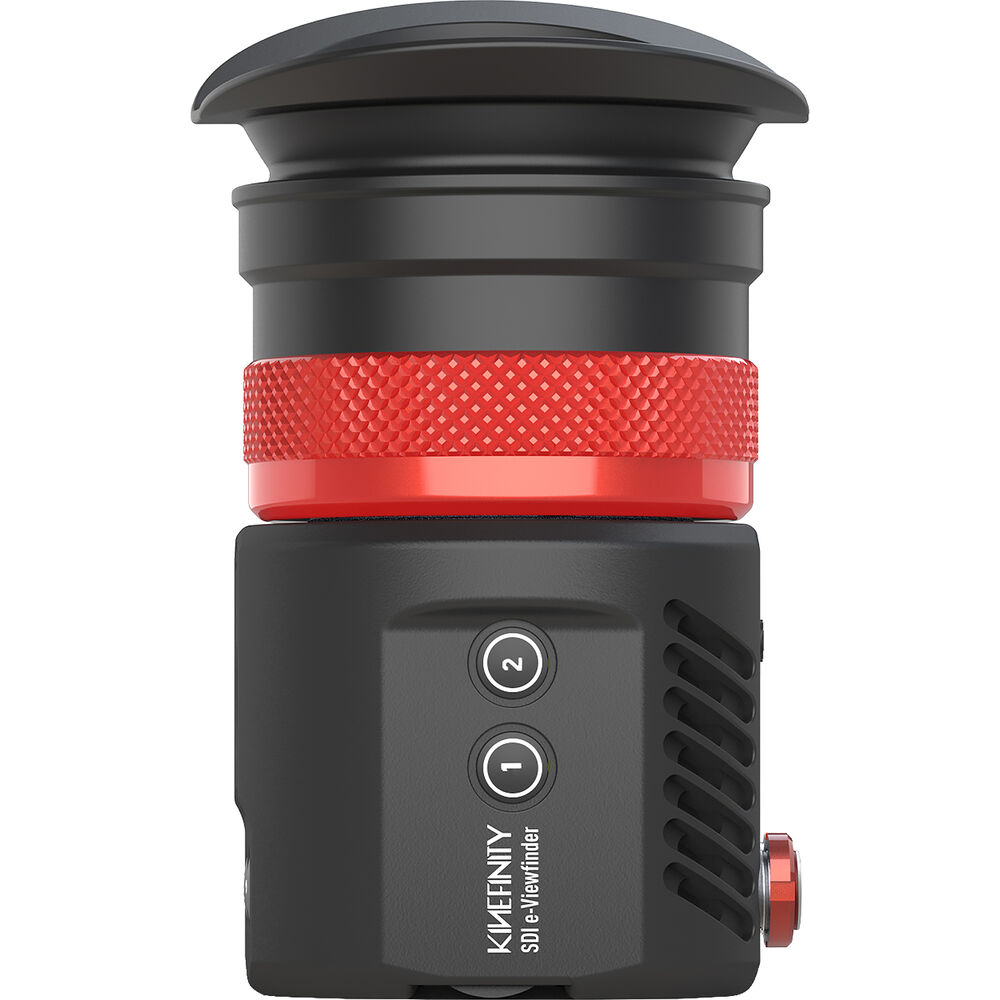

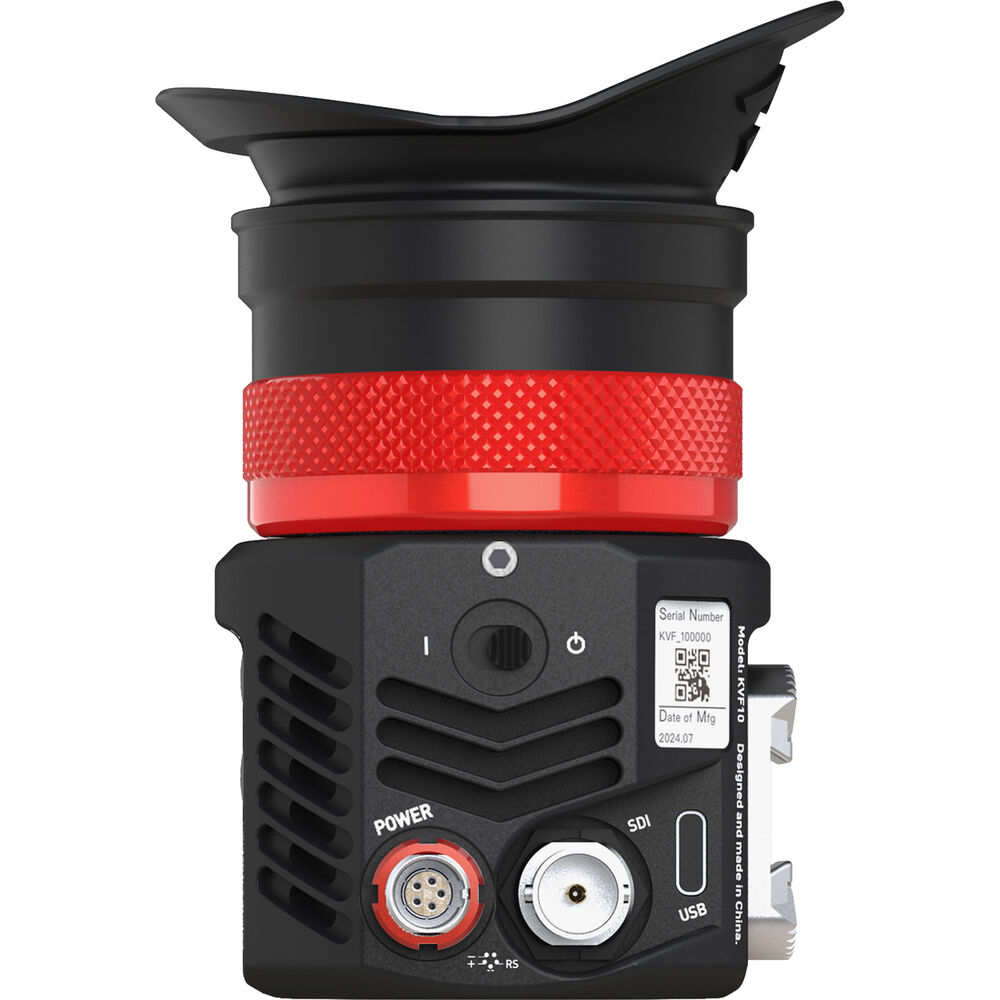

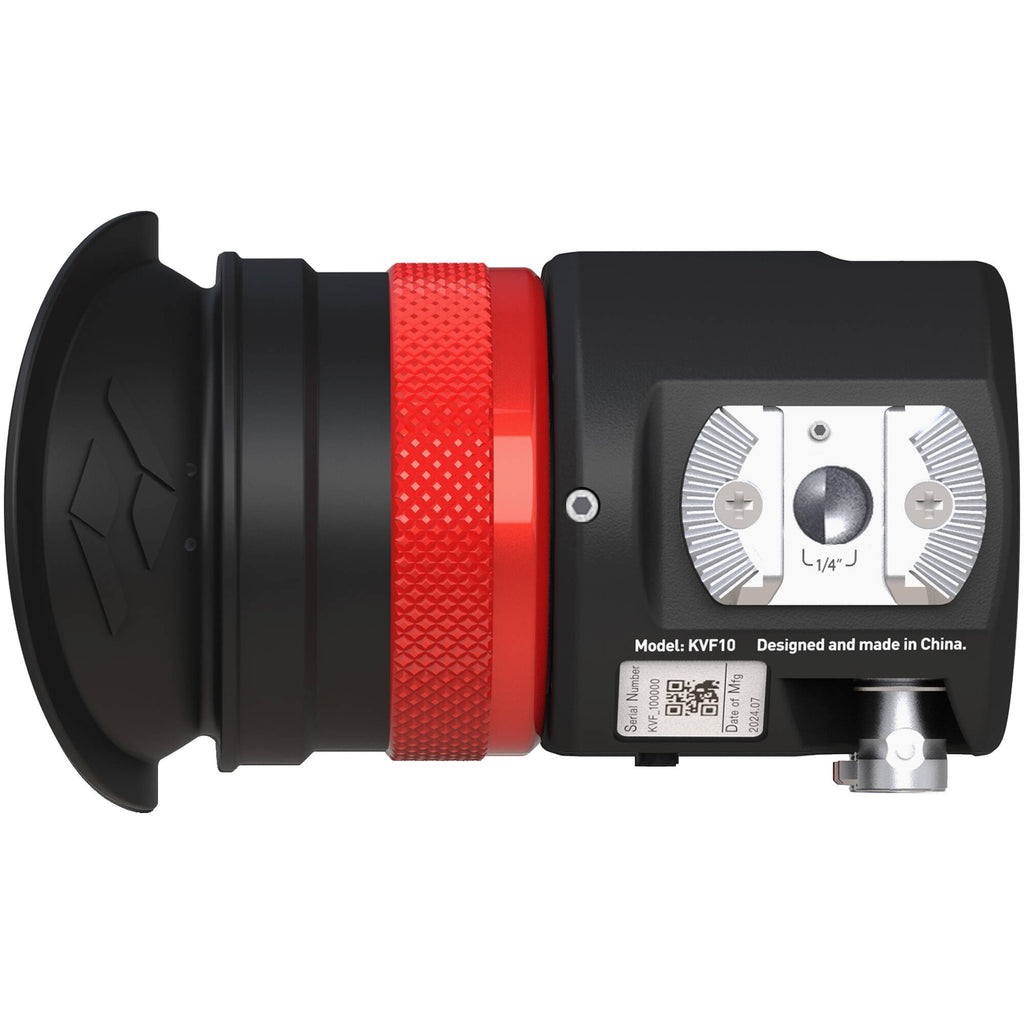

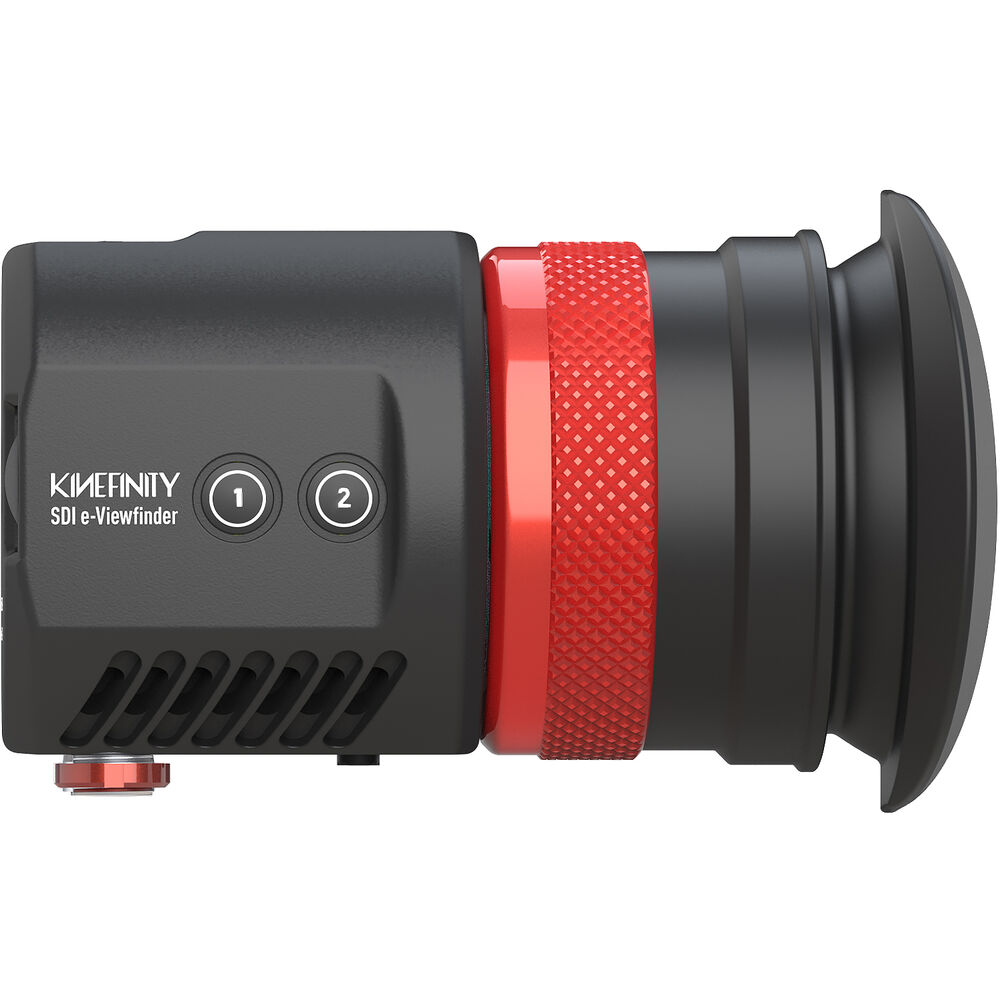

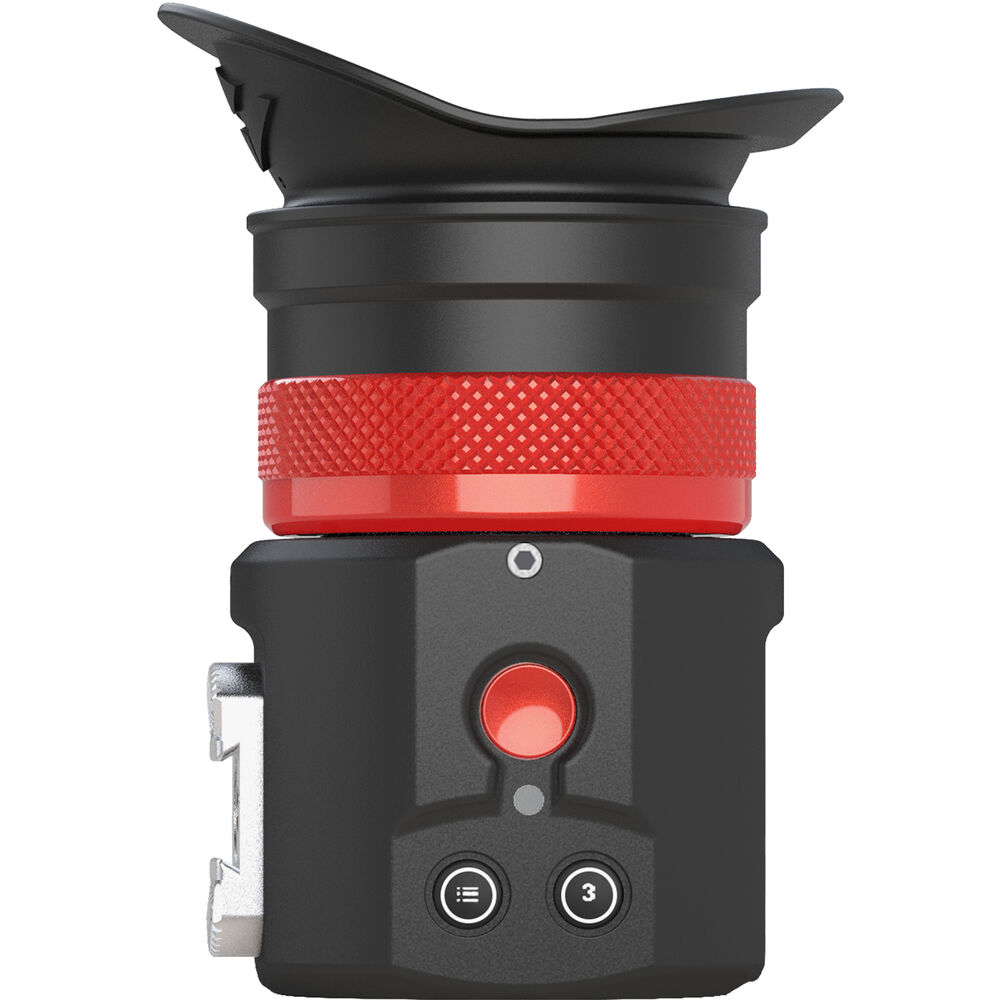

Kinefinity EAGLE SDI e-Viewfinder (Black)
Compatible with All Cine Cameras
Ultralight and streamlined, the black
EAGLE SDI e-Viewfinder from
Kinefinity features an SDI video input compatible with cine-style cameras. It features a 0.7" 1080p Micro-OLED screen, zero-delay viewing, multiple imaging tools, and 10-bit processing for optimal image output.
3G/HD-SDI Support
The EAGLE SDI e-Viewfinder's BNC input supports 3G- and HD-SDI video signals, offering compatibility with cine-style cameras in 1080p and 1080i at frame rates ranging from 23.97 to 60 fps.
Micro-OLED Screen
The 1080p resolution micro-OLED screen produces exceptional imagery using 10-bit color and 10,000:1 contrast in a 16:9 aspect ratio.
Imaging Tools
Multiple imaging tools include focus peaking, magnification, waveform, histogram, false color, anamorphic de-squeeze, frame markers, overlay clear, and image flip and rotation.
Adjustable Diopter
The adjustable diopter has a range of -6 to +2, providing eyeglass users with correct eyesight correction.
Kinefinity Mini Mount for EAGLE SDI e-Viewfinder
The Mini Mount for EAGLE SDI e-Viewfinder from Kinefinity mounts easily on your camera using a standard 1/4"-20 screw. This aluminum alloy support attaches to the EAGLE EVF via its quick-lock system. It features 360° rotation for optimal viewing and a red, knurled thumbscrew.
Compatibility
Kinefinity EAGLE SDI e-Viewfinder
Kinefinity D-Tap Cable for EAGLE SDI e-Viewfinder (15.7")
The 15.7" D-Tap Cable for EAGLE SDI e-Viewfinder from Kinefinity combines two cables in one with a sheath that binds them neatly together. Designed to provide both power and video signals to the EAGLE SDI EVF, this cable has BNC and 5-pin LEMO-type connectors on one end and BNC and D-Tap connectors on the other, with all connectors having right angles.
Compatibility
Kinefinity EAGLE SDI e-Viewfinder
Items Included
- Kinefinity EAGLE SDI e-Viewfinder (Black)
- Kinefinity D-Tap Cable for EAGLE SDI e-Viewfinder (15.7")
- Limited 1-Year Manufacturer Warranty
- Kinefinity Mini Mount for EAGLE SDI e-Viewfinder
- Limited 1-Year Manufacturer Warranty
- Kinefinity D-Tap Cable for EAGLE SDI e-Viewfinder (15.7")
- Limited 1-Year Manufacturer Warranty
- Eyecushion
Additional Resources
No additional resources available

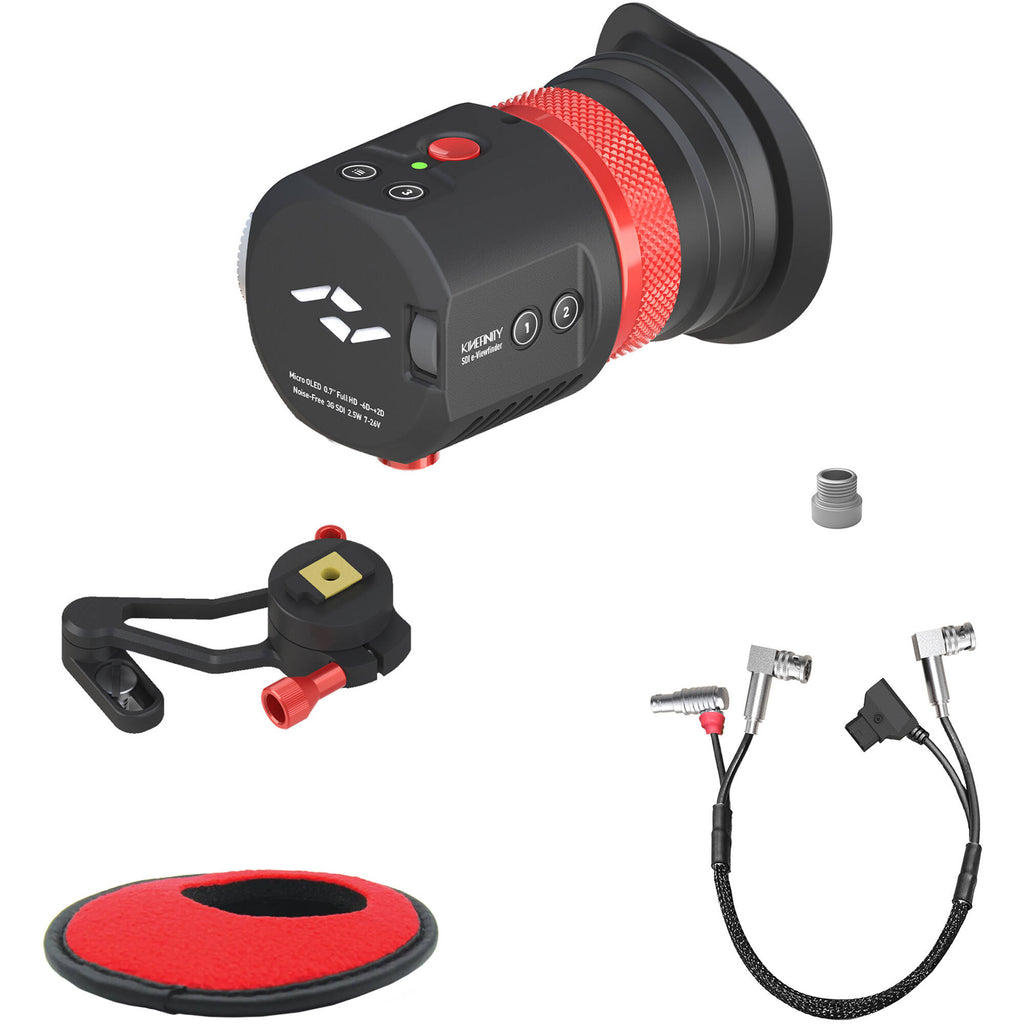

Kit Contains:
![Kinefinity EAGLE SDI e-Viewfinder (Black)]()
![Kinefinity Mini Mount for EAGLE SDI e-Viewfinder]()
![Kinefinity D-Tap Cable for EAGLE SDI e-Viewfinder (15.7")]()
Kinefinity EAGLE SDI e-Viewfinder (Black)
Key Specs
| Panel Type |
Micro-OLED
|
| Screen Resolution |
1920 x 1080
|
| Diopter Correction |
-6.0 to +2.0
|
| Inputs/Outputs |
1x BNC (3G-SDI) Video Input
1x LEMO 5-Pin Power Input |
Display
| Panel Type |
Micro-OLED
|
| Display Size |
0.7" / 1.8 cm
|
| Screen Resolution |
1920 x 1080
|
| Aspect Ratio |
19:9
|
| Contrast Ratio |
10,000:1
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Image Controls |
False Color, Focus Peaking, Histogram, Image Flip, Image Rotate, RGB Parade, Screen Markers, Waveform, Zebra
|
Optics
| Diopter Correction |
-6.0 to +2.0
|
| Field of View |
33°
|
Inputs / Outputs
| Inputs/Outputs |
1x BNC (3G-SDI) Video Input
1x LEMO 5-Pin Power Input |
| Video Format |
SDI (10-Bit)
1080p: 60/59.94/50/47.95/30/29.97/25/24/23.98 1080PsF: 29.97/25/24/23.98 1080i: 60/59.94 |
| Power Consumption |
5 W
|
General
| Tripod/Accessory Mounting |
Right
Rosette with 1/4"-20 Female |
| Material of Construction |
Aluminum, Glass, Steel
|
| Dimensions |
4.1 x 2.4 x 2.3" / 105 x 62 x 58 mm
|
| Weight |
12.28 oz / 348.00 g
|
Packaging Info
| Package Weight |
1.41 lb
|
| Box Dimensions (LxWxH) |
5.4 x 4.75 x 4.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 209734.7 |
| 3-5 | ₹ 207594.55 |
| 5-10 | ₹ 203314.25 |
| 10+ | ₹ 199033.95 |
Bulk discount will be automatically applied during checkout based on quantity.
