Description
Turtle AV TAV-CHAZYWPUS-TX Overview

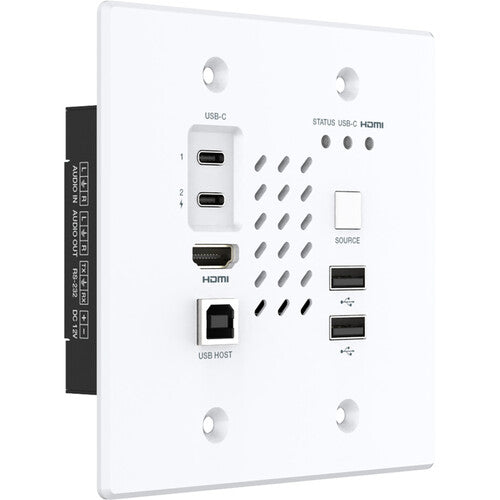

The CHAZY 4K Wall Plate TX from Turtle AV is a Dante AV-A and JPEG 2000 encoder that fits inside a standard 2-gang wall box. This 2-gang Decora-style wall plate features a variety of input and output ports, allowing seamless transmission of 2160p60 Hz 4:4:4 HDR video from laptops or tablets via USB-C and from video sources via the HDMI 2.0b input. It includes the Dante AV-A license, which also has a 2 x 2 Dante audio license. PoE powered and supporting a wide range of audio formats, including 7.1 Dolby Atomos, the transmission wall plate features advanced capabilities like KVM, video wall configurations up to 9 x 9, hardware scaling, EDID management, HDCP 2.2, and true multicast support.
- 2-gang Decora-style wall plate
- Dante AV-A and JPEG 2000
- Dante AV-A license included with 2 x 2 Dante audio
- 2160p60 Hz 4:4:4 HDR
- USB-C video input
- PoE and 12 VDC
- HDCP 2.2 and EDID management
- 7.1-ch Dolby Atmos Audio
- KVM and video wall up to 9 x 9
- Dual network ports
- TAA compliant
Items Included
- Turtle AV CHAZY 4K Wall Plate TX
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Turtle AV TAV-CHAZYWPUS-TX Specs
| USB I/O |
2 x USB-C Integrated Male Input
|
| Video I/O |
1x HDMI Input
1x HDMI Output |
| Audio I/O |
1x Block 3-Pin Input
1x Block 3-Pin Output 1x RCA S/PDIF Output |
| Wireless |
Yes
|
| Power Source |
AC Input (Included), PoE
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC at 2.5 A
|
| Power Consumption |
7.08 W
|
| Mounting |
Front: 4x Through Holes
|
| Color |
White
|
| Material of Construction |
Metal
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Weight |
12.3 oz / 350 g
|
| Package Weight |
1.465 lb
|
| Box Dimensions (LxWxH) |
6.1 x 5.7 x 3.8"
|
