Description

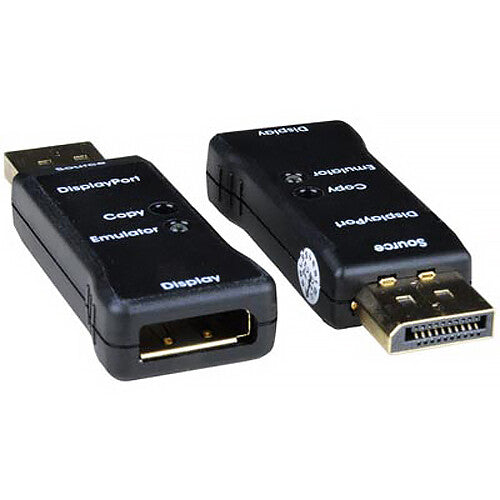

Network Technologies DP8K-EDID-EMLTR Overview
This DisplayPort 1.4 EDID Emulator from Network Technologies is designed to store and reproduce EDID information to resolve video communication and handshaking issues between a DisplayPort source and its target display. Boasting resolutions up to 8K30, the emulator provides EDID signals without interruption to ensure that signal is never lost when employing the use of AV and KVM splitters and extenders. The device may also be used in lieu of a monitor, emulating a DisplayPort-compatible display, to maintain active operation of a graphics card to ensure uninterrupted remote access over IP.
Additional Details
- Headless operation
- Video passthrough
- Emulates a DisplayPort display (sync device) by providing Hot Plug Detect and EDID to the DisplayPort source device
- Supports 8K resolutions to 7680 x 4320 at 30 fps, 4:4:4; 3840 x 2160 at 60 fps, 4:4:4; 3440 x 1440 (UWQHD), 2560 x 1600 (WQXGA), 2560 x 1440 (WQHD), and 1080p
- HDCP 2.2 compliant.
- Supports Learning and Emulation modes
- Pre-programmed with many standard resolutions with native set to 1080p
- LED indicator provides signal status information
- Compact design for easy installation and operation
- No power supply needed as unit is powered by video source
Items Included
- Network Technologies DisplayPort 1.4 EDID Emulator
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies DP8K-EDID-EMLTR Specs
General
| Supported Resolutions |
7680 x 4320 at 30 fps, 4K x 2K to 3840 x 2160 at 60 fps, 3440 x 1440 (UWQHD), 2560 x 1600 (WQXGA), 2560 x 1440 (WQHD), 1080p
|
| HDCD Decoding |
HDCP 2.2
|
Inputs/Outputs
| Video I/O |
1x DisplayPort 1.4 Input
1x DisplayPort 1.4 Output |
Power
| Power Source |
Proprietary Interface
|
Physical
| Color |
Black
|
| Certifications |
CE, FCC, RoHS
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 5 to 85% Humidity
|
| Storage Conditions |
-4 to 158?F / -20 to 70?C at 5 to 85% Humidity
|
| Dimensions |
2.5 x 1 x 0.5" / 64 x 25 x 12 mm
|
Packaging Info
| Package Weight |
0.04 lb
|
| Box Dimensions (LxWxH) |
4.9 x 4.75 x 0.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
