Description
MSolutions MS-210WP Overview

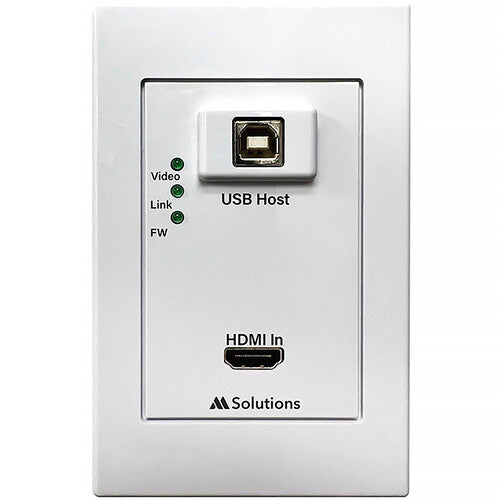

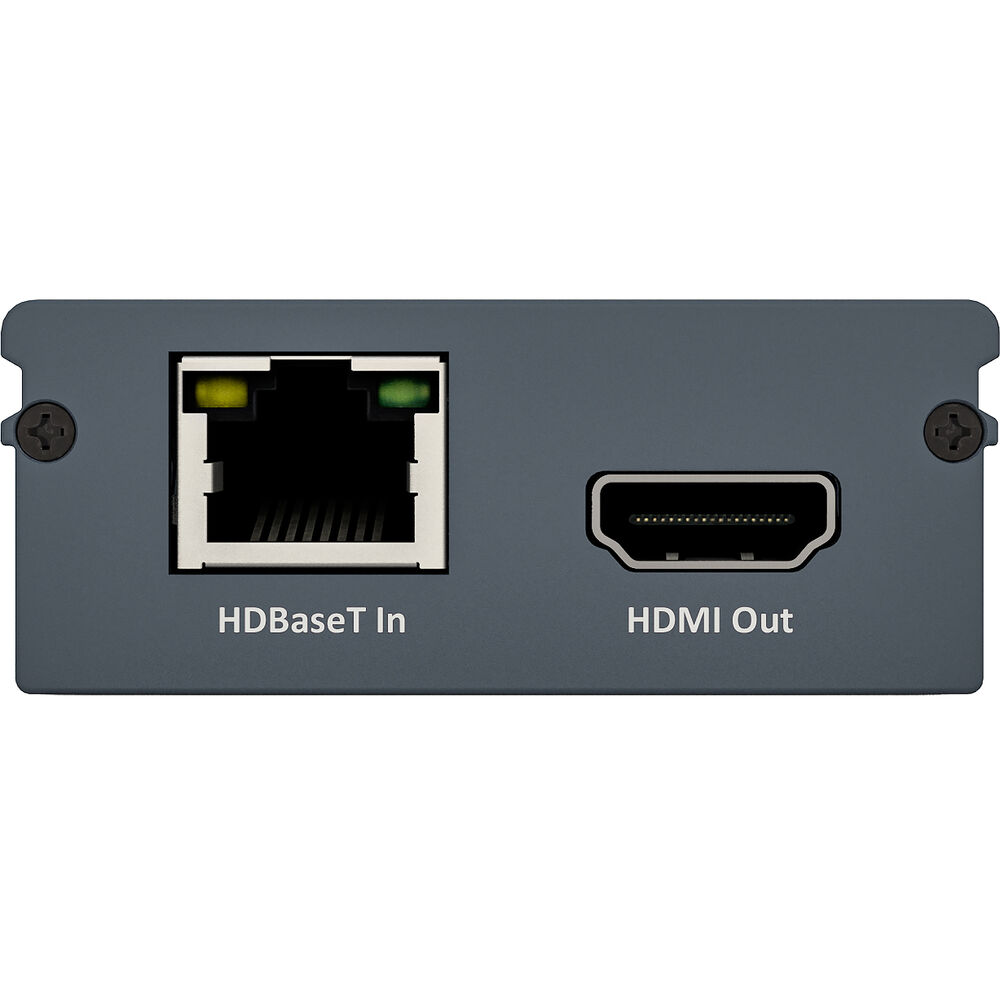

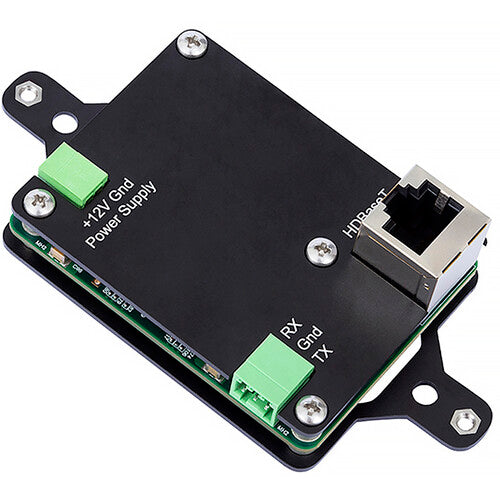

The MS-210WP HDBaseT Wall Plate Extender Set from MSolutions features an HDBaseT receiver unit and a US one-gang, decora-style wall-plate transmitter unit to extend your video signals. The set can transmit DCI 4K up to 131' and 1080p up to 230' via a single Cat cable. The transmitter unit features one HDMI input and one input with HDBaseT. The receiver unit features two USB outputs and one RS-232 port serial pass-through.
Uncompressed extension of HDMI at resolutions up to 4K60 4:2:0/4K3 4:4:4 using HDBaseT technology
Over a single Cat cable, 4K signal up to 131' (including HDR formats supported under 10.2 Gb/s) and 1080p or lower video resolutions up to 230'
Supports HDMI pass-through of all known HDMI audio formats, including Dolby Atmos/DTS:X
Allows EDID manipulation (needs factory preconfiguring)
Power to the wall plate from the receiver side for easy connectivity
HDCP 2.2 compliant
CEC (Consumer Electronics Control) pass-through
Bidirectional RS-232 serial pass-through
Flexible USB extension for USB 2.0 cameras, touchscreens, smart boards, hard drives, game controllers, USB audio devices, printers, scanners, and HIDs (mouse or keyboard)
One-gang enclosure for Decora-style wall plate openings
Two USB 2.0 channels for KVM connectivity of USB devices across the link with a max 200 Mb/s data rate pass-through
Items Included
- MSolutions MS-210WP HDBaseT Wall Plate Extender Set
- Surface-Mounting Bracket
- 2 x 3-Pin Phoenix Connector Block
- Power Supply with US/UK/EU Clips (12 VDC, 2A)
- Receiver
- Transmitter
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
MSolutions MS-210WP Specs
Inputs/Outputs
| USB I/O |
1 x USB-A Female Input/Output
1 x USB-B Female Input/Output |
| Video I/O |
1x HDMI Output
1x HDMI Input 1x RJ45 Output 1x RJ45 Input |
| Audio I/O |
2x Block 3-Pin Output
|
Power
| Power Source |
AC Adapter with Power Brick
|
| DC Input Power |
12 VDC at 2 A
|
| Power Consumption |
8 W
|
Physical
| Mounting |
Top: 1x Surface
|
| Certifications |
CEC, HDCP
|
| Operating Conditions |
32 to 119?F / 0 to 48?C up to 80% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Dimensions |
2.7 x 2.1 x 1.3" / 69.8 x 52.8 x 33.7 mm (TX Unit)
5.2 x 3.3 x 0.27" / 130.9 x 83.9 x 6.86 mm (Panel) 3.3 x 2.4 x 1" / 84 x 60 x 25 mm (RX Unit) |
| Weight |
3.5 oz / 100 g
|
Packaging Info
| Package Weight |
1.22 lb
|
| Box Dimensions (LxWxH) |
6.6 x 5.9 x 3.4"
|
