Description
Laird Digital Cinema HDBNC4855-RA Overview

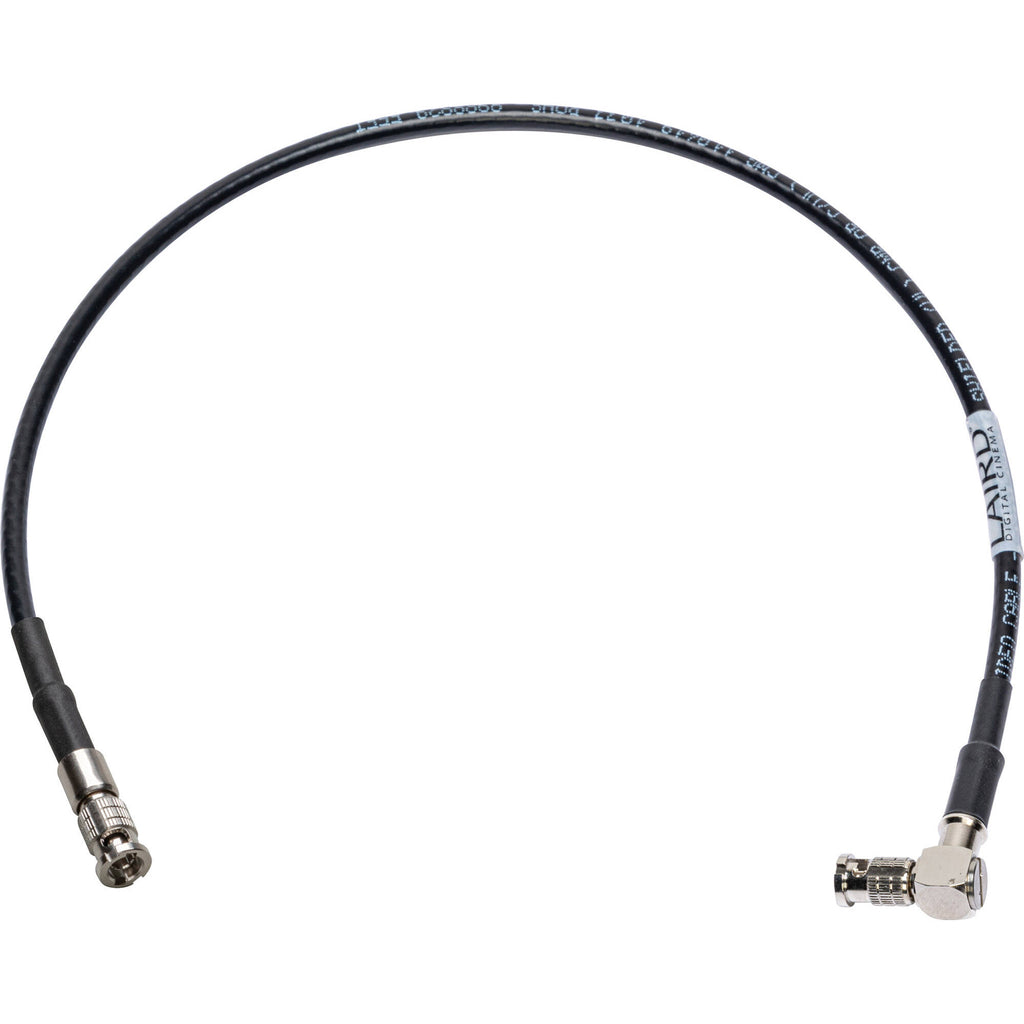

The 3' High-Density HD-BNC Male to HD-BNC Male 12G-SDI Cable from Laird Digital Cinema is designed for transmitting uncompressed 12G-SDI UHD 4K video signals in RF performance-critical applications. It features return loss and attenuation improvements, which make it highly suitable for high-density patch bays, routers, and signal distribution systems. This cable features a straight low-profile coax HD-BNC (micro BNC) male connector on one end and a right-angle micro HD-BNC connector on the other.
12G-SDI 4K UHD
Transmits uncompressed 12G-SDI 4K UHD video signals up to 149'
HD-BNC Male Connectors
HD-BNC male connectors on each end, one straight and one right angled
Silver-Plated Copper
A braided design and silver-plated copper conductor plus a polyethylene formula contribute to improved return loss and attenuation
Low Return Loss
15 dB return loss from 4.5 to 12 GHz
SMPTE Compatible
Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards
Items Included
- Laird Digital Cinema 4855R High-Density Right-Angle HD-BNC Male to HD-BNC Male 12G HD-SDI Patch Cable (3')
- Limited 1-Month Manufacturer Warranty
Additional Resources
No additional resources available
Laird Digital Cinema HDBNC4855-RA Specs
| Interface |
12G-SDI
|
| Connector 1 |
1x Micro-BNC Male
|
| Connector 2 |
1x Micro-BNC Male
|
| Coaxial Type |
RG-59 (4855R)
|
| Cable Length |
3' / 0.9 m
|
| Maximum Resolution Support |
7680 x 4320 at 30 Hz
|
| Materials |
Conductor: Silver-Plated Copper
Jacket: Polyvinyl Chloride (PVC) |
| Color |
Black
|
| Shielded |
Yes
|
| Wire Gauge |
23 AWG
|
Packaging Info
| Package Weight |
0.135 lb
|
| Box Dimensions (LxWxH) |
3.9 x 1.05 x 1.05"
|
