Description
Laird Digital Cinema HDBNC4855-MM Overview
- 1Description
- 212G-SDI 4K UHD
- 3HD-BNC Male Connectors
- 4Silver-Plated Copper
- 5Low Return Loss
- 6SMPTE Compatible

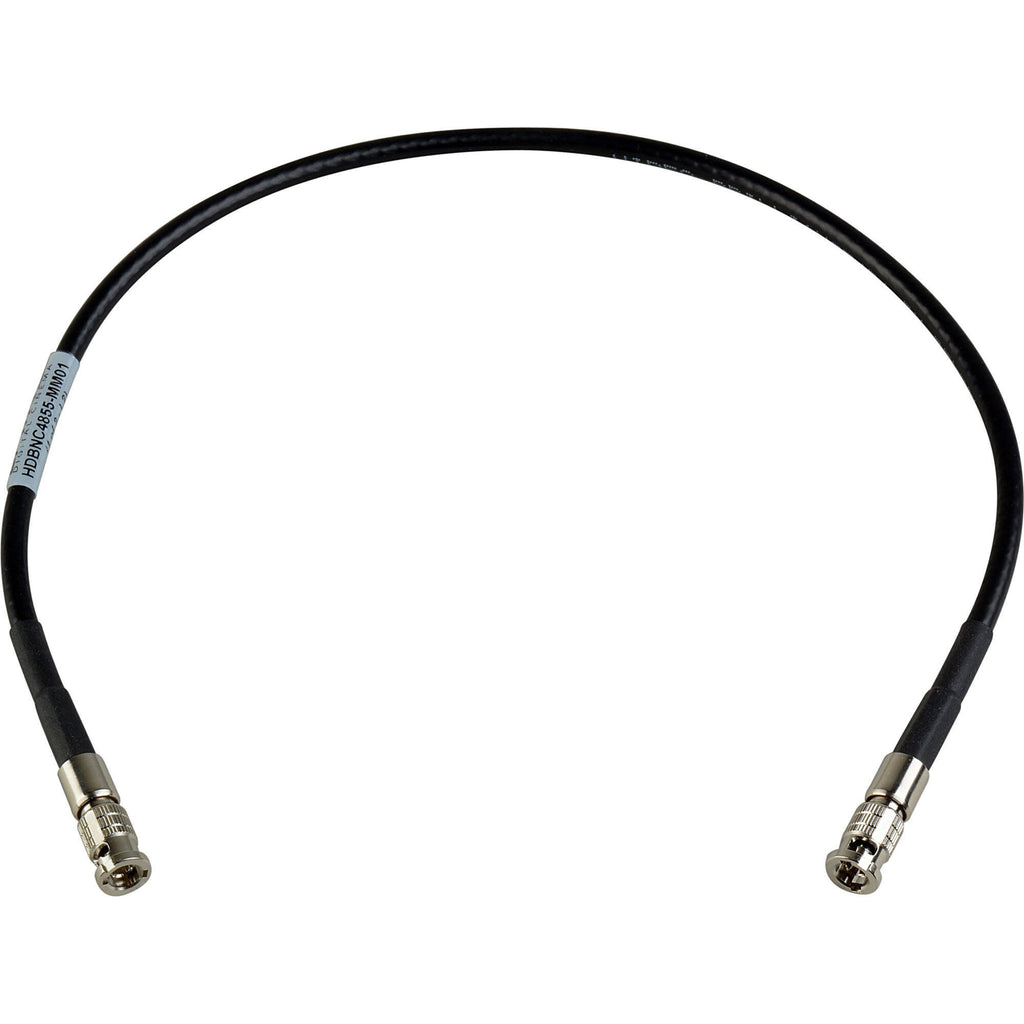

The 18" High-Density HD-BNC Male to BNC Male 12G-SDI Cable from Laird Digital Cinema is designed for transmitting uncompressed 12G-SDI UHD 4K video signals in RF performance-critical applications. It features return loss and attenuation improvements, which make it highly suitable for high-density patch bays, routers, and signal distribution systems. This cable features a straight low-profile coax HD-BNC (micro BNC) male connector on each end.
12G-SDI 4K UHD
Transmits uncompressed 12G-SDI 4K UHD video signals up to 149'
HD-BNC Male Connectors
HD-BNC male connectors on each end, both straight
Silver-Plated Copper
A braided design and silver-plated copper conductor plus a polyethylene formula contribute to improved return loss and attenuation
Low Return Loss
15 dB return loss from 4.5 to 12 GHz
SMPTE Compatible
Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards
In the Box
- Laird Digital Cinema 4855R High-Density HD-BNC Male to HD-BNC Male 12G HD-SDI Patch Cable (18")
- Limited 1-Month Manufacturer Warranty
Table of Contents
- Description
- 12G-SDI 4K UHD
- HD-BNC Male Connectors
- Silver-Plated Copper
- Low Return Loss
- SMPTE Compatible
Laird Digital Cinema HDBNC4855-MM Specs
General
| Connector 1 |
1 x Micro-BNC
|
| Connector 2 |
1 x Micro-BNC
|
| Cable Length |
18" / 45.7 cm
|
| Signal Type |
12G-SDI
|
| SMPTE Standards |
SMPTE 2081-1/2082-1
|
| Coaxial Type |
RG-59 (4855R)
|
| Conductor Material |
Silver-Plated Copper
|
| Insulation Type |
Polyvinyl Chloride (PVC)
|
| Jacket Type |
Polyvinyl Chloride (PVC)
|
| Shielding |
Tinned Copper Braid
|
| Wire Gauge |
23 AWG
|
| Weight |
1.33 oz / 38 g
|
Electrical
| Capacitance |
16.3 pF/ft
|
Packaging Info
| Package Weight |
0.06 lb
|
| Box Dimensions (LxWxH) |
4.75 x 3.8 x 1"
|
