Description

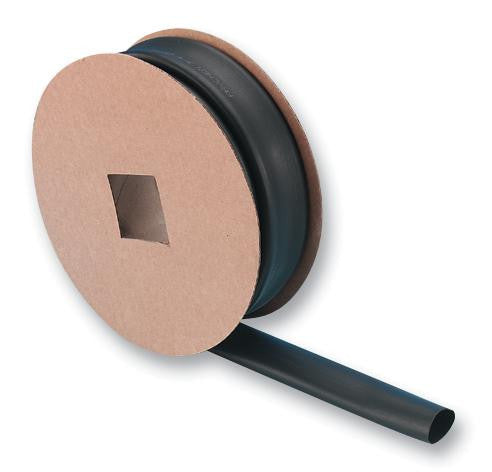

The DR-25 series from TE Connectivity general purpose, heat shrinkable, flexible, chemical and abrasion resistant tubing. Designed for optimum high temperature fluid resistance and long term heat resistance, suitable as a jacketing material for military ground vehicle cables, harnesses and motorsport cable harnesses.
- Flexible, black elastomer tubing
- Resistant to aviation and diesel fuels, hydraulic fluids and lubricating oils
- Ideal for use where a rugged, fluid resistant tube is necessary
- Protects against abrasion and mechanical damage
- Available in wide range of sizes
- 2:1 shrink ratio
- BS 3G-198 Part 3 10A and Def. Stan. 59-97 Issue 3 Type 6B approved
- Compliant to MIL-DTL-23053/16 (except 1/8 and 3/16) & VG 95343 Part 5 Type D standards
- Minimum shrink temperature 150°C
- Operating temperature range -75°C to +150°C
Applications
Industrial
Product details
| Length - Metric | 10m |
| Shrink Tubing / Boot Material | Elastomer |
| Shrink Ratio | 2:1 |
| I.D. Recovered Max - Imperial | 0.062" |
| I.D. Supplied - Imperial | 0.125" |
| Length - Imperial | 32.8ft |
| I.D. Supplied - Metric | 3.2mm |
| Product Range | DR-25 |
| I.D. Recovered Max - Metric | 1.6mm |
| Shrink Tubing / Boot Colour | Black |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | DR-25-1/8-0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Safety Data Sheet EN | |
