Description

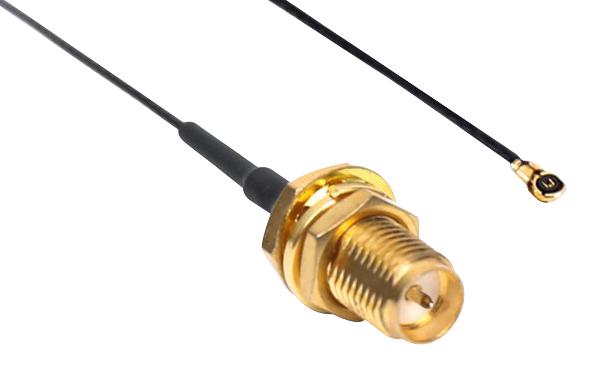

W9037BD0200 is a MHF4 - RP SMA female jumper cable assembly.
- Attenuation is 1dB at 1GHz, attenuation is 3.5dB at 6GHz
- Connector type is I-PEX MHF4 or equivalent + RP SMA female with spring washer
- Cable type is Φ0.81mm coaxial cable, black colour
- 216mm overall length
- 200mm cable length
- Operating temperature range from -40 to +85°C
- Frequency is 0 to 8GHz, nominal impedance is 50±2ohm
- Maximum operating voltage of 1000V
Product details
| Connector to Connector | SMA RP Bulkhead Jack to 90° MHF4 Plug |
| Coaxial Cable Type | 0.81mm |
| Impedance | 50ohm |
| Cable Length - Imperial | 7.9" |
| Cable Length - Metric | 200mm |
| Jacket Colour | Black |
| Product Range | - |
Other details
| Brand | PULSE ELECTRONICS |
| Part Number | W9037BD0200 |
| Quantity | Each |
| Technical Data Sheet EN |  |
