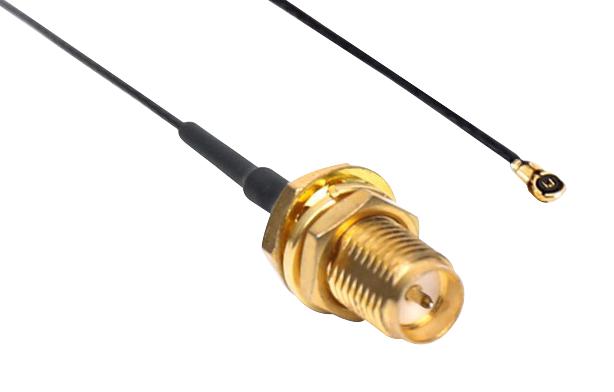

W9017BD0100 is a MHF4 - SMA female jumper cable assembly. Applications include SMA female to MHF-4 jumper cable, RF connections for radios and antennas, connection from radio to external antennas.
- Low loss mini coax cable
- Outer diameter is 0.81mm, black colour
- Connector type is I-PEX MHF4 or equivalent + SMA female with spring washer
- Cable type is Φ0.81mm coaxial cable
- 116mm overall length
- 100mm cable length
- Operating temperature range from -40 to +85°C
- Frequency is 0 to 7.1GHz, nominal impedance is 50±2ohm
- Maximum operating voltage of 1000V
Product details
| Connector to Connector |
SMA Bulkhead Jack to 90° MHF4 Plug |
| Coaxial Cable Type |
0.81mm Mini |
| Impedance |
50ohm |
| Cable Length - Imperial |
3.9" |
| Cable Length - Metric |
100mm |
| Jacket Colour |
Black |
| Product Range |
- |
Other details
| Brand |
PULSE ELECTRONICS |
| Part Number |
W9017BD0100 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
