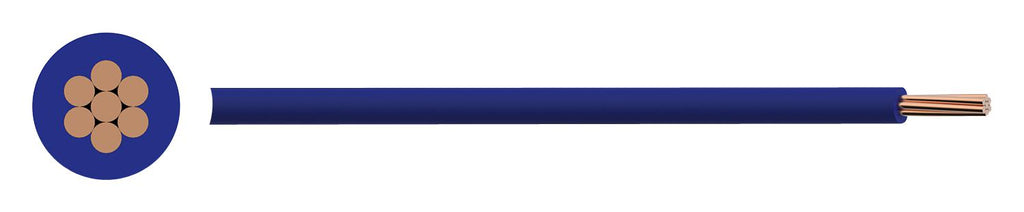

The PP-6491X-2.50MMBLU from Pro Power is a blue colour single wire. It is suitable for power, lighting circuits and building wiring. The cable is intended for use in semi flush exposed conduits and embedded conduits as well as in closed installation ducts and is ideal for the internal wiring of appliances. This single wire is approved by BS EN 50525-2-31 (previously BS 6004) BASEC, BS EN/IEC 60332-1-2 cable standards.
- Cut to length - continuous in 1 m multiples
- Nominal cross sectional area is 2.5mm² and nominal thickness of insulation is 0.8mm
- Nominal overall diameter is 3.6mm and nominal weight is 32Kg/Km
- Copper conductor to BS EN 60228 (previously BS 6360)
- PVC (Polyvinyl Chloride) insulation type TI1 according to BS EN 50363
- Voltage rating (Uo/U) is 450/750V
- Temperature rating range from -15°C to +70°C
- Minimum bending radius is up to 10mm² (3 x overall diameter)
- Pro Power products are rated 4.5 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Product details
| Jacket Material |
PVC |
| Jacket Colour |
Blue |
| Wire Gauge |
- |
| Conductor Area CSA |
2.5mm² |
| Reel Length (Imperial) |
- |
| Reel Length (Metric) |
- |
| No. of Max Strands x Strand Size |
7 x 0.67mm |
| Voltage Rating |
750V |
| Conductor Material |
Copper |
| External Diameter |
3.6mm |
| Approval Specification |
BS EN 50525-2-31, BS EN/IEC 60332-1-2 |
| Product Range |
Pro Power 6491X / H07V-R |
Other details
| Brand |
PRO POWER |
| Part Number |
PP-6491X-2.50MMBLU |
| Quantity |
1 Metre |
| Technical Data Sheet EN |
 |
Price For 1 Metre All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
