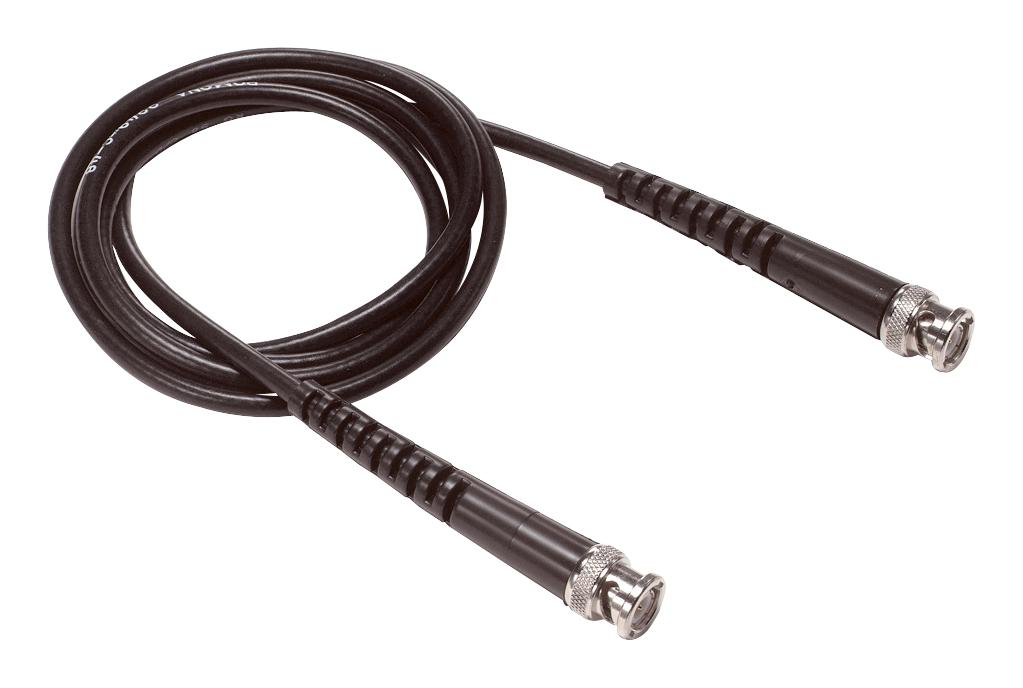

The 2249-C-72 is a 72-inch RG58C/U RF/Coaxial Cable Assembly with BNC male to BNC male connectors, PE insulation, tinned copper wire type, polyvinyl chloride non-contaminating (PVCNC) jacket and tinned copper braid shield. The moulded strain relief is directly bonded to the cable jacket for superior strength and durability. PTFE insulation and nickel tarnish-resistant outer shells used in the BNC connector provide long life and reliability. Gold-plated brass center contacts assure the most noise free connection possible. The connectors and cable is impedance matched.
- The molded strain relief is directly bonded to the cable jacket for superior strength and durability
- PTFE insulation and nickel tarnish resistant outer shells used in the BNC connector provide long life and reliability
- Gold-plated center contacts assure the most noise free connection possible
- The connectors and cable are impedance matched
- 50R Impedance
- 32.2pf Capacitance per 1ft/0.304m
- 0.44dB Power loss per 100ft at 1MHz
- 19x33 Center strands x AWG
- 20AWG Wire size
- -40 to +85°C Temperature range
Applications
Test & Measurement, RF Communications, Communications & Networking, Electronics Design, Electronics Service, Computer Hardware, Instrumentation, Instrumentation
Product details
| Connector Type A |
BNC Straight Plug |
| Connector Type B |
BNC Straight Plug |
| Coaxial Cable Type |
RG58C/U |
| Impedance |
50ohm |
| Cable Length - Imperial |
6ft |
| Cable Length - Metric |
1.83m |
| Jacket Colour |
- |
| Product Range |
- |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
POMONA |
| Part Number |
2249-C-72 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
