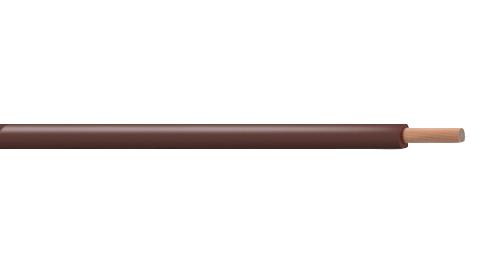

The PP000464 is a 100m Flexible Wire with class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360) and PVC type TI1 insulation according to BS EN 50363. It is designed for use in the switch control, relay and instrumentation panels of power switch gear and for purposes such as internal connectors in rectifier equipment and controllers.
- CPR: Eca
- -30 to 70°C Fixed temperature range
- Pro Power products are rated 4.5 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial, Motor Drive & Control
Product details
| Jacket Material |
PVC |
| Jacket Colour |
Brown |
| Wire Gauge |
- |
| Conductor Area CSA |
0.5mm² |
| Reel Length (Imperial) |
328ft |
| Reel Length (Metric) |
100m |
| Operating Temperature Max |
70°C |
| No. of Max Strands x Strand Size |
16 x 0.19mm |
| Voltage Rating |
500V |
| Conductor Material |
Copper |
| External Diameter |
2.2mm |
| Approval Specification |
- |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
PP000464 |
| Quantity |
Reel of 100 |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
