Description

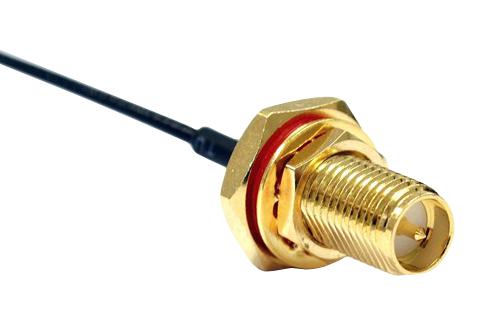

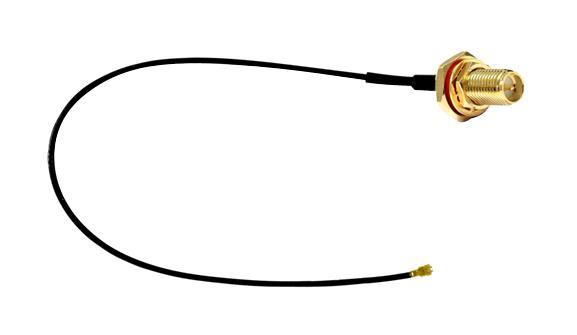

The MP005942 is a 300mm RF Coaxial Cable Assembly, IP67 waterproof RP-SMA bulkhead jack to a IPEX (MHF1) plug. It features a 1.37mm low-loss cable. Ideal for outdoor RF communications applications. Utilizing 1.37mm low-loss cable. Ideal for outdoor RF communications applications
- 1.37mm low-loss micro coaxial cable
- Impedance: 50 R
- Frequency range: DC to 6 GHz
- Working voltage: 60Vrms max.
- Dielectric withstanding voltage: 200Vrms max.
- Insulator resistance: 500MR min.
- VSWR: 1.65: 1 max.
- Insertion loss: -1.95dB max.
- Sheath colour black
- Temperature range-20-+70 degC
- IP67
RF Communications
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | MULTICOMP PRO |
| Part Number | MP005942 |
| Quantity | Each |
| Technical Data Sheet EN |  |
